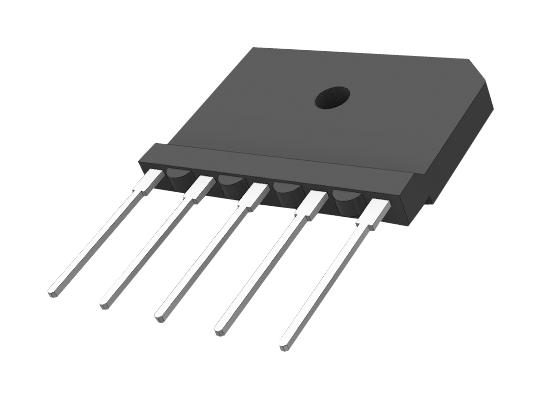

MULTICOMP PRO SGBJ3516 Three Phase Bridge Rectifier
This high-reliability glass passivated three-phase bridge rectifier is designed for power supply of DC equipment, input rectifier for PWM converters, and DC motor applications. It features low forward voltage drop, insulation voltage of 2500V, small size, light weight, high thermal conductivity, and a maximum voltage rating of 1600V. Suitable for resistive or inductive loads, with a peak surge current of 660A. Operating temperature ranges from -55°C to +150°C, making it ideal for industrial and electronic power conversion systems.
MULTICOMP PRO SGBJ3516 Three Phase Bridge Rectifier Specifications:
- Peak Repetitive Voltage VRRM: 800V, 1000V, 1200V, 1600V
- Peak Non-Repetitive Reverse Voltage VersM: 900V, 1100V, 1300V, 1700V
- Maximum Average Forward Current: 35A
- Peak Forward Surge Current: 660A for 8.3ms at 60Hz
- Maximum Forward Voltage Drop: 14V at 17.5A
- Reverse Peak Current: 5pA
- Isolation Voltage from Case to Lead: 2500V
- Typical Thermal Resistance Junction to Case: 0.8°C/W
- Operating Temperature Range: -55°C to +150°C
- Storage Temperature Range: -55°C to +150°C
- Dimensions: 1.391 inches (35.3 mm) length, 0.736 inches (18.7 mm) width, 0.140 inches (3.55 mm) thickness
- Weight: 10g
- Mounting Torque: 0.8 N·m
- Material: Glass passivated silicon chip, epoxy mold
Buy the Buy Multicomp Three Phase Bridge Rectifier Part Number SGBJ3516 Online
Purchase the reliable Multicomp Series SGBJ3516 three-phase bridge rectifier online and enhance your power systems with this high-performance component. Featuring a maximum voltage rating of 1600V, low forward voltage drop, and superior thermal management, it is ideal for industrial power supplies, PWM converters, and motor control. Its compact design, lightweight construction, and high insulation voltage make installation straightforward and efficient. Trust this proven rectifier for durability and efficiency in challenging environments—order now and upgrade your electrical modules today.
Order your Multicomp Series SGBJ3516 three-phase bridge rectifier today and ensure reliable power conversion for your industrial applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO SGBJ3516?
You can click on the BUY or RFQ button to purchase SGBJ3516 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part SGBJ3516?
You can download the SGBJ3516 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of SGBJ3516?
MULTICOMP PRO
