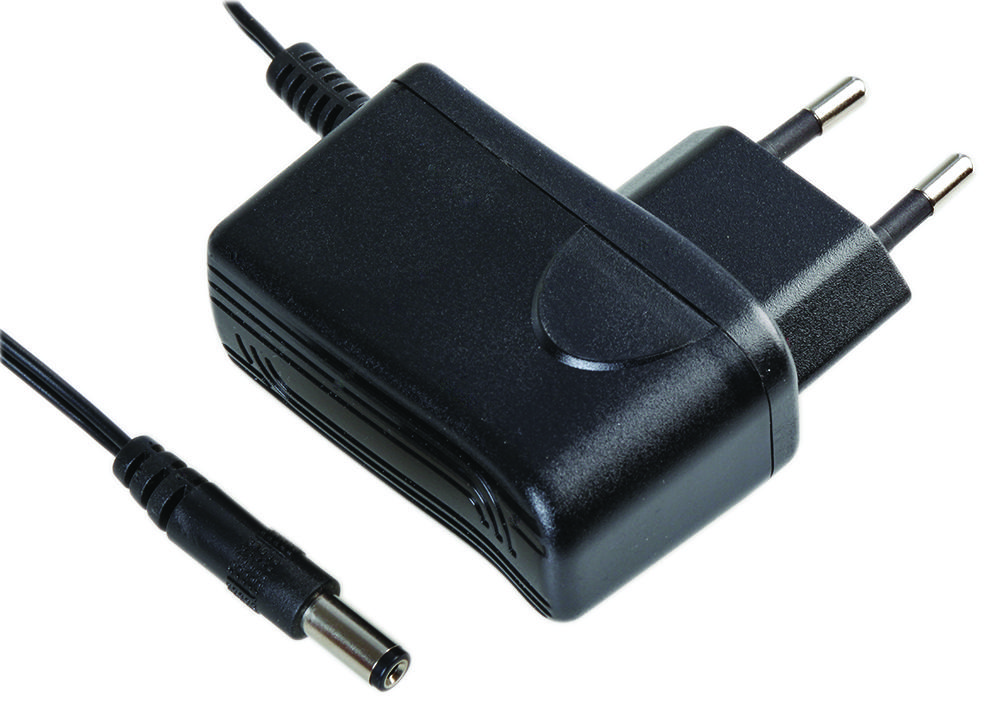

MULTICOMP-PRO MP004762 EU Wall Plug Adapter
This 6W EU Wall Plug Adapter provides a reliable 9V DC output at 0.66A, making it ideal for various electronic and low-power applications. It features a European fixed AC head, Level VI efficiency for energy savings, and meets CE and RoHS compliance standards. The compact switch-mode power supply includes over-voltage, over-load, and short-circuit protections, ensuring safe operation across a temperature range of 0°C to +40°C. Its dimensions are approximately 61.6mm long, 26mm wide, and 76.5mm high, with an weight of 70g, making it suitable for portable and stationary uses.
MULTICOMP-PRO MP004762 EU Wall Plug Adapter Specifications:
- Input Voltage Range: 100V AC to 240V AC
- Input Frequency Range: 47Hz to 63Hz
- Input Current Rated: 0.2A Max
- Output Voltage Rating: +9V
- Output Current Range: 0.66A
- Output Connection Type: 2.1mm x 5.5mm x 12mm Centre Positive Straight
- Output Voltage Regulation: 8.55-9.45V
- Line and Load Regulation: 42%
- Ripple & Noise: 300mVp-p
- Efficiency: Min 78.81%
- Over Voltage Protection: Automatic recovery after overload
- Over Load and Short-Circuit Protection: Auto recovery
- Operating Temperature: 0°C to +40°C
- Storage Temperature: -20°C to +70°C
- Operating Humidity: 10% to 95%
- Storage Humidity: 10% to 95%
- Size: approximately 61.6mm x 26mm x 76.5mm
- Weight: 70g
- Safety Standard: EN60950-1:2006+A11+A1+A12+A2
- EMI Standards: EN55022:2010/AC:2011, EN61000-3-2:2014, EN61000-3-3:2013, EN55024:2010, IEC61000-4-2:2008, IEC61000-4-3:2006/A1:2007/A2:2010, IEC61000-4-4:2012, IEC61000-4-5:2014, IEC61000-4-6:2013, IEC61000-4-8:2009, IEC61000-4-11:2004
- MTBF: 50,000 hours
Buy the Multicomp Series EU Wall Plug Adapter: MP004762
Purchase the multicomp EU Wall Plug Adapter today to experience dependable 9V DC power output with 0.66A, compact design, and comprehensive safety protections. Designed for versatility, it supports universal input voltage of 100V to 240V, making it suitable for global use. Its high efficiency exceeds 78%, ensuring minimal energy loss. Lightweight at 70g, this switch-mode power supply features overload, over-voltage, and short-circuit protections, meeting international standards like EN60950-1. Ideal for portable, industrial, or general electronic applications, it guarantees safe, stable, and efficient operation in a compact form factor.
Order your multicomp series EU Wall Plug Adapter MP004762 today and ensure reliable, energy-efficient power supply for your electronic devices.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MP004762?
You can click on the BUY or RFQ button to purchase MP004762 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MP004762?
You can download the MP004762 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MP004762?
MULTICOMP-PRO
