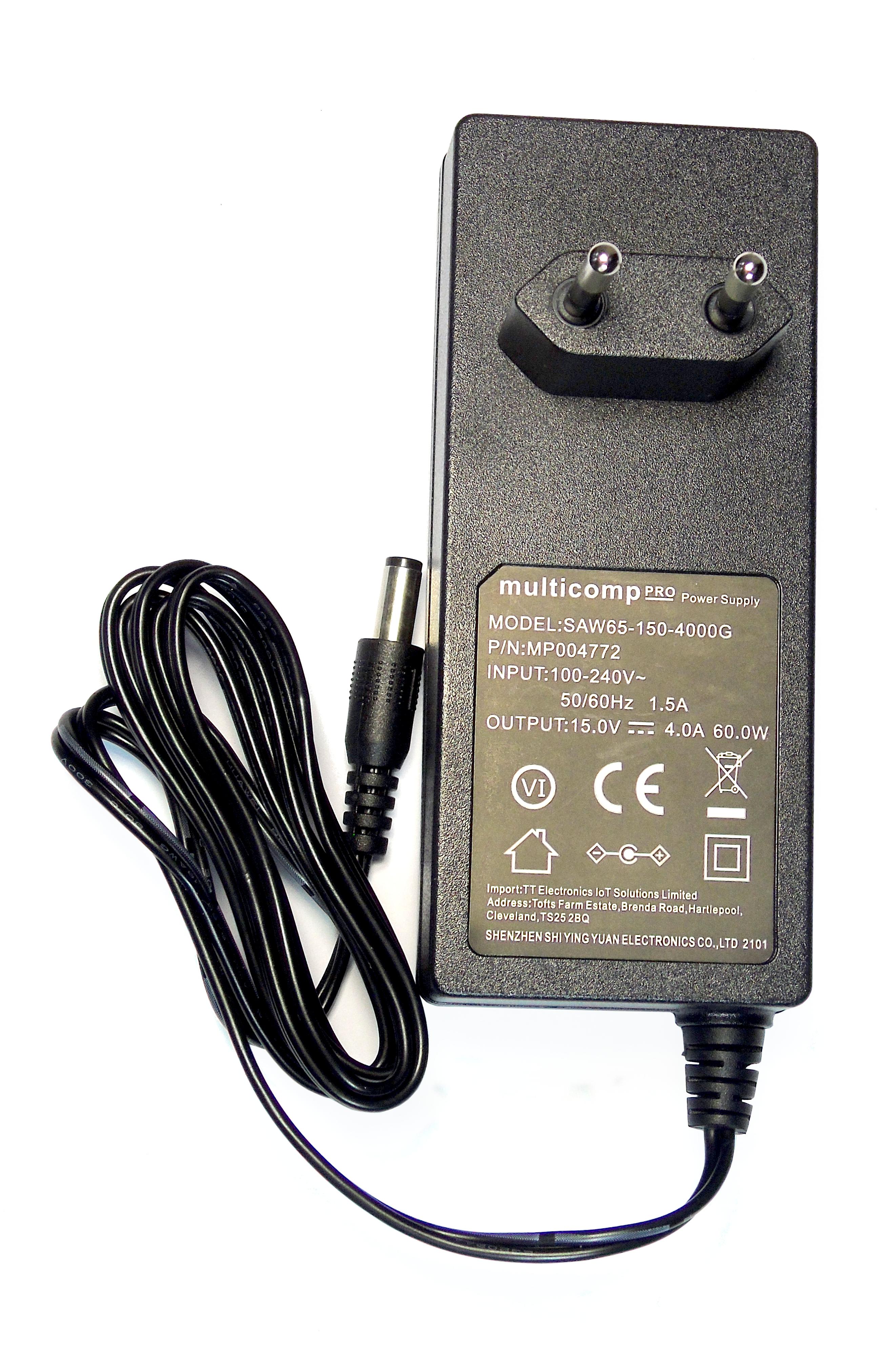

MULTICOMP PRO MP004772 Wall Plug Adapter
The 60W EU Wall Plug Adapter provides reliable 15V DC output at 4A, suitable for various general power applications. Its compact design features a European fixed AC head and Level VI efficiency, ensuring energy savings. This switch-mode power supply complies with RoHS, CE standards, and safety regulations, offering over-load, short-circuit protection, and operating temperatures from 0°C to +40°C. Its dimensions are approximately 147mm x 50.3mm x 33.5mm, weighing 280g. Ideal for industrial, commercial, and home use, this power adapter guarantees stable, efficient power delivery in diverse environments.
MULTICOMP PRO MP004772 Wall Plug Adapter Specifications:
- Input Voltage Range: 90V AC to 264V AC
- Input Frequency Range: 47Hz to 63Hz
- Input Current Rated: 1.5A max.
- Output Voltage Rating: +15V
- Output Current Range: 4A
- Output Connection Type: 2.1mm x 5.5mm x 12mm Centre Positive — Straight
- Total Output Regulation: 15%
- Line and Load Regulation: 45%
- Ripple & Noise: 200mVp-p
- Efficiency: 88% Min
- Over Load Protection: >4.8A with self-recovery
- Short Circuit Protection: Self-recovery with no damage
- Operating Temperature: 0°C to +40°C
- Storage Temperature: -20°C to +80°C
- Operating Humidity: 10% to 90%
- Storage Humidity: 5% to 95%
- Hi-Pot: 3000V AC 10mA 1min
- Leakage Current: 0.25mA max
- Safety Standard: CE (EN60950-1)
- EMI Standard: EN55032, EN61000-3-2
- MTBF: 50,000 Hours
- Size: Max 147mm x 50.3mm x 33.5mm
- Weight: 280g
- Regulator Type: Switched Mode Power Supply
Buy the Multicomprrc 60W EU Wall Plug Adapter – Reliable 15V DC Power for Industrial Applications
Order the Multicomprrc 60W EU Wall Plug Adapter today from our online store to ensure reliable power delivery with 15V DC at 4A. This energy-efficient, RoHS and CE compliant power supply features a compact design perfect for industrial, commercial, or home use. With robust protections against overload and short circuits, it guarantees safe, stable operation across diverse environments. Easy to install and highly portable, this adapter offers long-lasting durability, making it the ideal choice when dependable power conversion is needed in various applications.
Buy Multicomprrc 60W EU Wall Plug Adapter now and experience unmatched reliability and performance in your power solutions.
