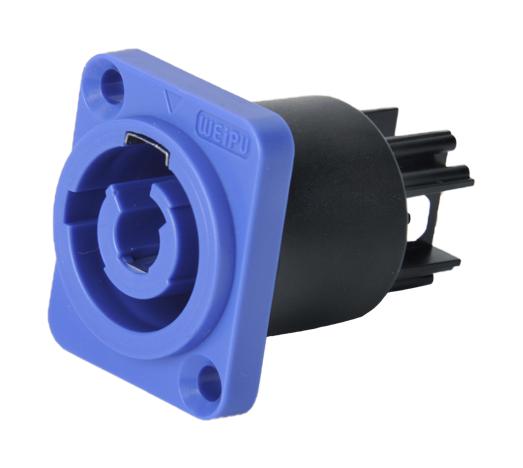

MULTICOMP PRO MP004797 Power Connector
The MP HPC series features a locking bayonet-style connector designed for secure and easy connections. It includes a sliding locking lever that allows for secure locking and one-handed disconnection. The plug has screw-style terminations and can accommodate cables with outer diameters of 9-13mm. The panel mount receptacle uses 3/16-inch flat tab terminals for simple installation. These connectors are rated IP65 for dust and water resistance, with a current rating of 20A and a voltage rating of 250VAC. Suitable for automation, process control, medical devices, security systems, testing, and industrial automation, they feature keyways to prevent cross-mating and are available in blue or grey color codes.
MULTICOMP PRO MP004797 Power Connector Specifications:
- Shell Material: Plug - Nylon PA66, Socket - Polycarbonate (PC)
- Insert Material: PPS, max temperature 260°C
- Contact Material: Brass with silver plating
- Rated Current: 20A
- Rated Voltage: 250VAC
- Test Voltage: 2500V (1 min)
- Insulation Resistance: 2000 MΩ
- Mating Cycles: 1000
- Temperature Range: -40°C to +85°C
- IP Rating: IP65
- Cable Outer Diameter Range: 9mm to 13mm
- Termination: Receptacle - 3/16'' flat tab terminals, Plug - screw terminals
- Coupling: Bayonet
- Color Options: Blue and Grey
- Compliance: RoHS
Buy the Multicomp Series IP65 Power Connectors: MP004797
Purchase the Multicomp Series IP65 Power Connector MP004797 online today for secure and durable power connections ideal for automation, medical, and industrial environments. Featuring a bayonet coupling, screw terminal, and rated IP65 for dust and water resistance, this connector supports cables from 9 to 13mm diameter. Its current rating of 20A and voltage of 250VAC make it suitable for a wide range of demanding applications. Easy to install and highly reliable, order now to ensure your systems operate flawlessly with high-quality connectors.
Buy Multicomp Series MP004797 now and experience reliable, water-resistant power connections for industrial automation and control systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP004797?
You can click on the BUY or RFQ button to purchase MP004797 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP004797?
You can download the MP004797 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP004797?
MULTICOMP PRO
