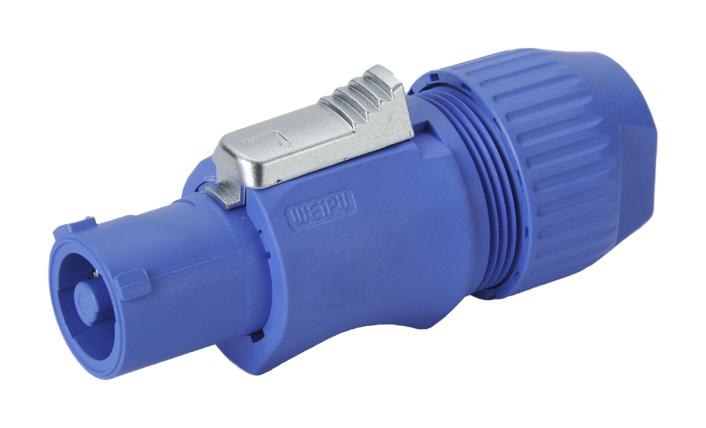

MULTICOMP PRO MP004798 3P Power Connector
The MP HPC series is designed for secure, IP65-rated connections with locking bayonet-style connectors. These connectors feature a sliding locking lever for reliable, one-handed disconnection and are rated for 20A current and 250VAC voltage. The plug employs screw terminal connections for ease of wiring, while the panel-mount receptacle has 3/16-inch flat tab terminals for simple installation. With a cable outer diameter range of 9-13mm, these connectors are ideal for automation, industrial, medical, security, and testing applications. Made of durable materials including nylon and copper-plated brass, they ensure long-lasting performance in demanding environments.
MULTICOMP PRO MP004798 3P Power Connector Specifications:
- Rated current: 20A
- Rated voltage: 250VAC
- Test voltage: 2500V for 1 minute
- Insulation resistance: 2000 MΩ
- Cable outer diameter range: 9-13mm
- Shell material: Plug: Nylon PA66, Socket: PC
- Contact material: Brass with silver plating
- Temperature range: -40°C to +85°C
- IP rating: IP65
- Coupling: Bayonet
- Termination: Receptacle: 3/16" flat tab terminals, Plug: Screw terminals
- Mating cycle: 1000
- Max temperature: 260°C
Buy the Buy Multicomp Pro IP65 3P Power Connectors Part Number MP004798 Online
Purchase the Multicomp Pro IP65 3P Power Connector MP004798 online to ensure robust, dustproof, water-resistant power connectivity. Ideal for automation, industrial, medical, security, and measurement applications, this connector features a bayonet lock for secure connection and quick disconnection. Made with durable nylon and brass components, it supports 20A current and 250VAC voltage, with a cable outer diameter range of 9-13mm. Its IP65 rating guarantees protection against dust and water, ensuring long-lasting performance in harsh environments. Easy to install with screw or flat tab terminals.
Get Multicomp Pro IP65 3P Power Connector MP004798 today—designed for reliable, dustproof, water-resistant power connections in demanding environments.
