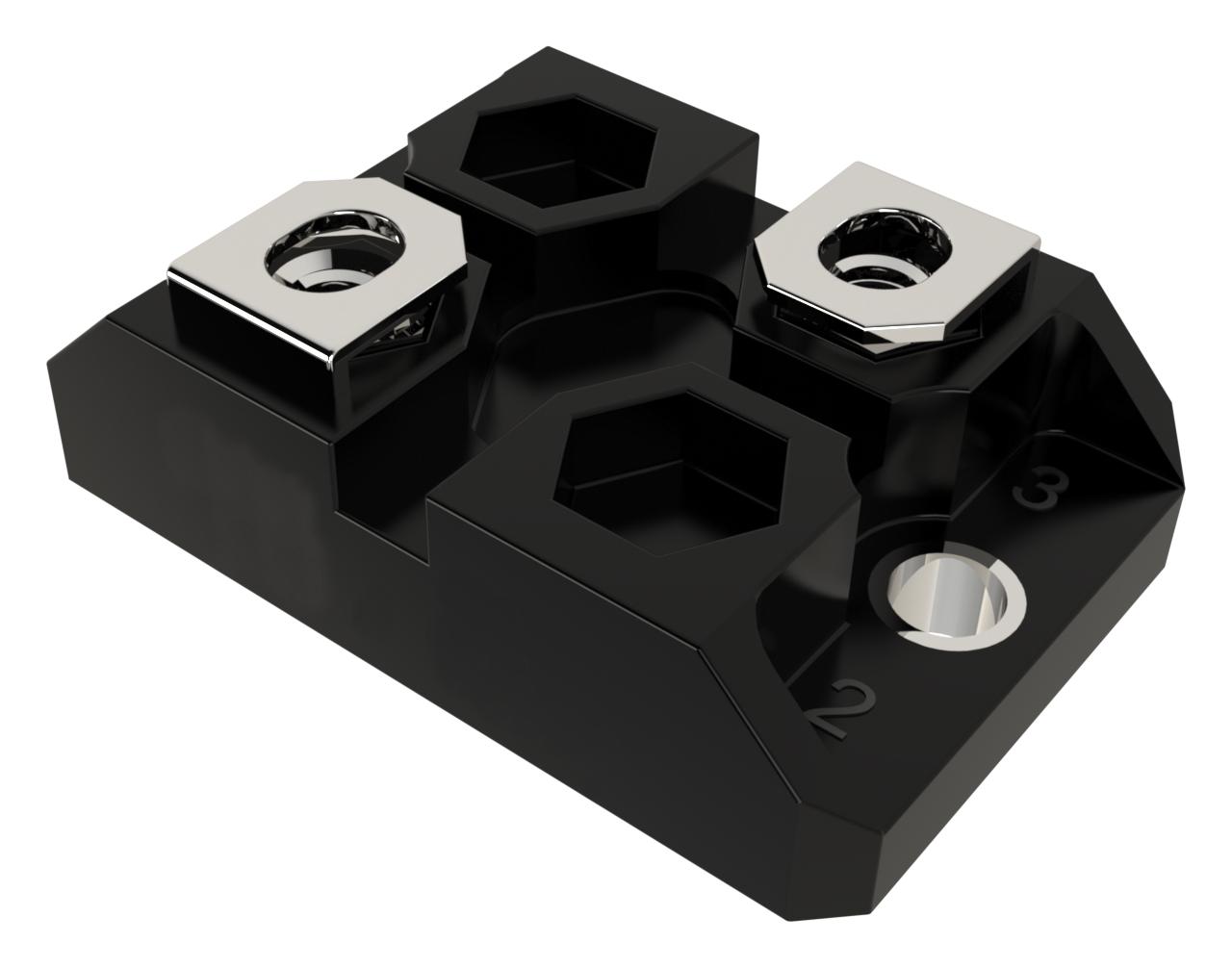

MULTICOMP-PRO MP005153 Power Resistor
These high-power thick film panel mount resistors are designed for applications requiring robust thermal management, such as snubbers and filters in electrical circuits. Constructed by firing a special paste onto alumina ceramic substrates, they feature welded internal connections and a molded housing capable of withstanding tough environmental conditions. Mounted on external heatsinks with thermal grease, they deliver reliable performance up to 800W, depending on the model. Ideal for high current, high voltage electrical filter and snubber applications, they ensure low parasitic inductance and excellent heat conduction for durability and efficiency.
MULTICOMP-PRO MP005153 Power Resistor Specifications:
- Power Ratings: 100W to 800W depending on model
- Resistance Range: 1Ω to 100KΩ (E12 series)
- Tolerance: 10%
- Temperature Coefficient: +100 ppm/K
- Max Working Voltage: up to 5000V AC
- Working Temperature Range: -55°C to +155°C
- Dielectric Strength: up to 12,000 VAC
- Insulation Resistance: >10 MΩ at 500V
- Partial Discharge: <10 pC at 5000V AC
- Self Inductance: 80 nH
- Capacitance to heatsink: <150 pF
- Max Torque for mounting: 2 Nm
- Heatsink Flatness: 0.05 mm
- Surface Finish: 6.3 μm
- Thermal Resistance: 0.11–0.15 K/W depending on model
- Weight: 100g to 959g depending on model
Buy the Multicomp Series 250W Power Resistor: MP005153
Enhance your electrical projects with our high-power thick film panel mount resistors, offering up to 800W power rating, low parasitic inductance, and excellent thermal management. Designed for filters and snubbers, these resistors are mounted on external heatsinks with thermal grease, ensuring long-lasting durability in harsh environments. Choose from a wide range of resistance values from 1Ω to 100KΩ, with strict tolerances and high dielectric strength, perfect for industrial, power supply, and automation applications. Buy online now for fast delivery and dependable quality.
Order your multicomp series 250W power resistor today and ensure reliable high-current performance for your electrical filter or snubber application.
