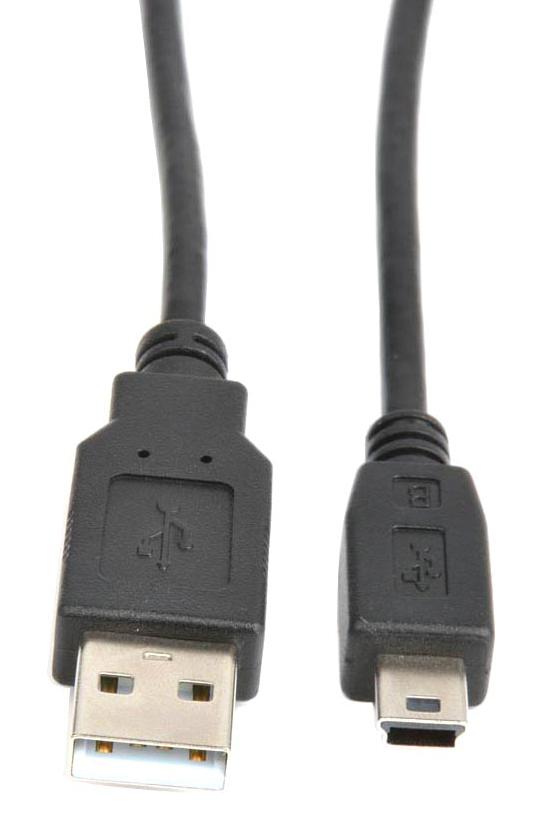

MULTICOMP PRO MP005210 USB Data Cable
This USB 2.0 cable assembly features a Type A Plug to Mini Type B Plug, available in lengths of 2m and 3m, with black PVC insulation and nickel-plated shell contacts for durable, high-quality data transfer. It is RoHS compliant, tested 100% for open, short, and miswiring, with a contact resistance of less than 30 ohms and insulation resistance of at least 10MΩ. Designed for reliable connections in industrial, consumer, and data communication applications, it supports USB 2.0 specifications at 85°C and 30V rating, ensuring robust performance in demanding environments.
MULTICOMP PRO MP005210 USB Data Cable Specifications:
- Length: 2 meters or 3 meters
- Cable Conductor: 28 AWG (7/0.127TC) for data, 22 AWG (7/0.254TC) for power
- Insulation: Black PVC, OD 4.5mm
- Connector Shell: Nickel-plated, solder type, mini USB 5P
- RoHS Compliant
- Tested for 100% continuity, open, short, miswiring
- Contact Resistance: Max 30 ohms
- Insulation Resistance: Min 10MΩ
- HI-POT Test Voltage: 300V DC
- Working Voltage: 30V
- Temperature Rating: 85°C
- Material: PVC insulation, nickel-plated shell contacts
- Compatibility: USB 2.0 specifications
- Manufactured with UL style 2725, 85°C, 30V rated
- Part Numbers: MP005209 (2m), MP005210 (3m)
Buy the multicomp USB 2.0 Cable MP005210 – Reliable Mini USB for Industrial Applications
Enhance your data transfer setup with our high-quality USB 2.0 cable, featuring Type A to Mini Type B connectors, nickel-plated contacts, and RoHS compliance. Available in 2m and 3m lengths, it is extensively tested for durability, open, short, and miswire detection, ensuring reliable performance in industrial and consumer applications. Its robust construction, compliance with USB 2.0 standards, and excellent insulation resistance make it ideal for demanding environments. Purchase online today for fast delivery and dependable connections.
Buy multicomp USB 2.0 Mini B Cable MP005210 now and experience unmatched reliability and performance in your data connections.
