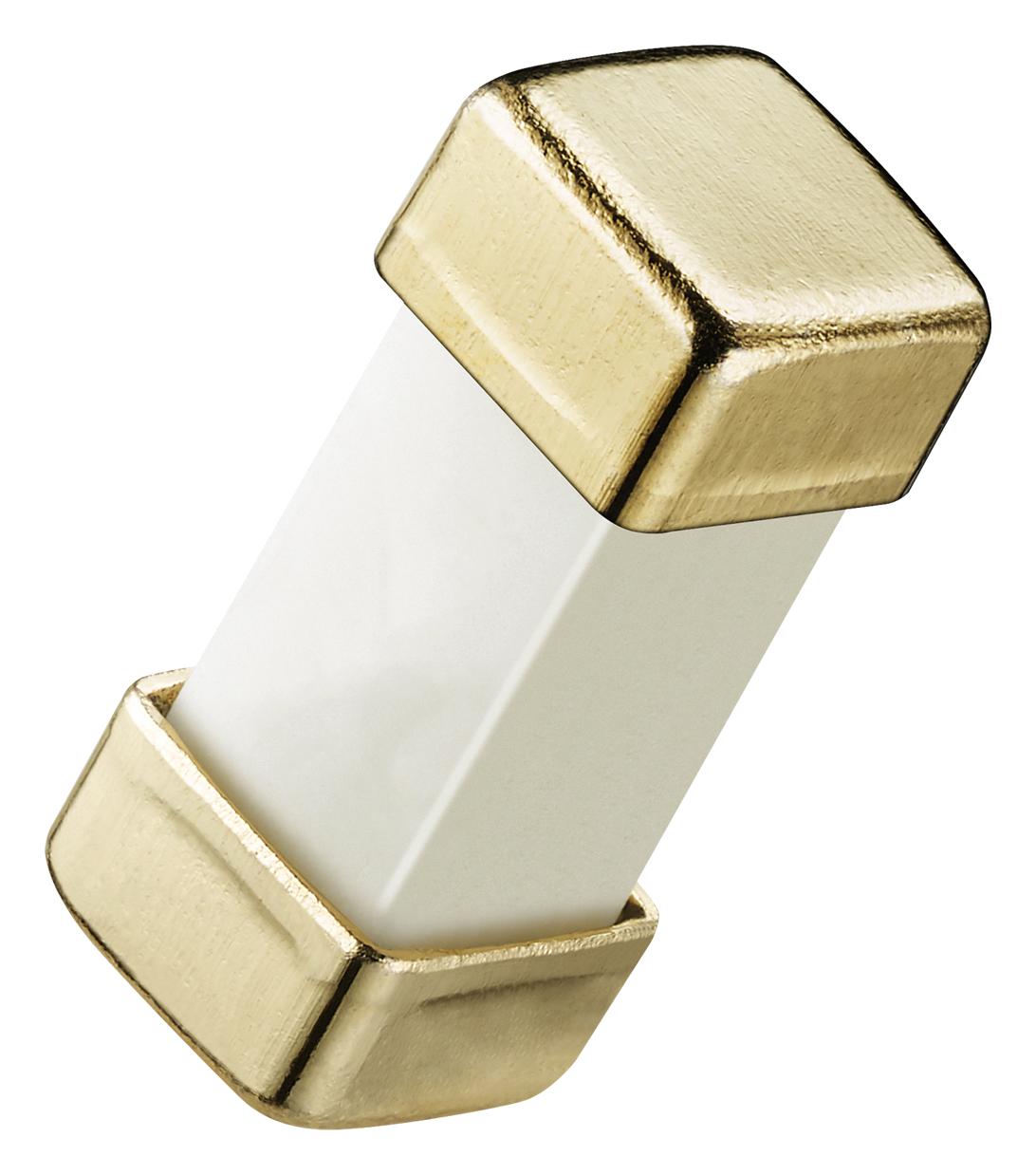

MULTICOMP PRO MP005488 Fast-Acting SMD Fuse
The fast-acting SMD fuse provides reliable overcurrent protection for electronic circuits and base stations. Made with ceramic body and gold-plated brass caps, it operates within temperatures of -55°C to +125°C. Suitable for models from 1A to 15A ratings, these fuses feature quick response times, with opening times from 5 seconds to just 60 seconds depending on the amperage. Certified for US and Canadian safety standards, they withstand high interrupting ratings up to 300A at 24V DC and 50A at 125V AC/DC. Compact and RoHS compliant, these high-quality fuses ensure safety and durability in sensitive electronic applications.
MULTICOMP PRO MP005488 Fast-Acting SMD Fuse Specifications:
- Material: Body ceramic, Termination gold-plated brass caps
- Operating Temperature: -55°C to +125°C
- Ampere Ratings: 1A, 2A, 2.5A, 3A, 4A, 5A, 7A, 10A, 15A
- Voltage Rating: 125V (standard), optional 86V for 15A
- Interrupting Ratings: 50A at 125V AC/DC, 300A at 24V DC, 50A at 65V AC/DC, 200A at 86V AC/DC
- Opening Time: 5 seconds at 1A, up to 60 seconds at 15A
- Physical Dimensions: Diameter approximately 2.6 mm, length around 6.14 mm
- RoHS Compliant
- Agency Approvals: CSA, PSE, recognized components for US and Canada
Buy the Buy Multicomp Fast-Acting SMD Fuse Part Number MP005488 Online
Purchase the Multicomp fast-acting SMD fuse MP005488 online today to protect your electronic circuits against overcurrent damage. With ratings from 2A, ceramic body, gold-plated brass caps, and a temperature range of -55°C to +125°C, this fuse offers quick response times for optimal circuit safety. Certified for U.S. and Canadian standards, it features high interrupting ratings up to 300A at 24V DC and 50A at 125V AC/DC. Order now for fast delivery and dependable performance in your electronic applications.
Buy Multicomp MP005488 fast-acting SMD fuse now and ensure reliable overcurrent protection for your electronic circuits.
