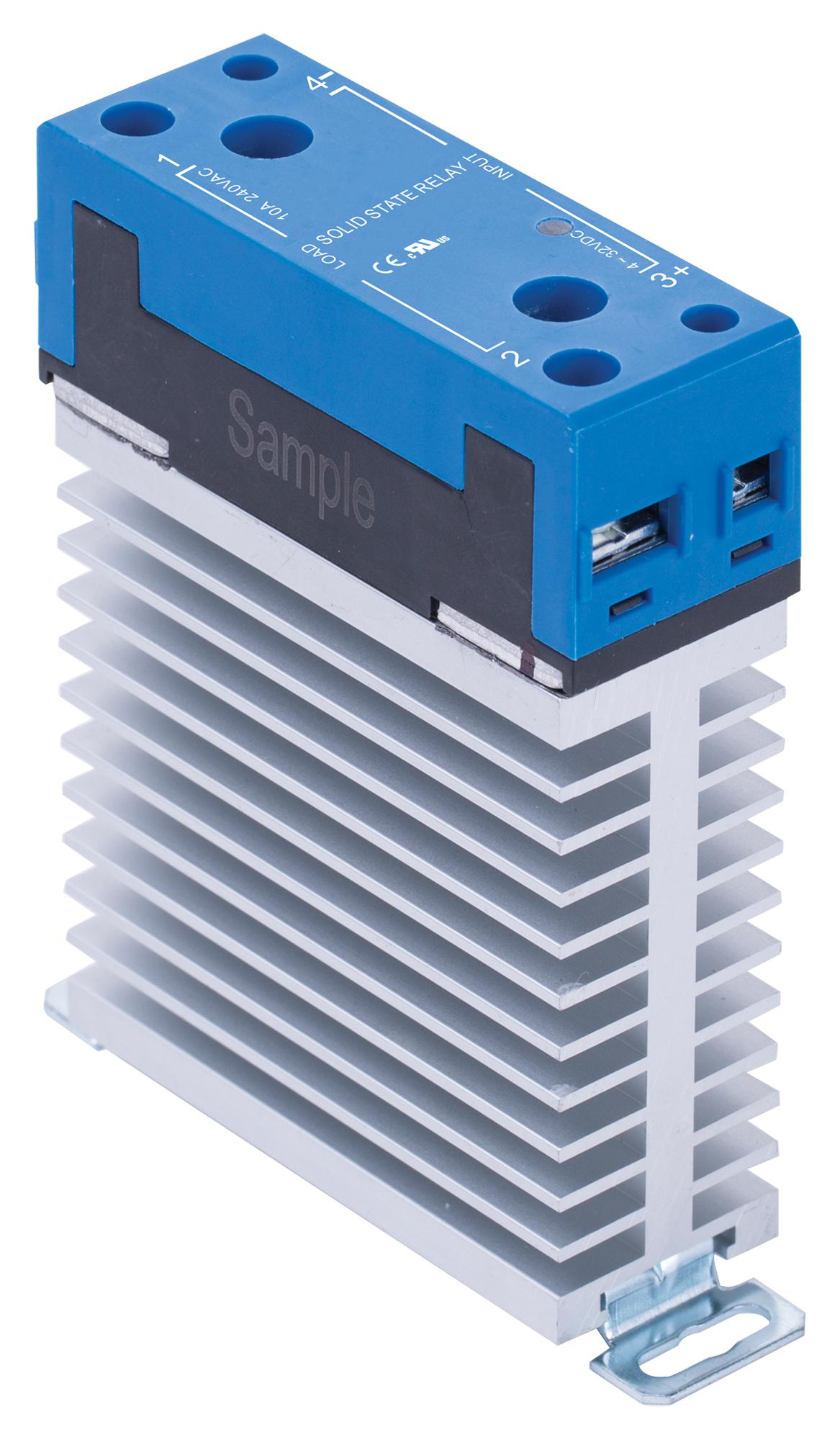

MULTICOMP-PRO MCKSV240D10LM industrial solid state relay
This industrial solid state relay features zero crossing switching, integrated heatsink, and capacity ratings from 10A to 40A at 24-280VAC load voltage. It has a control voltage range of 4 to 32V DC, with a load voltage of 124 to 280VAC, and offers protection circuits like MOV and built-in RC snubber. Its compact design allows mounting on 35mm DIN rails or panel, suitable for automation, lighting, and machinery applications. RoHS compliant, it provides high dielectric strength, LED indicators, and a fast switching time of 10ms, ensuring reliable and efficient operation in industrial environments.
MULTICOMP-PRO MCKSV240D10LM industrial solid state relay Specifications:
- Control Voltage Range: 4V DC to 32V DC
- Load Voltage Range: 124 ~ 280VAC
- Load Current Ratings: 10A, 20A, 30A, 40A
- Surge Current (10ms): 10A - 200A, 20A - 300A, 30A - 460A, 40A - 520A
- Dielectric Strength: 4000VACrms
- Input, Output/Base Voltage: Max 600Vpk
- Input Current: Max 15mA
- Ambient Operating Temperature: -30°C to +80°C (up to +100°C storage)
- Dimensions: 100mm x 30mm x 112mm (10A-30A) or 122mm x 50mm x 110mm (40A)
- Weight: 355g (10A/20A/30A), 540g (40A)
- Features: Zero crossing switching, MOV protection, LED indication, built-in RC snubber circuit
Buy the Multicomp Proton – Reliable Industrial Solid State Relay for Automation Applications
Enhance your automation systems with this reliable solid state relay featuring integrated heatsink, multiple load ratings, and high dielectric strength. Designed for industrial environments, it supports DIN rail mounting or panel installation, ensuring flexible deployment. With a control voltage of 4-32V DC and load capacity up to 280VAC, it offers fast switching times and protection circuits including MOV and RC snubber for safe operation. Purchase online today and upgrade your machinery with trusted quality for continuous, efficient performance.
Order your Multicomp Pro series relay today and benefit from dependable switching performance for industrial automation and machinery.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCKSV240D10LM?
You can click on the BUY or RFQ button to purchase MCKSV240D10LM from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCKSV240D10LM?
You can download the MCKSV240D10LM datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCKSV240D10LM?
MULTICOMP-PRO
