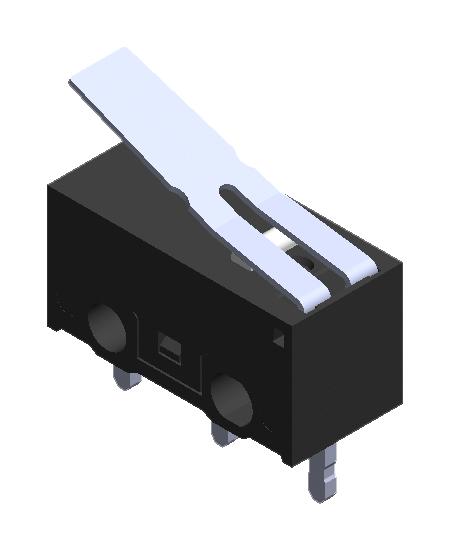

MULTICOMP PRO MP005546 Miniature Microswitch
This miniature through-hole snap action microswitch is designed for reliable switching in various electronic applications, including household appliances, security, communication, and control systems. It features high durability, with mechanical life exceeding 1,000,000 cycles, and electrical durability of at least 8,000 cycles at 3A. The switch supports a wide operating temperature range from -25°C to +75°C, and offers various actuator options like pin, hinge lever, bent lever, and simulated roller lever. It conforms to UL standards and RoHS compliance for environmentally responsible manufacturing.
MULTICOMP PRO MP005546 Miniature Microswitch Specifications:
- Contacts rated at 0.1A at 30V DC, 3A at 125V AC
- Mechanical durability: 1,000,000 cycles minimum
- Electrical durability: 8,000 cycles minimum at 3A
- Contact Resistance: 100mΩ maximum
- Insulation Resistance: 100MQ minimum
- Operating Temperature: -25°C to +75°C
- Dielectric Strength: AC 1500V for 1 minute between current-carrying parts and ground
- Switch Type: SPST-NO, SPST-NC, SPDT
- Actuator Types: Pin, hinge lever, bent lever, simulated roller lever
- Physical Dimensions: varied based on actuator; typical lever length approx. 10.8mm
- RoHS compliant and UL listed for safety and environmental standards
Buy the Farnell Series Microswitch: MP005546
Order the Farnell miniature microswitch MP005546 online today and ensure reliable switching performance in your electronic projects. With high durability over 1 million cycles, versatile actuator options including pin, hinge, bent, and roller levers, this compact switch is ideal for household appliances, security systems, communication equipment, and industrial controls. Its RoHS compliance, UL listing, and wide operating temperature range guarantee safety and environmental responsibility. Purchase now for fast delivery and dependable operation in your control systems and electronic devices.
Get Farnell MP005546 microswitch today—built for precision and long-lasting durability.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP005546?
You can click on the BUY or RFQ button to purchase MP005546 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP005546?
You can download the MP005546 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP005546?
MULTICOMP PRO
