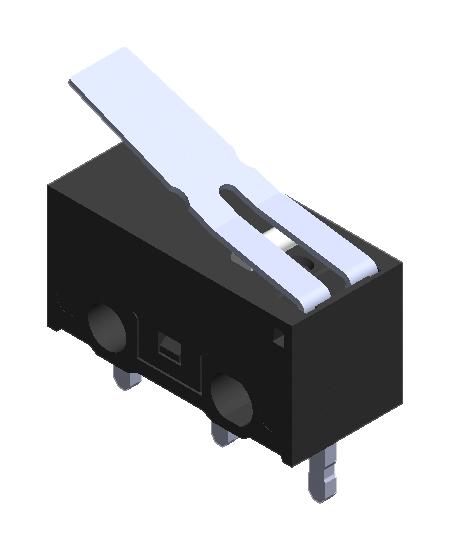

MULTICOMP PRO MP005547 Microswitch
The product is a through-hole snap action microswitch designed for high reliability and long operating life. Suitable for electronic equipment, household appliances, security, communication devices, and projectors, this switch features a compact design with various actuator options like hinge, bent, pin plunger, and simulated roller lever. It offers ratings up to 3A at 125V AC, with circuit configurations including NO, NC, and COM contacts. The switch is RoHS compliant, supports operating temperatures from -25°C to +75°C, and is resistant to flux, making it ideal for both industrial and consumer applications.
MULTICOMP PRO MP005547 Microswitch Specifications:
- Contact Rating: 3A at 125V AC, 1.5A at 250V AC
- RoHS compliant
- Operating Temperature: -25°C to +75°C
- Durability: 1,000,000 cycles minimum
- Contact Resistance: 100mΩ max
- Insulation Resistance: 100MΩ min
- Dielectric Strength: AC 1500V 1 minute between current-carrying parts and ground, and between terminals and non-current-carrying metal parts
- Operating Force: 26gf to 40gf depending on model
- Release Force: 2gf minimum
- Overtravel: 0.20mm to 0.55mm
- Movement Differential: 0.20mm to 0.50mm
- Auxiliary contact configurations: SPST-NO, SPST-NC, SPDT
- Pin and hinge lever actuators available
- Physical dimensions vary; typically small PCB mount size
- Suitable for use in mouse, projectors, communication equipment, security, and household appliances
Buy the Buy multicomp:ro Through Hole Snap Action Microswitches Part Number MP005547 Online
Purchase the high-quality multicomp:ro microswitch MP005547 online today to ensure your projects benefit from durable, precise, and reliable switching. Ideal for electronic and household applications, this switch offers multiple actuator options and a 3A rating. Its compact size, RoHS compliance, and long operating life make it perfect for professional use in security, communication, and automation projects. Shop online now for fast delivery and excellent technical support to meet your specific switching needs.
Order your multicomp:ro through hole snap action microswitch MP005547 today and give your electronic devices reliable switching performance.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP005547?
You can click on the BUY or RFQ button to purchase MP005547 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP005547?
You can download the MP005547 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP005547?
MULTICOMP PRO
