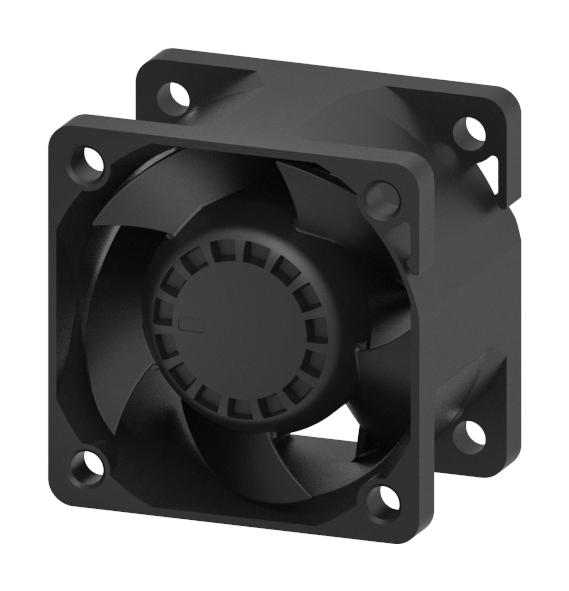

MULTICOMP PRO MP006489 Brushless Cooling Fan
The 12V DC brushless fan features a compact 40mm x 40mm x 28mm size with a ball bearing system and thermoplastic frame. Designed for reliable cooling, it operates efficiently with a rated current of 510 mA and power consumption up to 7.05 Watts. The fan provides high airflow of 24.9 CFM and a static pressure of 1.95 Inch-H20, ensuring effective ventilation. Its durable build includes thermoplastic components rated UL 94V-0, operating temperature range from -10°C to +70°C, and a lifespan of 70,000 hours, making it suitable for industrial and electronic cooling applications.
MULTICOMP PRO MP006489 Brushless Cooling Fan Specifications:
- Motor Design: Single phase, 4-poles Brushless DC motor
- Bearing System: Precision ball bearing system
- Frame Material: Thermoplastic PBT of UL 94V-0
- Fan Blade Material: Thermoplastic PBT of UL 94V-0
- Rotation Direction: Counter-Clockwise Viewed From Front of Fan Blade
- Mounting Hole Diameter: 3.5 mm in 8 Holes
- Weight: 42g
- Rated Voltage: 12V DC
- Rated Current: 510 mA / Max. 587 mA
- Rated Power Consumption: 6.12 Watts / Max. 7.05 Watts
- Operating Voltage Range: 6.5V DC to 13.2V DC
- Starting Voltage: 6.5V DC
- Temperature Range: -10°C to +70°C
- Rated Speed: 17600 RPM + 15%
- Air Flow: 24.9 CFM / 21.9 CFM
- Static Pressure: 1.95 Inch-H20 / 1.20 Inch-H20
- Acoustic Noise: 56.0 dB(A) / Max. 63.7 dB(A)
- Insulation Resistance: 10MQ at 500V DC
- Dielectric Strength: Applied AC 500V for 1 min
- Lifespan: 70,000 hours at 40°C
- Protection: Automatic Restart, Polarity Protection
Buy the Multicomp Series Brushless Cooling Fan: MP006489
Order the Multicomp brushless cooling fan MP006489 online today and ensure robust electronic cooling in industrial applications. This compact fan provides high airflow of 24.9 CFM, static pressure of 1.95 Inch-H20, and operates efficiently at 12V DC with a lifespan of approximately 70,000 hours. Designed with a durable thermoplastic frame, ball bearing system, and UL 94V-0 compliance, it guarantees safety and reliability. Perfect for electronic and equipment cooling, this fan ensures optimal performance under diverse temperature conditions, making it essential for effective thermal management.
Buy Multicomp brushless DC fan MP006489 now and experience reliable cooling with long lifespan and high airflow efficiency.
