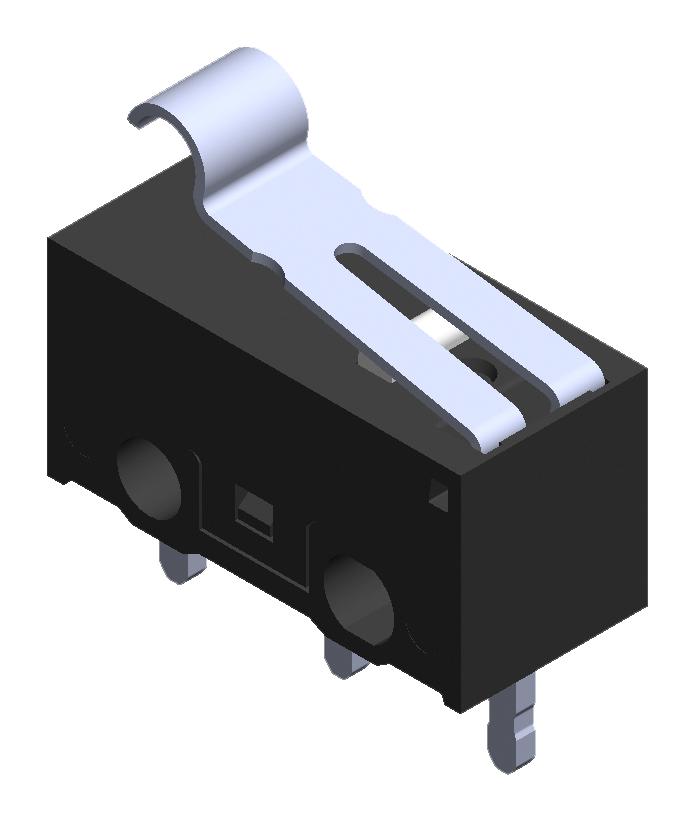

MULTICOMP PRO MP005552 Microswitch
This high-reliability through-hole snap action microswitch offers long operating life and precise switching for electronic, household, communication, security, and project applications. It supports various actuators including hinge, bent, pin plunger, and simulated roller lever, with ratings up to 3A at 125V AC and 0.1A at 30V DC. Suitable for pcb mounting, it features minimal contact resistance, high insulation resistance, and dielectric strength of AC 1500V for 1 minute, making it ideal for automation and control systems with operating temperatures from -25°C to +75°C.
MULTICOMP PRO MP005552 Microswitch Specifications:
- Electrical Durability: 8,000 cycles MIN.
- Contact Resistance: 100mΩ MAX.
- Insulation Resistance: 100MΩ MIN.
- Dielectric Strength: AC 1500V for 1 minute between current-carrying parts and ground.
- Operating Temperature: -25°C to +75°C.
- Actuators: Hinge lever, bent lever, pin plunger, simulated roller lever.
- Ratings: 3A at 125V AC, 0.1A at 30V DC.
- Contact Plating: Silver (O1A).
- Physical Mounting: Through-hole, snap action.
- Cycle Durability: Mechanical MIN. 1,000,000 cycles, Electrical MIN. 8,000 cycles.
- Contact Resistance: Max 100mΩ.
Buy the Buy multicomp Microswitch Part Number MP005552 Online
Purchase the multicomp microswitch MP005552 online today to ensure dependable switching for your electronic, security, and automation projects. With ratings up to 3A at 125V AC, durable construction supporting over 1 million mechanical cycles, and multiple actuator options including hinge and roller levers, this premium microswitch guarantees performance and reliability. Its compact through-hole design is perfect for PCB mounting, and its high insulation resistance and dielectric strength make it suitable for demanding industrial applications. Get yours now for seamless integration into your control systems!
Buy multicomp microswitch MP005552 now and experience unmatched reliability and long operating life for electronic and household automation.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP005552?
You can click on the BUY or RFQ button to purchase MP005552 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP005552?
You can download the MP005552 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP005552?
MULTICOMP PRO
