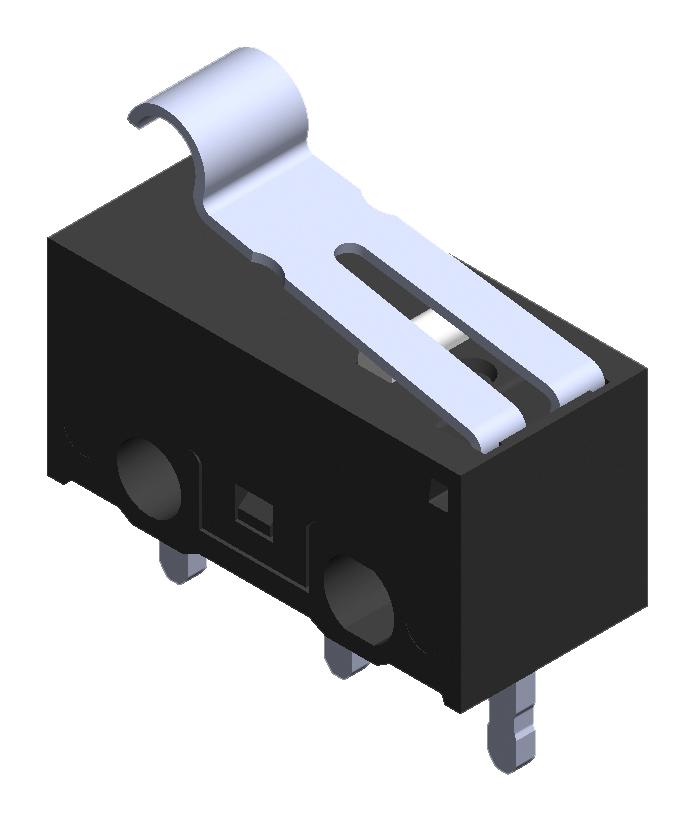

MULTICOMP PRO MP005553 Microswitch
The product is a through hole snap action microswitch designed for reliable switching in industrial and electronic applications. It features a compact PCB terminal design, a variety of actuator types including hinge, bent, pin plunger, and simulated roller levers. Rated for up to 3A at 125V AC and 0.1A at 30V DC, it offers high durability with a minimum of 1,000,000 cycles. Suitable for use in mouse, projector, security, communication, household appliances, and electronic devices. It conforms to UL and RoHS standards for safety and environmental compliance.
MULTICOMP PRO MP005553 Microswitch Specifications:
- Contact Rating: 3A at 125V AC, 0.1A at 30V DC
- Durability: Minimum 1,000,000 cycles
- Contact Resistance: 100mΩ Max
- Insulation Resistance: 100MΩ Min
- Dielectric Strength: AC 1500V 1 minute between current-carrying metal parts and ground, and between terminals and ground
- Operating Temperature: -25°C to +75°C
- Operating Force: 26gf (0.25N) Max, 40gf (0.39N) Max
- Release Force: 2gf (0.02N) Min
- Overtravel: 0.20mm to 0.55mm
- Movement Differential: 0.20mm to 0.50mm
- Operating Position: 6.9±0.3mm to 10.2±1.2mm
- Free Position: 1.5mm to 11.8mm
Buy the Multicomp Series Microswitch: MP005553
Purchase the reliable Microswitch from the Multicomp series online today and enjoy fast delivery. This high-quality switch features multiple actuator options, robust contact ratings, and long-lasting durability up to 1,000,000 cycles. Perfect for use in household, communication, security, and electronic equipment, it complies with UL and RoHS standards. Whether for project prototyping or industrial manufacturing, this compact through hole switch guarantees performance and safety. Order now and enhance your electronic or industrial systems with this dependable component.
Order your Multicomp Series microswitch MP005553 today and ensure dependable switching performance for your industrial and electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP005553?
You can click on the BUY or RFQ button to purchase MP005553 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP005553?
You can download the MP005553 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP005553?
MULTICOMP PRO
