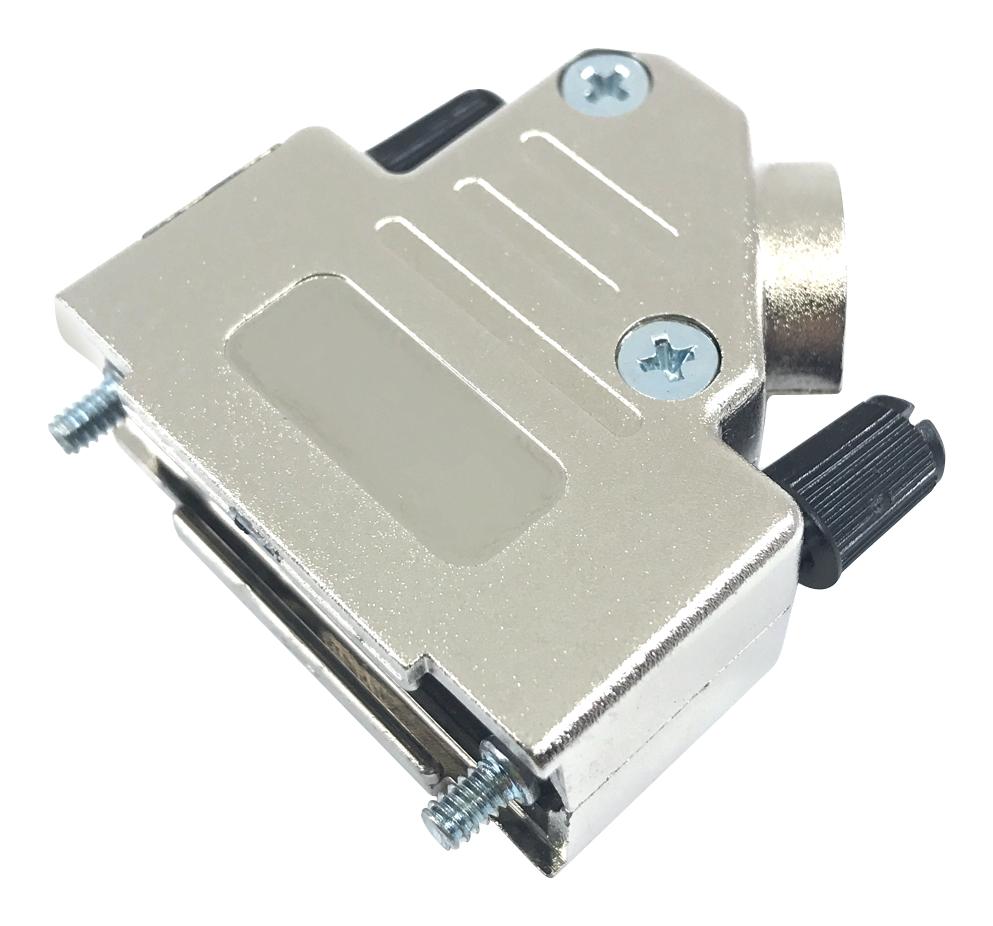

MULTICOMP-PRO MP002022 D-Sub Connector
This high-quality D-Sub connector with backshell provides reliable EMI and RF interference minimization, easy assembly without special tools, and is approved to industry standards. Suitable for connecting round foil and braided cables, it features long UNC 4-40 jackscrews, and high corrosion resistance. Available in various sizes including DB-25, DE-9, and DA-15, it offers excellent electrical performance with > 40 dB attenuation between 30 MHz and 1 GHz, rated -55°C to +105°C for durability in demanding environments.
MULTICOMP-PRO MP002022 D-Sub Connector Specifications:
- Material: ABS, Ni-plated
- Temperature Range: -40°C to 105°C
- Cable Strain Relief: Polycarbonate, UL94 VO
- Cable Diameter: 3mm to 13mm
- Locking Screws: Long jackscrews UNC 4-40, Black
- Attenuation Factor: > 40 dB between 30 MHz and 1 GHz
- Insulator: PBT, UL94 V-0
- Shell Material: Steel, Tin-plated
- Contact Pins: Copper alloy with gold over nickel plating
- Insulator Resistance: > 1000 MΩ
- Withstand Voltage: 1 kV for 1 min
Buy the Buy Multicomp D-Sub Connector with Backshell Part Number MP002022 Online
Get your Multicomp high-performance D-Sub connector with backshell MP002022 today. Designed for reliable electrical connections, it features excellent EMI shielding, robust steel shell construction, long UNC 4-40 jackscrews, and a wide temperature range from -55°C to +105°C. Suitable for various cable sizes, it ensures secure locking, high insulation resistance, and minimal signal attenuation. Perfect for industrial, networking, and electronic systems, this connector provides durability, easy assembly, and compliant industry standards, making it ideal for professional installations and rugged environments.
Order your Multicomp D-Sub connector with backshell MP002022 today and ensure your cable connections are reliable with high EMI shielding and robust design.
