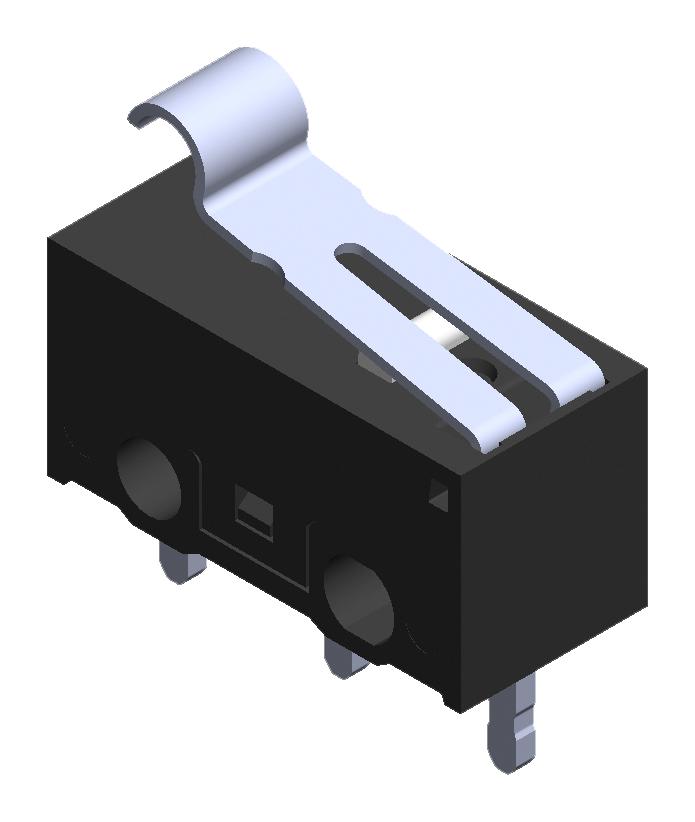

MULTICOMP PRO MP005554 Microswitch
This high-reliability through hole snap action microswitch features various actuators such as pin plungers, hinge levers, and simulated roller levers, suited for household appliances, communication equipment, security, and electronic devices. It offers a contact rating of 0.1A at 30V DC, 3A at 125V AC, with a mechanical durability of over 1,000,000 cycles. Its operating temperature ranges from -25°C to +75°C, ensuring long service life and dependable switching performance in diverse applications.
MULTICOMP PRO MP005554 Microswitch Specifications:
- Contact Rating: 0.1A at 30V DC, 3A at 125V AC
- Durability: Over 1,000,000 mechanical cycles, 8,000 electrical cycles
- Contact Resistance: 100mΩ max
- Insulation Resistance: 100MΩ min
- Dielectric Strength: 1500V AC for 1 minute
- Operating Temperature: -25°C to +75°C
- Actuator Types: Pin plunger, hinge lever, bent lever, simulated roller lever
- Mounting Type: Through hole
- Switch Type: SPST-NO, SPST-NC, SPDT
- RoHS Compliant
- Min Actuation Force: 26gf, Max: 40gf
- Release Force: 2gf
- Overtravel: Minimum 0.20mm
- Movement Differential: Max 0.50mm
- Operating Position: Approx. 6.9 mm to 10.2mm depending on actuator
Buy the Multicomp Series Microswitches: through hole snap action: MP005554
Purchase Multicomp Series Microswitches online today and benefit from high durability, reliable performance, and versatile actuators suitable for electronic, household, and security devices. These switches are designed to endure over 1 million cycles and operate efficiently within a temperature range of -25°C to +75°C, making them ideal for various industrial and consumer applications. Easy to install with through-hole mounting, they feature multiple actuator options for tailored operation and dependable circuit switching in demanding environments.
Get Multicomp Series Microswitches today—built for precision and long-lasting durability in electronic and household applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP005554?
You can click on the BUY or RFQ button to purchase MP005554 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP005554?
You can download the MP005554 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP005554?
MULTICOMP PRO
