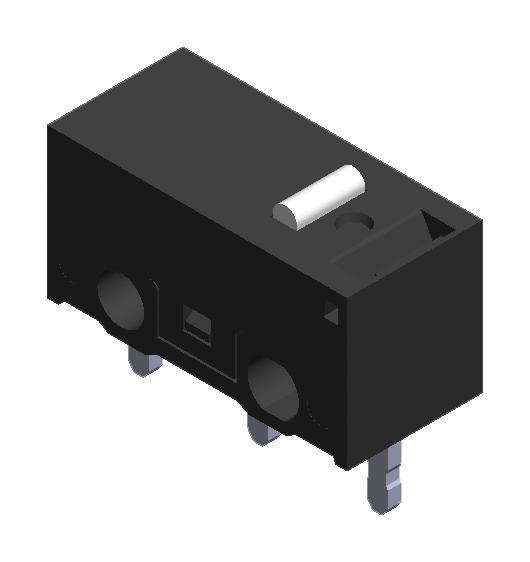

MULTICOMP PRO MP005568 Micro Switch
These through-hole snap action microswitches are highly reliable, offering long operating life with mechanical durability of over 80,000 cycles and electrical durability of at least 8,000 cycles. Suitable for various electronic, household, security, communication, and projector applications, they feature precise operating and release forces, multiple actuator options, and PVC terminal resistance to flux. Rated at 0.1A at 30V DC, with insulation resistance of at least 100MΩ and contact resistance not exceeding 100mΩ, they perform efficiently in temperature ranges from -25°C to +75°C, ensuring dependable performance in industrial and consumer electronics.
MULTICOMP PRO MP005568 Micro Switch Specifications:
- Contact Rating: 0.1A at 30V DC, 3A at 125VAC, 1.5A at 250VAC
- Mechanical Durability: 80,000 cycles minimum
- Electrical Durability: 8,000 cycles minimum
- Contact Resistance: 100mΩ max
- Insulation Resistance: 100MΩ min
- Dielectric Strength: AC 1500V 1 minute between current-carrying parts and ground, terminal to terminal
- Operating Temperature: -25°C to +75°C
- Rated Voltage: 30V DC, 125VAC, 250VAC
- Terminals: PCB resistant to flux, through-hole mounting
- Actuators: Hinge lever, bent lever, pin plunger, simulated roller lever
- Physical Height: approximately 8.5mm to 11.8mm depending on actuator
- Dimensions: varied per actuator, typical overtravel ~0.55mm, operating force between 26gf to 40gf
- RoHS compliant, UL listed
Buy the Farnell MP005568 Reliable Micro Switch for Industrial Applications
Purchase the Farnell MP005568 micro switch online today to ensure reliable operation in your electronic projects and industrial applications. This highly durable switch offers a mechanical lifespan of over 80,000 cycles, rated for 0.1A at 30V DC, and features multiple actuator types including hinge, bent, pin plunger, and roller levers. Its excellent insulation resistance of 100MΩ and contact resistance below 100mΩ make it ideal for precise switching needs. Suitable for security systems, communication devices, household appliances, and automation equipment, this switch delivers consistent, long-lasting performance under varying environmental conditions and is RoHS compliant.
Order your Farnell Series MP005568 reliable micro switch today and give your projects the dependable quality they deserve with exceptional durability and performance.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP005568?
You can click on the BUY or RFQ button to purchase MP005568 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP005568?
You can download the MP005568 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP005568?
MULTICOMP PRO
