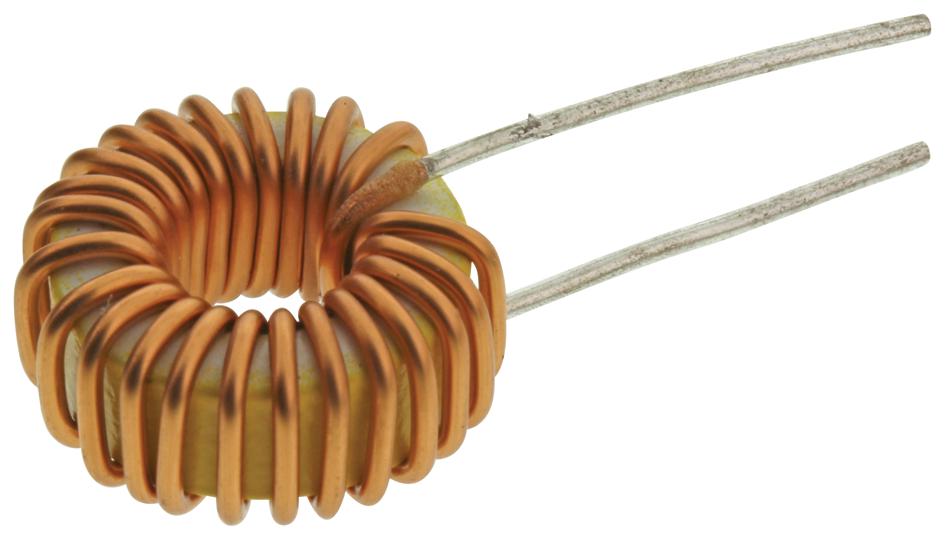

MULTICOMP-PRO MCAP105020023A200MU RF Inductor
This high-quality inductor by Multicomp Pro features a 20H inductance with a ±20% tolerance, suitable for various electronic applications. Constructed with T50-75-TAF200 core material and copper wire, it operates reliably between -55°C and +130°C. Designed to withstand humidity, temperature variations, and soldering processes, it exhibits low DCR and stable inductance. Ideal for circuit filtering, energy storage, and RF applications, this inductor ensures durability, optimal performance, and compliance with RoHS standards, making it a dependable choice for professional electronics projects.
MULTICOMP-PRO MCAP105020023A200MU RF Inductor Specifications:
- Inductance: 20H
- Tolerance: ±20%
- Core Material: T50-75-TAF200
- Wire: Copper, UEFN/U (155°C), 0.8mm diameter
- DCR: Max 420mΩ, Average 16.63mΩ at 40kHz/5mA
- Operating Temperature: -55°C to +130°C
- Humidity: Storage below 70% RH, moisture sensitivity compliant with J-STD-020B
- Solderability: Lead-free, >95%, dip at 260°C for 15s, no defects
- Size: Max dimensions A 16mm, B 8.5mm, c 15 +2mm, D 1mm, E 6.5 +2mm
- Test Data: Inductance around 20H, DCR around 16-17mΩ, stable under test conditions
- Reliability: Suitable for harsh environments, includes moisture and temperature cycling
Buy the Multicomp Series RC Inductor: MCAP105020023A200MU
Secure your Multicomp Series RC Inductor MCAP105020023A200MU online today to benefit from reliable performance, excellent durability, and precise inductance for your electronic projects. Designed with high-quality materials and RoHS compliance, this inductor guarantees stability under temperature and humidity variations, suitable for RF, filtering, and energy storage applications. With easy ordering and prompt delivery, improve your circuit efficiency with minimal lead time. Trust this proven component for professional-grade electronics and ensure your products meet high standards of quality and reliability.
Order your Multicomp Series RC Inductor MCAP105020023A200MU today and give your projects the dependable quality they deserve.
