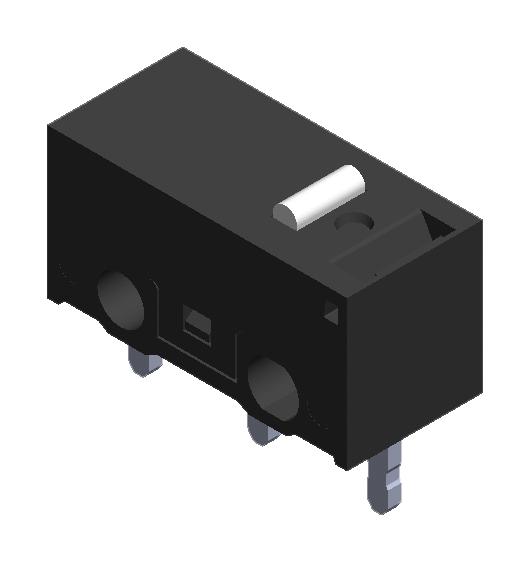

MULTICOMP PRO MP005569 Industrial Microswitch
This miniature through-hole snap action microswitch is highly reliable with long operating life, suitable for use in communication, security, household appliances, and electronic equipment. It features a SPST configuration with a maximum operating force of 40gf, release force of 2gf, and an operating temperature range of -25°C to +75°C. Designed with durable silver contacts and various actuators like pin, plunger, hinge, bent, and simulated roller levers, it ensures consistent performance in industrial and electronic applications. Compliant with RoHS standards and capable of enduring millions of cycles for dependable operation.
MULTICOMP PRO MP005569 Industrial Microswitch Specifications:
- Operating Force: 26-40gf (0.25-0.39N)
- Release Force: 2gf (0.02N)
- Overtravel: 0.20-0.55mm
- Movement Differential: 0.20-0.50mm
- Operating Position: 6.9-10.2mm
- Free Position: 4.0-11.8mm
- Contact Resistance: 100mΩ MAX.
- Insulation Resistance: 100MΩ MIN.
- Dielectric Strength: AC 1500V 1 minute between current-carrying parts and ground or terminals of non-current-carrying metal parts
- Temperature Range: -25°C to +75°C
- Durability: Electrical 8,000 cycles MIN., Mechanical 1,000,000 cycles MIN.
- Contact Material: Silver
- RoHS Compliant
- Mounting: Through-hole
- Application: Electronic, communication, security, household appliances
Buy the Multicomp:RO MP005569 – Reliable Microswitch for Industrial Applications
Purchase the Multicomp Microswitch MP005569 online today and enjoy reliable performance in various electronic and industrial applications. Designed for durability, this microswitch features a long operating life exceeding one million cycles and is RoHS compliant. Its compact through-hole design makes it easy to install in projects requiring precise switching and durability. Suitable for use in communication systems, security devices, household appliances, and electronic equipment, ensuring consistent operation under demanding conditions. Order now to enhance your product reliability with this trusted microswitch.
Get Multicomp Microswitch MP005569 today—built for precision and long-lasting durability in electronic equipment and industrial environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP005569?
You can click on the BUY or RFQ button to purchase MP005569 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP005569?
You can download the MP005569 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP005569?
MULTICOMP PRO
