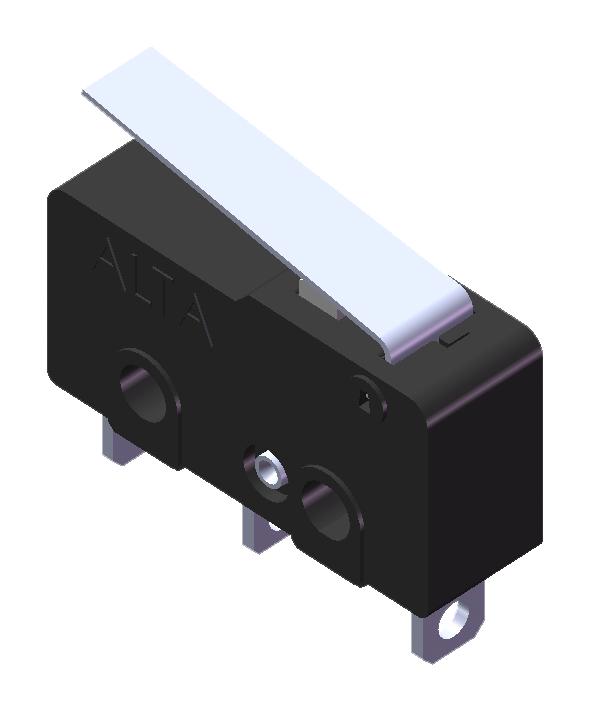

MULTICOMP PRO MP005571 Panel Mount Microswitch
The panel mount snap action microswitches are highly reliable, UL-compliant switches suitable for various home appliances, vacuum cleaners, printers, and white goods. Featuring solder terminals and designed for long operation life, these switches operate within a temperature range of -25°C to +75°C. They are marked by a contact rating of 3A at 30V DC and 5A at 125V AC/3A at 250V AC. With multiple actuator options including hinge, bent, and roller levers, they ensure precise operation with a durability of over 10 million cycles and high insulation resistance.
MULTICOMP PRO MP005571 Panel Mount Microswitch Specifications:
- Contact Rating: 5A at 125V AC, 3A at 250V AC, 3A at 30V DC
- Operating Temperature: -25°C to +75°C
- Mechanical Durability: 10,000,000 cycles MIN
- Electrical Durability: 10,000 cycles MIN
- Contact Resistance: 50mΩ MAX
- Insulation Resistance: 100MQ MIN
- Dielectric Strength: AC 1500V 1 minute between current-carrying parts and ground
- Solder Terminals
- Actuator Types: Hinge, Bent, Roller levers
- Operating Force: 50gf (0.49N) MAX
- Release Force: 60gf (0.06N) MIN
- Overtravel: 1.20mm MIN
- Movement Differential: 0.80mm MAX
- Operating Position: typically between 8.8mm and 14.5mm depending on model
- Free Position: 12mm to 19.3mm MAX
Buy the Buy Multicomp Panel Mount Snap Action Microswitch Part Number MP005571 Online
Purchase the high-quality Multicomp panel mount snap action microswitch MP005571 online today. Designed for long-lasting performance, this UL-compliant switch offers reliable operation with a contact rating of 5A at 125V AC, 3A at 250V AC, and includes solder terminals for easy installation. Suitable for applications like home appliances, white goods, and industrial controls, it withstands over 10 million cycles and operates efficiently within a temperature range of -25°C to +75°C. Ensure your projects have dependable switches with fast online ordering and prompt delivery.
Order your Multicomp Series MP005571 panel mount snap action microswitch today and ensure reliable switching performance for your home appliances and industrial projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP005571?
You can click on the BUY or RFQ button to purchase MP005571 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP005571?
You can download the MP005571 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP005571?
MULTICOMP PRO
