MULTICOMP PRO MP005602 Resistor Array
The thick film chip resistor arrays feature a convex terminal design, RoHS compliance, and are rated for 1/16W power. They operate within a temperature range of -55°C to +155°C, with a maximum voltage of 50V. These resistors are constructed with Ag/Pd electrodes, Sn plating, and are suitable for high-temperature environments. They come in compact 0804 size, offering resistance values from 100R to 1M with a resistance tolerance of 5%, and are ideal for surface-mount applications in electronic circuit assemblies.
MULTICOMP PRO MP005602 Resistor Array Specifications:
- Power Rating: 0.0625W at 70°C, derates above 70°C
- Resistance Range: 100R to 1M, tolerance 5%
- Temperature Range: -55°C to +155°C
- Max Voltage: 50V; Overload Voltage: 100V
- Construction: Ag/Pd electrodes, Sn substrate plating
- Size: 0804 (2.0 x 1.25 mm)
- Resistance marking: 4 significant digits; 1003 for 100K
- RoHS compliant; Calibrated resistance change ≤ 5%
- Resistance change after thermal cycling ± 1%
- Solderability: 245°C, 2-3 seconds immersion
- Dielectric withstand voltage: 100V AC for 60 sec
- Operating ambient temperature: up to 70°C

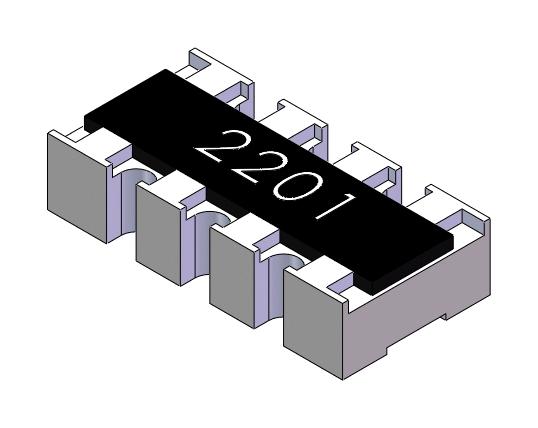

Buy the Buy Multicomp Resistor Array Part Number MP005602 Online
Discover the ultimate solution for your electronic circuits with the Multicomp thick film resistor array MP005602. Featuring four isolated elements, 1/16W power capacity, and resistance values from 100R to 1M, this RoHS-compliant component is perfect for high-temp and precision applications. Its compact 0804 size ensures easy surface-mount placement, while robust construction guarantees durability and consistent performance. Improve your design's reliability today by purchasing conveniently online with fast delivery and excellent technical support.
Order your Multicomp Series MP005602 thick film resistor array today and enhance your electronic projects with reliable surface-mount components designed for high-temperature environments.
