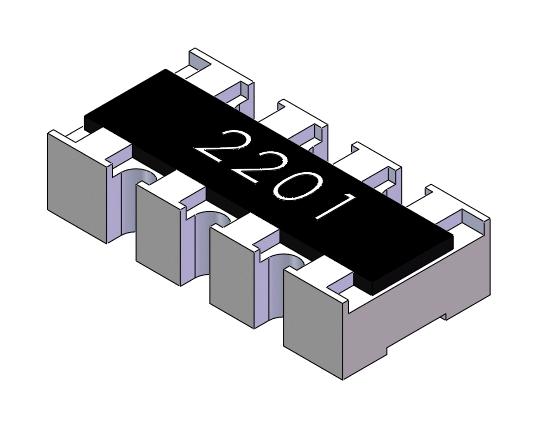

MULTICOMP PRO MP005603 Chip Resistor Array
This product is a thick film chip resistor array with four isolated elements, designed for high-reliability electronic circuits. Constructed with silver-palladium electrodes and tin-plated substrate, it offers a power rating of 1/16W per element at 70°C. The resistor array supports resistance values from 100 ohms to 1 megaohm with 5% tolerance, suitable for precision applications. Its compact 0804 package size ensures ease of placement on circuit boards, with markings indicating resistance values for quick identification. It meets RoHS compliance and withstands operating temperatures from -55°C to +155°C, making it ideal for various industrial performance demands.
MULTICOMP PRO MP005603 Chip Resistor Array Specifications:
- Type: Thick film chip resistor array, 4 elements, 0804 size
- Power Rating: 1/16W per element at 70°C, derated above this temperature
- Resistance Range: 100 ohms to 1 megaohm
- Tolerance: ±5%
- Temperature Coefficient: ±200 ppm/°C
- Max Working Voltage: 50V, Max Overload Voltage: 100V
- Dielectric Withstanding Voltage: 100V
- Operating Temperature Range: -55°C to +155°C
- Construction: Electrodes made of Ag/Pd, substrate plated with Sn
- Marking: 4 digits for E-26 series, indicating resistance value
- Dimensions: Length 2.4mm ±0.1, Width 0.45mm ±0.1, Height 0.2mm, other size details provided
- RoHS Compliant, designed for high-reliability circuit applications
Buy the Multicomp Series Resistor Array: 4 Elements 1/16W 5% - MP005603
Order the Multicomp chip resistor array MP005603 online today to ensure your projects benefit from high-quality, reliable components. This 4-element, 0804 size resistor array offers precise 5% resistance tolerance, supports resistance values from 100 ohms to 1 megaohm, and is RoHS compliant. With a power rating of 1/16W per element at 70°C, it is suitable for demanding industrial applications. Its compact design facilitates easy placement on circuit boards, making it ideal for high-performance and space-constrained electronic designs. Purchase now to enhance your assembly with trusted, durable resistors engineered for lasting performance.
Get Multicomp resistor array MP005603 today—built for precision, compact size, and long-lasting durability in electronic circuits.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP005603?
You can click on the BUY or RFQ button to purchase MP005603 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP005603?
You can download the MP005603 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP005603?
MULTICOMP PRO
