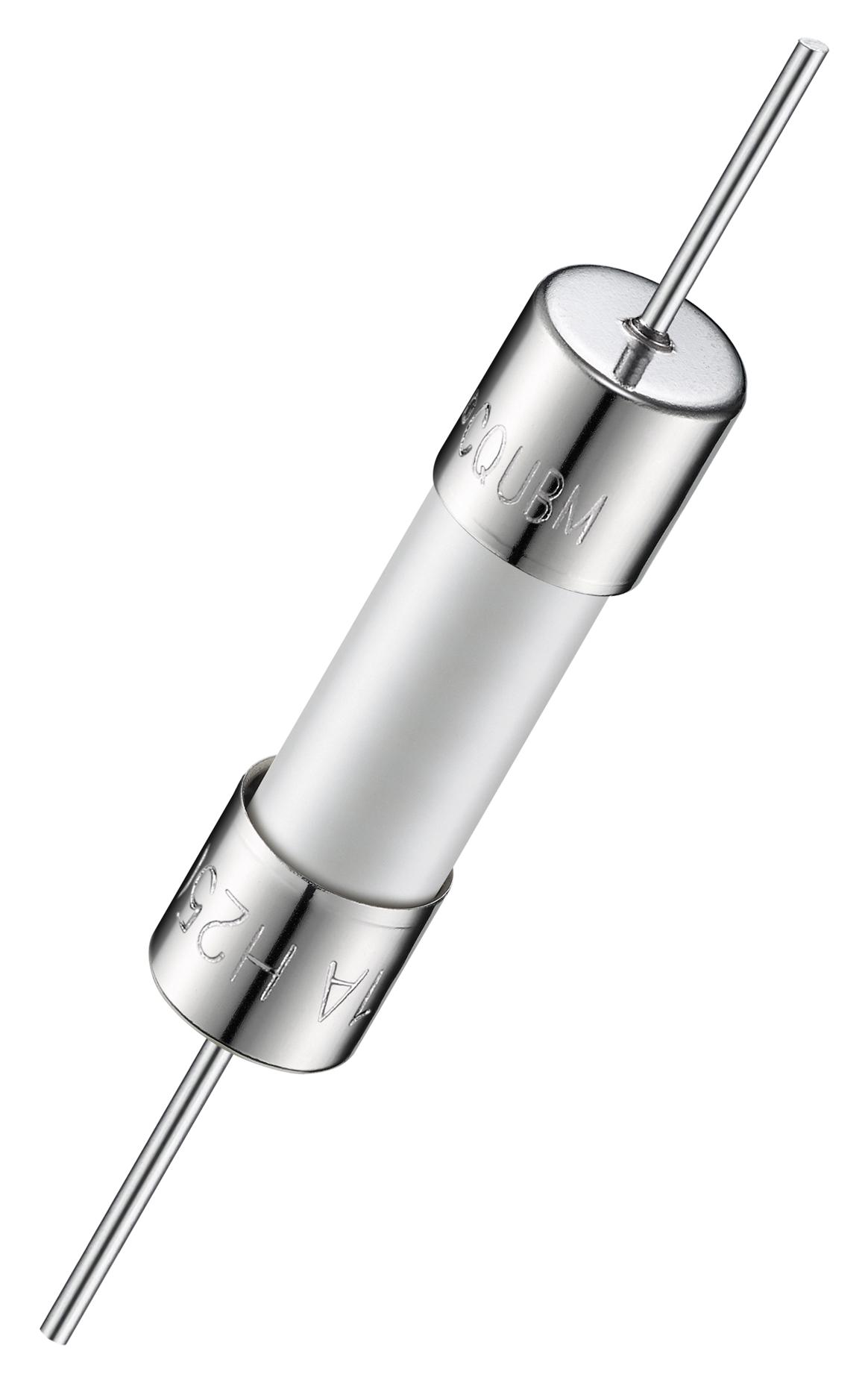

MULTICOMP-PRO MP005702 Ceramic Cartridge Fuse
The fast-acting ceramic cartridge fuse is designed for quick circuit protection in electronic devices. Measuring 8.2mm x 20mm, these axial leaded fuses feature a ceramic body with nickel-plated brass caps and robust leads suitable for high-reliability applications. They are RoHS compliant, recognized in US and Canada, with agency approvals for 1A to 10A ratings. Capable of interrupting up to 1500 amperes at 250V AC, they operate efficiently within -55°C to +125°C, ensuring safety and durability in diverse electrical environments.
MULTICOMP-PRO MP005702 Ceramic Cartridge Fuse Specifications:
- Body Material: Ceramic
- Caps: Nickel Plated Brass
- Leads: @0.65 mm wire for 6.3A and less, 0.8 mm for 8A/10A
- Dimensions: 8.2mm x 20mm
- Operating Temperature: -55°C to +125°C
- Interrupting Rating: 1500 amperes at 250V AC
- Agency Approvals: Recognized in US and Canada, TUV, PSE, KTL, ccc
- Ampere Ratings: 1A to 10A
- Nominal Cold Voltage: Varies from 200V to 1000V depending on rating
- Resistance Drop: 0.0098 to 0.0937 ohms
- Maximum Melting Curves: 1000 cycles
Buy the Buy Multicomp Ceramic Cartridge Fuse Part Number MP005702 Online
Order the Multicomp ceramic cartridge fuse MP005702 online for dependable circuit protection in electronic equipment. These axial leaded fuses feature a ceramic body with nickel-plated brass caps, rated from 1A to 10A, capable of interrupting 1500A at 250V AC. Suitable for diverse applications, they operate efficiently from -55°C to +125°C, ensuring safety and durability. With recognized certifications and RoHS compliance, these fuses provide reliable performance in both industrial and consumer electronics, making them an excellent choice for engineers and technicians.
Get Multicomp ceramic cartridge fuse MP005702 today—designed for high-speed circuit protection and long-lasting reliability.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MP005702?
You can click on the BUY or RFQ button to purchase MP005702 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MP005702?
You can download the MP005702 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MP005702?
MULTICOMP-PRO
