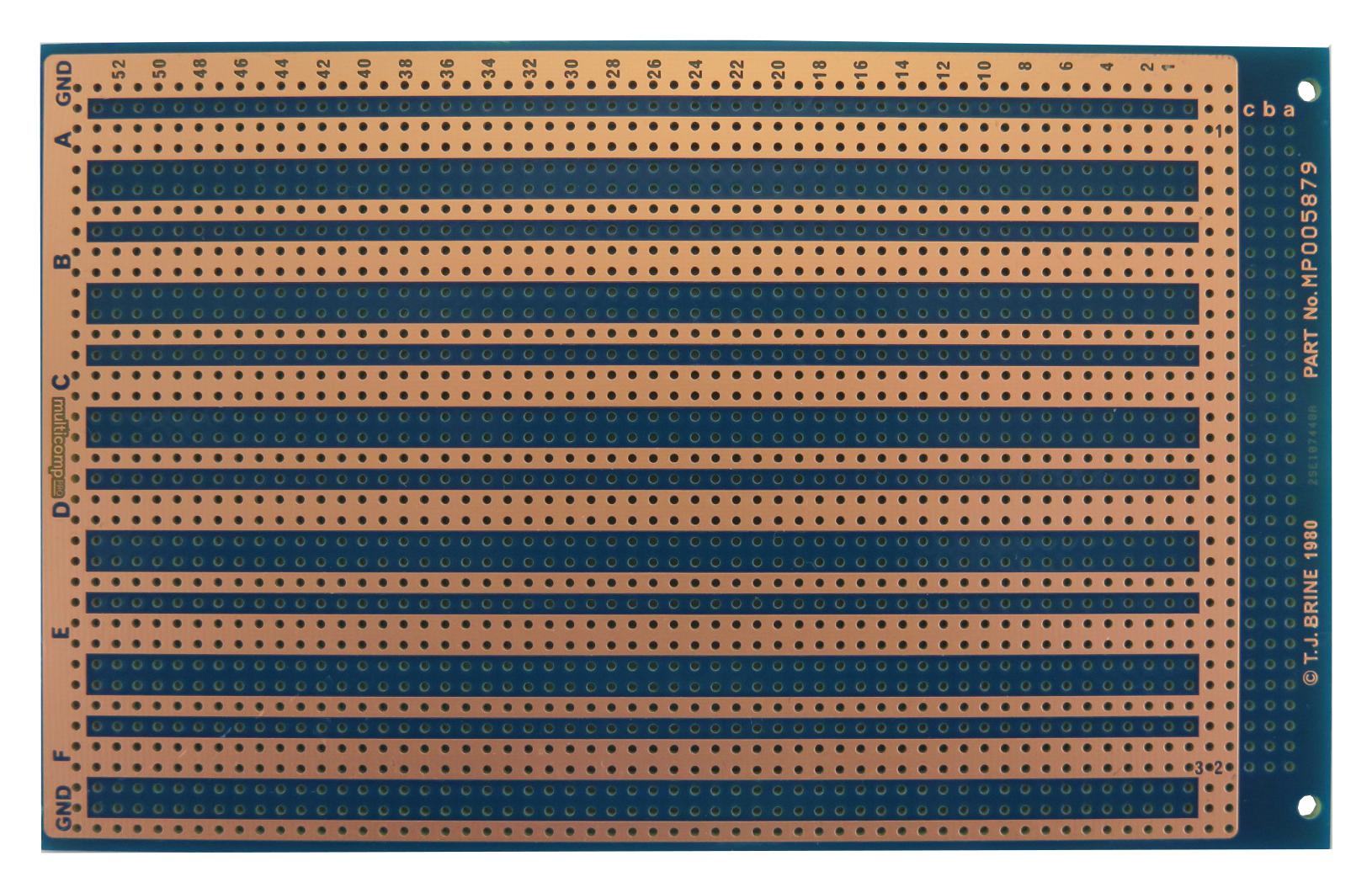

MULTICOMP-PRO MP005879 High-Density Prototyping Board
High-density prototyping eurocard circuit boards designed for rapid wiring and high-speed point-to-point connections, suitable for DIL ICs and microprocessors. These versatile, double-sided, 3-plane boards feature copper ground planes, power rails, and hole matrices for flexible wiring options. Constructed from epoxy glass or FR4 with a 1.6mm thickness, copper thickness of 1 oz, and protected by organic solderability preservatives. Equipped with DIN 41612 connector holes at one end for easy mounting in various prototyping applications, supporting wire wrapping and discrete component installation.
MULTICOMP-PRO MP005879 High-Density Prototyping Board Specifications:
- Board Size: 100mm x 160mm
- Board Thickness: 1.6mm
- Hole Size: 1.02mm
- Hole Matrix: 2.54mm x 2.54mm
- Copper Thickness: 1 oz/ft² or 35 microns
- Material: Epoxy glass or FR4
- Number of PCB Planes: 3
- Copper Pattern: Ground plane marked ‘GND’ and power rails ‘VCC’ and ‘GND’
- Protective Coating: Organic solderability preservatives (OSP)
- Connector Mounting: DIN 41612 holes at one end (32/64/96-way)
- Wiring: Suitable for wire wrapping or discrete components
- RoHS Compliant
Buy the Premier Farnell MP005879 – Reliable High-Density Prototyping for Industrial Applications
Secure your high-density eurocard circuit board online today. Designed for flexible, high-speed prototyping, this double-sided, three-plane board supports wire wrapping and component wiring, perfect for microprocessors and DIL ICs. Featuring copper ground and power planes, DIN connector holes, and made from durable epoxy glass or FR4 with protective OSP coating. With precise hole sizes, board dimensions of 100mm x 160mm, it ensures reliable connections for industrial applications. Order now for fast delivery and enhance your prototyping efficiency.
Order your Premier Farnell series MP005879 high-density eurocard today and enhance your microprocessor and high-speed prototyping projects with dependable performance.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MP005879?
You can click on the BUY or RFQ button to purchase MP005879 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MP005879?
You can download the MP005879 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MP005879?
MULTICOMP-PRO
