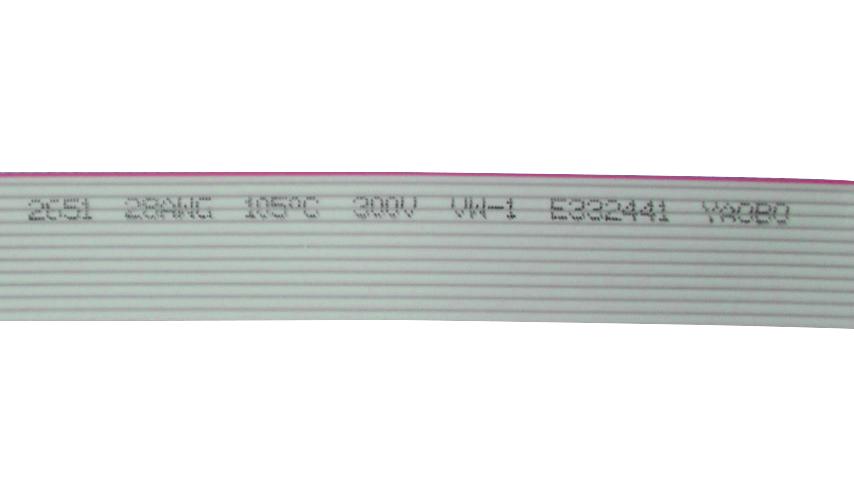

MULTICOMP PRO R2651DTSY14SC85 Ribbon Cable
This 28AWG grey ribbon cable with a 1.27mm pitch is ideal for internal wiring in appliances and electronic equipment. Constructed with tinned copper conductors and PVC insulation rated at 105°C and 300V, it offers reliable performance and flexibility. Available in various core counts up to 64, each cable features precise dimensions, high tensile strength, excellent insulation resistance, and compliance with UL and RoHS standards. Suitable for applications requiring durable, low-voltage wiring solutions with consistent quality and performance.
MULTICOMP PRO R2651DTSY14SC85 Ribbon Cable Specifications:
- Wire Gauge: 28AWG
- Pitch: 1.27 ± 0.15mm
- Conductor Construction: 7/0.127 ± 0.005mm tinned copper
- Conductor Diameter: 0.38mm
- Material: PVC insulation, rated at 105°C and 300V
- Minimum Thickness: 0.23mm
- Insulation Thickness: 0.26mm
- Rated Temperature: 105°C
- Rated Voltage: 300V
- Tensile Strength: unaged 1500PSI, aged 1290PSI (85%)
- Voltage Withstand: 2500V for 1 min
- Contact Resistance: max 237Ω/kM at 20°C
- Insulation Resistance: min 100MΩ/kM at 20°C
- UL and RoHS compliant
- Applicable Standards: UL758, UL1581, C22.2
Buy the Premier Farnell Series Pro-POWER: R2651DTSY14SC85
Enhance your electronic assembly with the high-quality 28AWG grey ribbon cable featuring a 1.27mm pitch. Designed for internal wiring in appliances and electronic devices, this durable cable uses tinned copper conductors with PVC insulation rated at 105°C and 300V, meeting UL and RoHS standards. Available in configurations from 6 to 64 cores, each cable ensures excellent electrical performance, high tensile strength, and insulation resistance. Perfect for precise, reliable, and safe wiring in professional and hobbyist projects.
Order your Premier Farnell Series Pro-POWER R2651DTSY14SC85 today and ensure reliable low-voltage internal wiring for your electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO R2651DTSY14SC85?
You can click on the BUY or RFQ button to purchase R2651DTSY14SC85 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part R2651DTSY14SC85?
You can download the R2651DTSY14SC85 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of R2651DTSY14SC85?
MULTICOMP PRO
