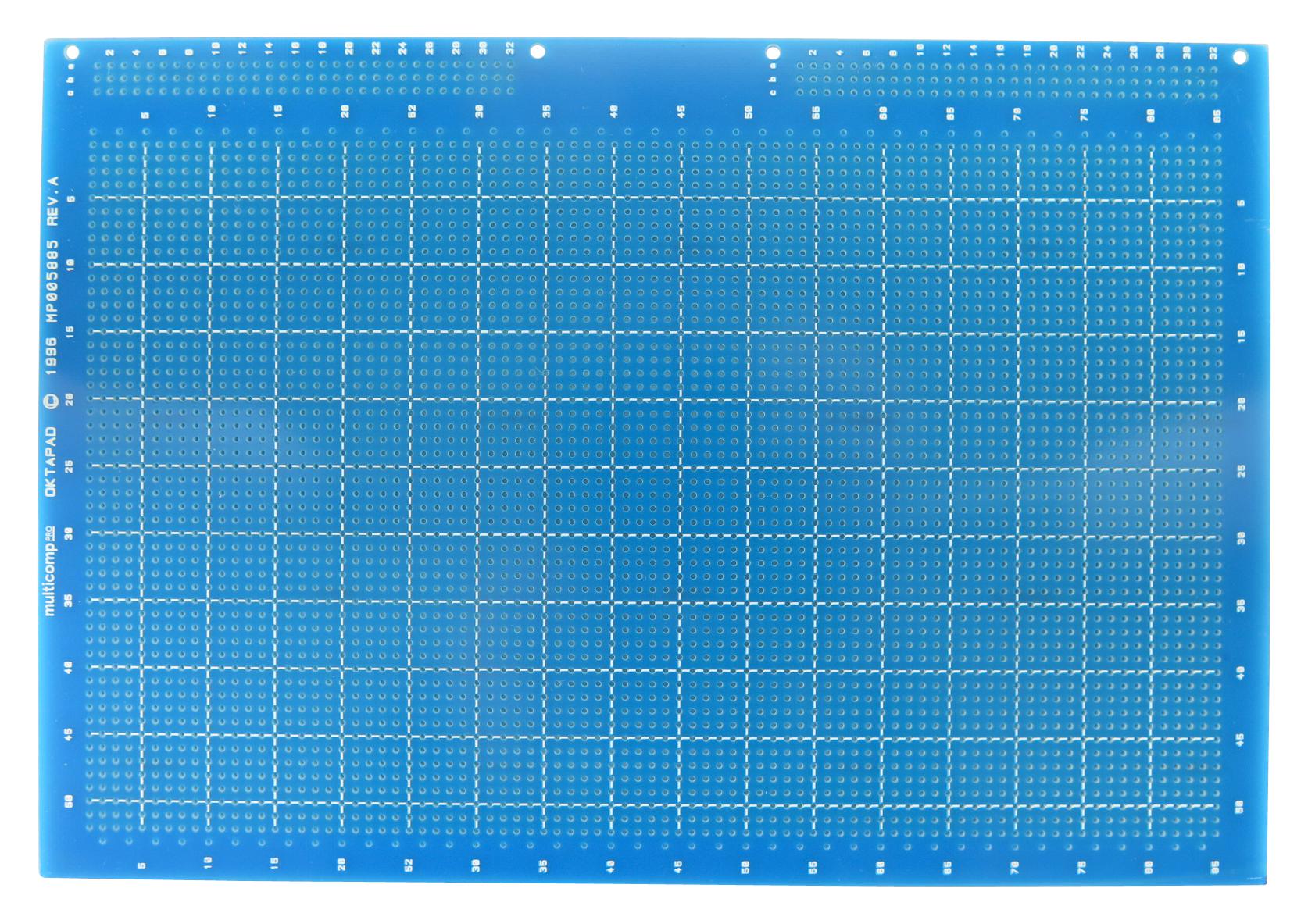

MULTICOMP PRO MP005885 Eurocard Circuit Board
This series of general-purpose prototyping Eurocard circuit boards includes single and double-sided options, with 3U and 6U heights. Designed for versatility, these boards accommodate various component packing densities and wiring techniques like wire wrapping or discrete wiring. Features include octagonal pads for large solder surfaces, silk-screen references on the component side, and hole matrix identification on the solder side. Made from epoxy glass or FR4 material, they include DIN 41612 connector mounting holes and a copper thickness of 1 oz/ft², making them ideal for flexible prototyping and assembly.
MULTICOMP PRO MP005885 Eurocard Circuit Board Specifications:
- Format: Eurocard 6U - 223.4mm x 160mm
- Material: Epoxy glass or FR4
- Board Thickness: 1.6mm
- Copper Thickness: 1 oz/ft² (35 microns)
- Hole Size: 1.02mm
- Hole Matrix: 2.54mm x 2.54mm
- Pads: Octagonal style for large solder surfaces
- Surface Coating: Organic Solderability Preservative (OSP)
- Connector Mounting Holes: DIN 41612, 32/64/96 way
- Usage: Wire wrapping or discrete component wiring, general-purpose prototyping
- Ground Plane: Colander for double-sided boards
- Silkscreen: Component reference on side, grid references on solder side
Buy the Multicomp Series Eurocard Circuit Board: MP005885
Enhance your prototyping projects with this versatile Eurocard circuit board series, suitable for various electronic assemblies. These boards feature octagonal pads for easy soldering, silk-screen references for component placement, and DIN 41612 connector holes, facilitating efficient wiring and testing. Made from durable FR4 or epoxy glass, with copper thickness of 1 oz/ft², they ensure long-lasting reliability. Perfect for general-purpose industrial applications, these boards support wire wrapping and discrete wiring techniques for custom prototypes and complex circuits.
Get Multicomp Eurocard circuit board MP005885 today—designed for flexible, reliable prototyping with large solder pads and versatile wiring options.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP005885?
You can click on the BUY or RFQ button to purchase MP005885 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP005885?
You can download the MP005885 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP005885?
MULTICOMP PRO
