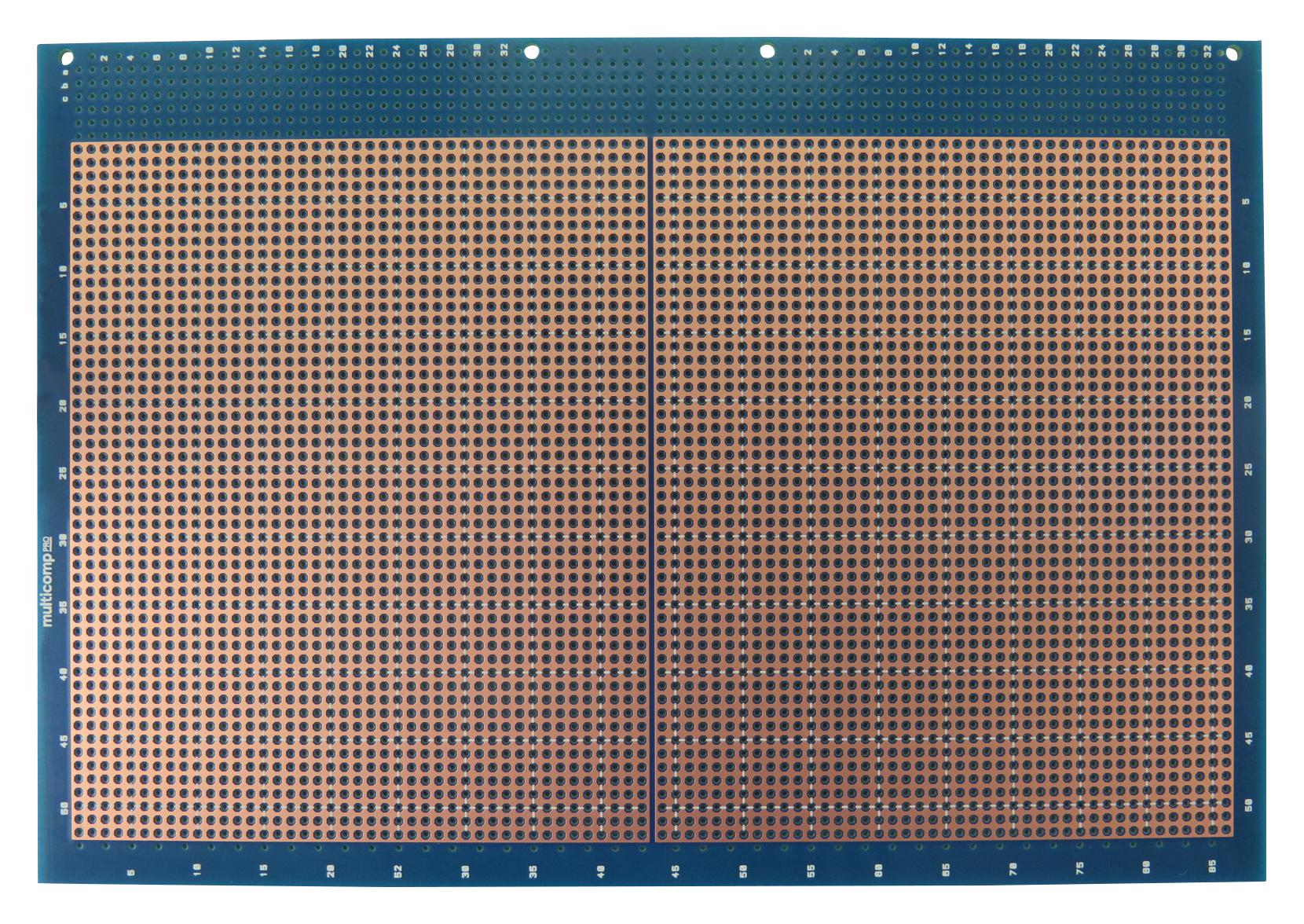

MULTICOMP PRO MP005894 Eurocard Circuit Board
The Double Height Eurocard Series is a versatile prototyping circuit board measuring 6U with dimensions of 233.4mm by 160mm. Made from epoxy glass or FR4, it features a copper thickness of 1 oz/ft² (35 microns) and a hole matrix of 2.54mm with 1.02mm holes. The PCB incorporates a unique Oktapad™ strip format with a colander ground plane for maximum screening, silkscreen reference, and DIN 41612 connector mounting holes. Suitable for wire wrapping or discrete wiring, it supports multi-layer configurations and RoHS compliance, making it ideal for electronic prototyping and custom circuit development.
MULTICOMP PRO MP005894 Eurocard Circuit Board Specifications:
- Board dimensions: 233.4mm x 160mm
- Board thickness: 1.6mm
- Material: epoxy glass or FR4
- Copper Thickness: 1 oz/ft² or 35 microns
- Hole matrix: 2.54mm x 2.54mm
- Hole size: 1.02mm
- Copper Plating: Organic Solderability Preservatives (OSP)
- Format: Double height 6U, 3.81mm gap in the center
- Connector Mounting: DIN 41612 32/64/96 way
- Designed for wire wrapping or component wiring
- RoHS Compliant
- Unique Oktapad™ strip format with colander ground plane
- Silkscreen reference on component side
Buy the Buy MultiComp Pro Eurocard Part Number MP005894 Online
Purchase the MultiComp Pro Eurocard circuit board online today to accelerate your electronic prototyping projects. Featuring a double height 6U design, it offers a unique Oktapad™ format, high-quality copper layered construction, and compatibility with wire wrapping and discrete wiring methods. Its RoHS compliance ensures environmentally safe manufacturing. The board includes DIN 41612 connector mounting holes, pre-drilled for easy installation. Suitable for complex circuit development, this PCB is ideal for engineers looking for durable, professional-grade prototyping solutions available conveniently online.
Order your MultiComp Pro Eurocard MP005894 today and enhance your electronic prototyping with reliable, high-quality circuit boards designed for professional use.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP005894?
You can click on the BUY or RFQ button to purchase MP005894 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP005894?
You can download the MP005894 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP005894?
MULTICOMP PRO
