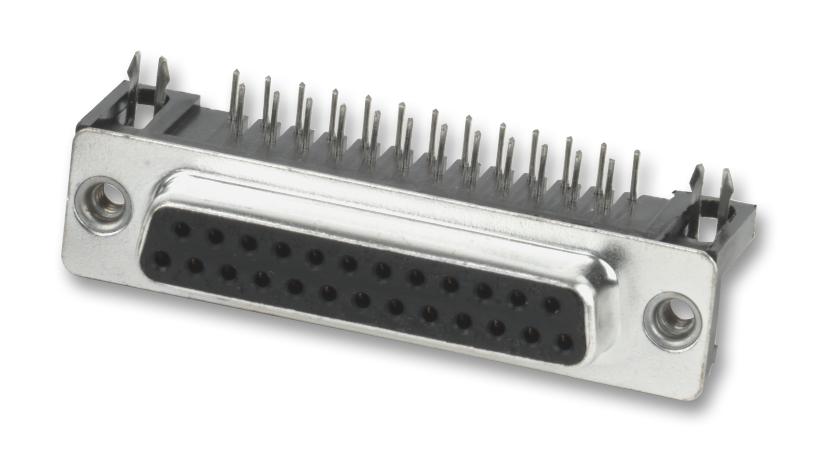

MULTICOMP PRO 5504F109S0203F1 D-Sub Connector
The 5504F1 series from Multicomp Pro offers right-angled PCB mount D-sub connectors suitable for various electronic projects. Featuring brass contacts with gold and tin/lead plating, these connectors support current ratings of 5A and voltage ratings of 250VAC/DC. Made with durable glass-filled thermoplastic insulators, they operate efficiently within -55°C to 105°C. The series includes models with contact counts from 9 up to 37 pins. They ensure excellent electrical insulation and mechanical durability, making them ideal for reliable high-quality connections in industrial and electronic applications.
MULTICOMP PRO 5504F109S0203F1 D-Sub Connector Specifications:
- Material: Insulator - Glass-filled Thermoplastic, Contact - Brass (Pin), Phosphor Bronze (Socket), Metal Shell - Carbon Steel
- Finish: Insulator - Black, Contact - Gold over Nickel, Termination - Tin/Lead over Nickel, Shell - Nickel and Zinc Chromate Coating
- Electrical: Contact Resistance - 20mΩ at 1A, Insulation Resistance - 1000MΩ at 500V DC, Dielectric Voltage - 1000V AC, Current - 5A per contact, Voltage - 250V AC/DC
- Mechanical: Insertion Force - 540g max., Withdrawal Force - 60g min., Durability - 125 cycles at 15u
- 250
- Dimensions: Contact count varies from 9 to 37 pins, with dimensions of 30.8mm to 69.3mm, depending on model, standard Millimeter measurements.
Buy the Buy Multicomp Right Angle PCB Mount D-Sub Connectors Part Number 5504F109S0203F1 Online
Enhance your electronic assembly with the high-quality Multicomp D-Sub right-angle connectors. Designed for durable, reliable PCB connections, they support current ratings of 5A and operate at voltages up to 250VAC/DC. Made with brass contacts, these connectors resist wear and corrosion while providing excellent electrical insulation. Available in models with 9 to 37 pins, they feature robust thermoplastic insulators and plated finishes for longevity. Perfect for industrial electronics, they ensure quick installation and dependable performance in demanding environments.
Order your Multicomp Series5504F109S0203F1 right-angle PCB mount D-sub connector today and ensure reliable, secure electrical connections for your projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 5504F109S0203F1?
You can click on the BUY or RFQ button to purchase 5504F109S0203F1 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 5504F109S0203F1?
You can download the 5504F109S0203F1 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 5504F109S0203F1?
MULTICOMP PRO
