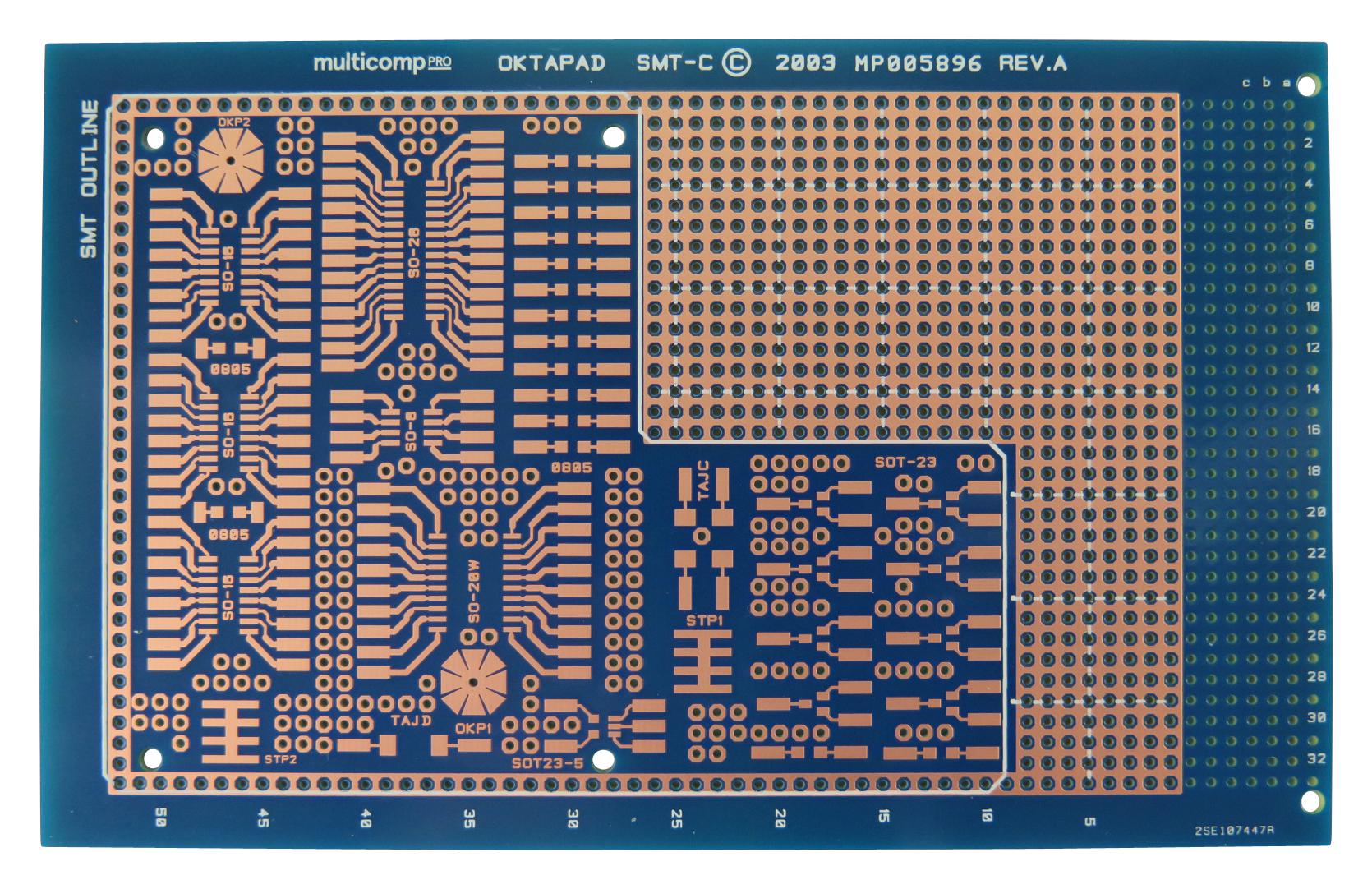

MULTICOMP PRO MP005896 Eurocard Prototype Board
The Oktapad Surface Mount Technology Eurocard is a 3U prototype development board designed for combining Surface Mount Devices with conventional components. It features a single height, double-sided PCB with SMD footprints, fan-outs for wiring, and a colander ground plane. The board facilitates experimental wiring techniques, includes fixing holes for piggy-back boards, and has DIN 41612 connector mounting options. Made from epoxy glass or FR4 with a 1.6mm thickness, it supports 102z/ft copper thickness, integrates protective OSP coating, and ensures RoHS compliance for reliable electronic prototyping.
MULTICOMP PRO MP005896 Eurocard Prototype Board Specifications:
- Board Dimensions: 100mm x 160mm
- Board Thickness: 1.6mm
- Material: Epoxy glass or FR4
- Copper Thickness: 35 microns or 305g/m²
- SMD Footprints: Popular patterns on both sides
- Hole Size: 1.02mm with 2.54mm spacing
- Pin Headers: DIN 41612 with 32/64/96 ways
- Fixing Holes: 4 for piggy-back attachment
- Ground Plane: Colander design covering component side copper
- Surface Coating: Organic solderability preservatives (OSP)
- RoHS Compliant: Yes
- Features: Fan-out solder pads, silkscreen, fixing holes, mounting holes
- Compatibility: DIN 41612 standards, RoHS compliant
Buy the Buy Multicomp Pro Eurocard Part Number MP005896 Online
Enhance your electronic prototyping capabilities with the Eurocard Prototype Board, offering dual-sided SMD footprints, easy wiring, fixings for piggy-back modules, and DIN 41612 connector compatibility. Made from durable FR4 or epoxy glass with a 1.6mm thickness, it features a colander ground plane, RoHS compliance, and protective OSP coating. Ideal for engineers and developers working on surface mount technology experiments, this board ensures flexibility, precision, and long-lasting performance for innovative circuit design and testing.
Get Multicomp Pro Eurocard MP005896 today—designed for versatile SMT prototyping and reliable electronic development.
