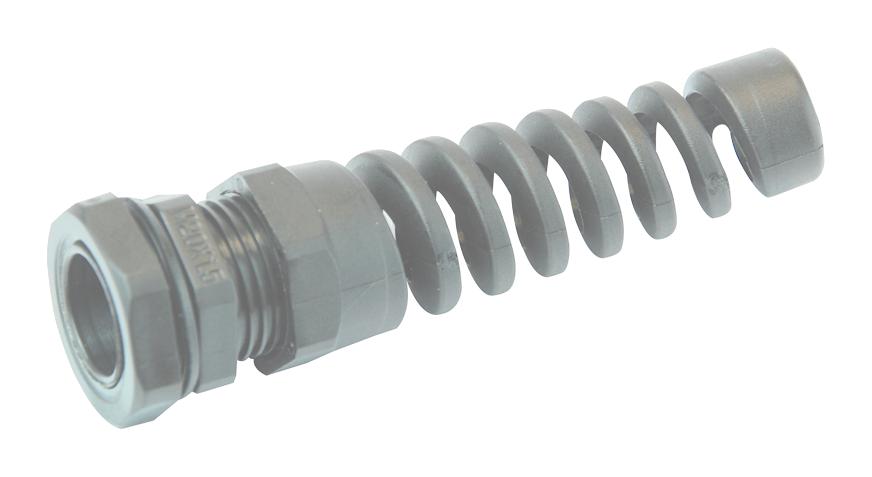

MULTICOMP PRO PP001709 Nylon Cable Glands
Nylon cable glands with strain relief offer robust protection and secure cable management for industrial and electrical applications. Made from UL 94 V-2rated PA (Nylon), these glands provide hermetic sealing with NBR and sealing with EPDM O-rings, ensuring water and dust resistance. Suitable for static and dynamic environments, they operate from -40°C to 100°C, with instantaneous heat resistance up to 120°C. Available in various sizes with IP68 rating, lock nut, and body seals for reliable, long-lasting cable termination in demanding conditions.
MULTICOMP PRO PP001709 Nylon Cable Glands Specifications:
- Material: PA (Nylon), UL 94 V-2
- Hermetic Seal: NBR
- O-Ring: EPDM
- Temperature Range: -40°C to 100°C in static state, up to 120°C heat resistance, -20°C to 80°C in dynamic state, up to 100°C heat resistance
- IP Rating: IP68
- Color: Grey and Black
- Dimensions vary per size, e.g., M12 x 1.5, 3-6.5mm, length 54mm; M16 x 1.5, 4-8mm, length 63mm; M20 x 1.5, 6-12mm, length 90mm; M25 x 1.5, 13-18mm, length 114mm
- Includes lock nut and sealing features for reliable sealing under demanding conditions
Buy the Buy Multicomp Nylon Cable Glands with Strain Relief Part Number PP001709 Online
Enhance your cable management system with Multicomp nylon cable glands offering superior strain relief and sealing. Designed with durable materials and rated IP68, these glands protect cables from dust, water, and mechanical stress. Suitable for static and dynamic environments, they operate from -40°C to 100°C, with heat resistance up to 120°C. Available in sizes from M12 to M25, these glands include necessary sealing components for long-lasting, reliable performance. Order online today for quality and durability in industrial applications.
Buy Multicomp nylon cable glands with strain relief now and ensure secure, waterproof cable connections in demanding industrial environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO PP001709?
You can click on the BUY or RFQ button to purchase PP001709 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part PP001709?
You can download the PP001709 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of PP001709?
MULTICOMP PRO
