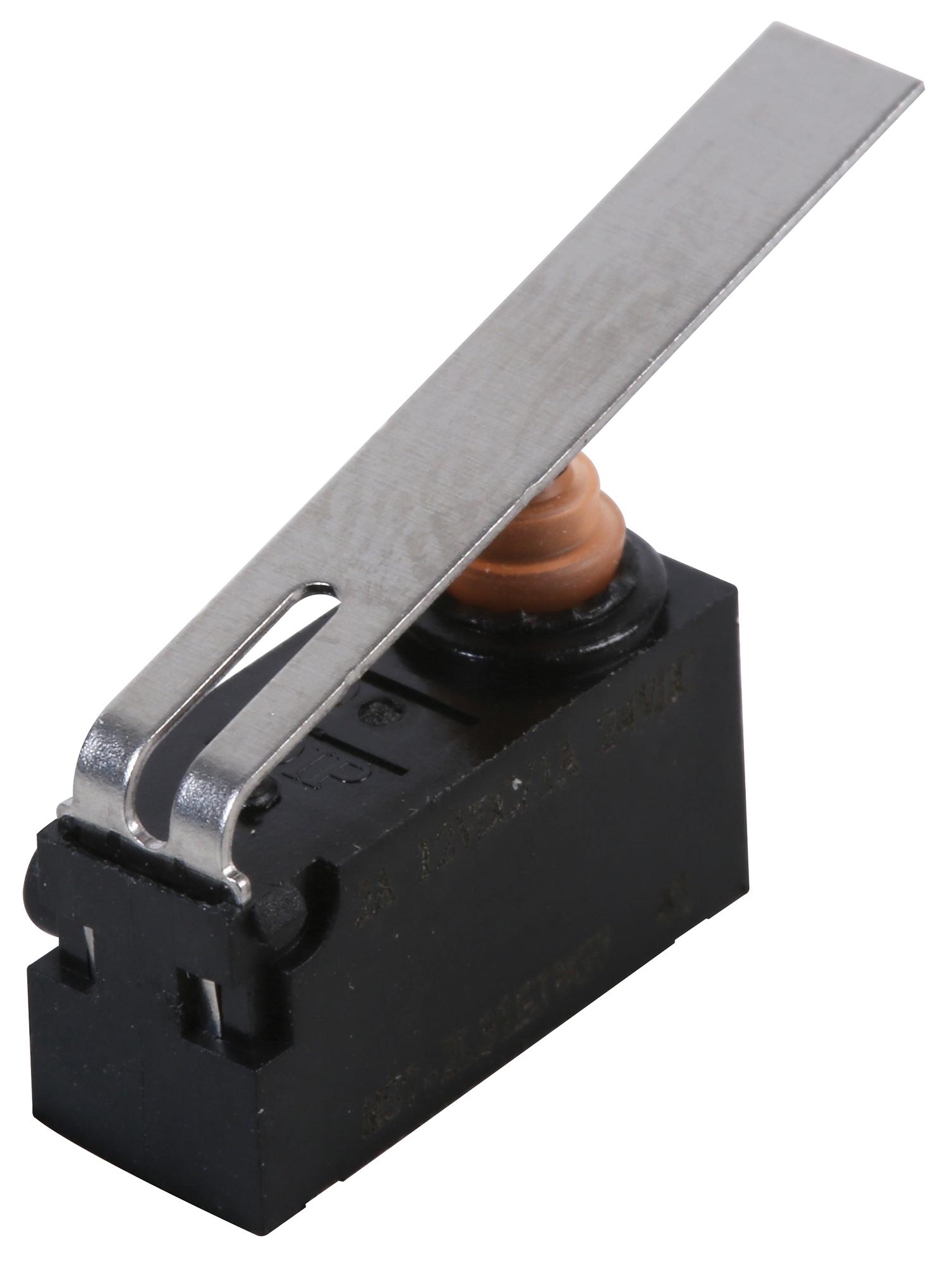

MULTICOMP PRO MP006217 Microswitch
This snap action microswitch features a long hinge lever and SPDT contact configuration, designed for reliable switching in various industrial applications. It operates over a temperature range of -40°C to +85°C, with mechanical durability exceeding 1 million cycles and electrical durability of at least 100,000 cycles. The robust construction includes RoHS compliance, with ratings up to 2A at 12V DC, making it ideal for automotive, household appliances, and vacuum cleaner controls. The device offers multiple actuator options, sealed IP67 for harsh environments, and versatile terminal configurations.
MULTICOMP PRO MP006217 Microswitch Specifications:
- Contact Rating: 2A at 12V DC, 1A at 24V DC
- Mechanical Durability: 1,000,000 cycles minimum
- Electrical Durability: 100,000 cycles minimum
- Contact Resistance: 150mΩ max
- Insulation Resistance: 100MΩ minimum at 500V DC
- Dielectric Strength: 600V AC between same polarity, 1500V AC to ground
- Operating Temperature: -40°C to +85°C
- Actuator Types: Pin Plunger, Long Hinge Lever, Simulated Roller Lever
- Sealing: IP67 sealed
- Rated Voltage: 12V DC
- Rated Current: 2A resistive load
- Overtravel: 1.4 to 2.5mm depending on model
- Total Travel: 5.1mm to 9.5mm depending on model
- Operating Force: 50 to 122gf
- Release Force: 3 to 10gf
- Terminal Types: Solder, Through-hole, Left or Right angled PCB
Buy the Multicomp Series Microswitch: SPDT Long Lever - MP006217
Order the Multicomp Series microswitch MP006217 online today. This high-quality, sealed IP67 microswitch with long hinge lever delivers durable performance for automation, automotive, and household devices. Its wide operating temperature range and high cycle durability ensure dependable operation in demanding environments. Perfect for applications requiring precise actuation and reliable switching, this SPDT microswitch offers excellent versatility with multiple actuator options and terminal configurations, making it an essential component for engineers seeking quality and durability in their designs.
Buy Multicomp series MP006217 microswitch now and experience unmatched reliability and performance in industrial control applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP006217?
You can click on the BUY or RFQ button to purchase MP006217 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP006217?
You can download the MP006217 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP006217?
MULTICOMP PRO
