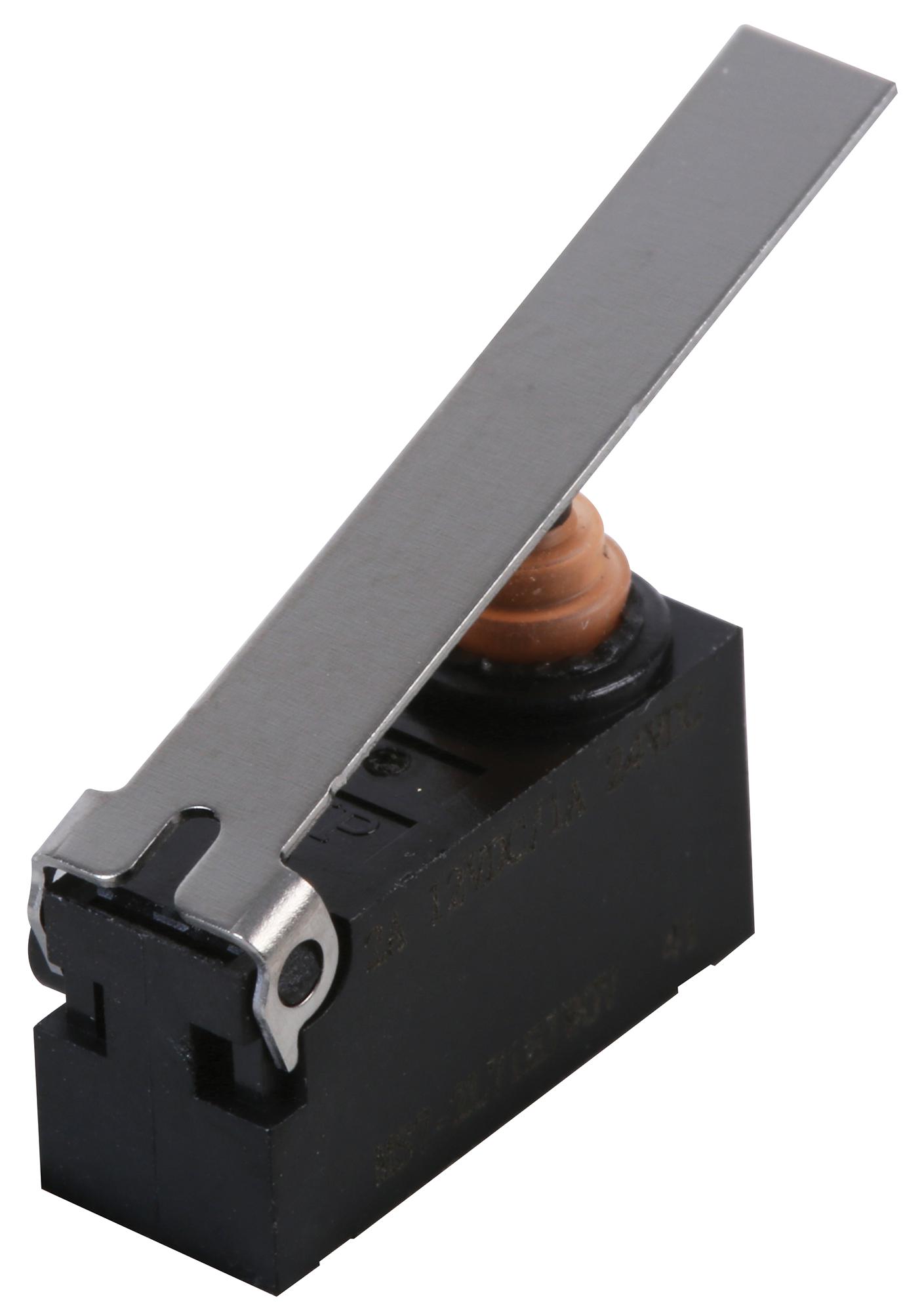

MULTICOMP PRO MP006219 Microswitch
These snap action microswitches are reliable industrial control components designed with various actuator options including pin plungers and levers. They feature a compact, sealed IP67 housing suitable for harsh environments, capable of thousands of electrical cycles, and rated for up to 12V DC and 2A resistive load. Their fast response and mechanical durability make them ideal for automation, household appliances, automotive, and vacuum cleaner applications. Offering stable performance across broad temperature ranges, these switches ensure dependable operation in demanding industrial and consumer sectors.
MULTICOMP PRO MP006219 Microswitch Specifications:
- Contact Rating: 2A at 12V DC / 1A at 24V DC
- Mechanical Durability: 1,000,000 cycles minimum
- Electrical Durability: 100,000 cycles minimum
- Contact Resistance: 150mΩ maximum
- Insulation Resistance: 100MΩ minimum at 500V DC
- Dielectric Strength: 600V AC between terminals, 1500V AC between terminals and ground
- Operating Temperature: -40°C to +85°C
- Housing: Sealed IP67
- Actuator options: Pin plunger, lever types (long hinge, roller) with various posts
- Rated Voltage: 12V DC, Resistive load 2A
- Overtravel: 1.4mm to 2.5mm depending on model
- Total travel: 5.1mm to 9.5mm depending on model
- Operating force: 50gf to 122gf depending on model
- Release force: 3gf to 10gf depending on model
- Contact forms: SPDT
- Terminals: Solder lug, PCB angled
Buy the Multicomp PRO MP006219 – Reliable Microswitch for Industrial Applications
Enhance your automation projects with the reliable Multicomp PRO MP006219 microswitch, featuring IP67 sealing for harsh environments, multiple actuator options, and rated for 12V DC and 2A resistive load. Engineered for high durability, this switch withstands over a million mechanical cycles, ensuring long-term operation in industrial, automotive, and household appliances. Its compact design, broad temperature range, and stable electrical characteristics make it ideal for demanding applications requiring precise switching with minimal maintenance. Obtain yours online today for dependable, high-performance control solutions.
Order your Multicomp PRO MP006219 series microswitch today and give your projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP006219?
You can click on the BUY or RFQ button to purchase MP006219 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP006219?
You can download the MP006219 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP006219?
MULTICOMP PRO
