MULTICOMP PRO MP006220 Snap Action Microswitch
These snap action microswitches are versatile, durable, and suitable for automation, automotive, and household applications. Featuring SPDT contact form, IP67 sealing, and various actuator options including pin plunger and lever types, they handle up to 2A at 12V DC resistive load. With mechanical durability of over 1 million cycles and electrical durability exceeding 100,000 cycles, they operate within -40°C to +85°C. Designed for through-hole or PCB mounting, these switches provide reliable switching with precise travel and force specifications for demanding industrial use.
MULTICOMP PRO MP006220 Snap Action Microswitch Specifications:
- Contact Rating: 2A at 12V DC, 1A at 24V DC
- Mechanical Durability: 1,000,000 Cycles min.
- Electrical Durability: 100,000 cycles min.
- Contact Resistance: 150mΩ max.
- Insulation Resistance: 100MΩ min. at 500V DC
- Dielectric Strength: 600V AC between terminals, 1500V AC ground isolation
- Operating Temperature: -40°C to +85°C
- Actuator options: Pin plunger, long hinge lever, simulated roller lever
- Sealed IP67 for outdoor and industrial applications
- Rated Voltage: 12V to 24V DC, Resistive Load up to 2A
- Overtravel: 1.4mm to 2.5mm depending on model
- Total Travel: 5.1mm to 9.5mm
- Operating Force: 50gf to 122gf
- Release Force: 3gf to 10gf
- Mounting: Through-hole, PCB terminals, or solder lug options
- Temperature range suitable for industrial environments

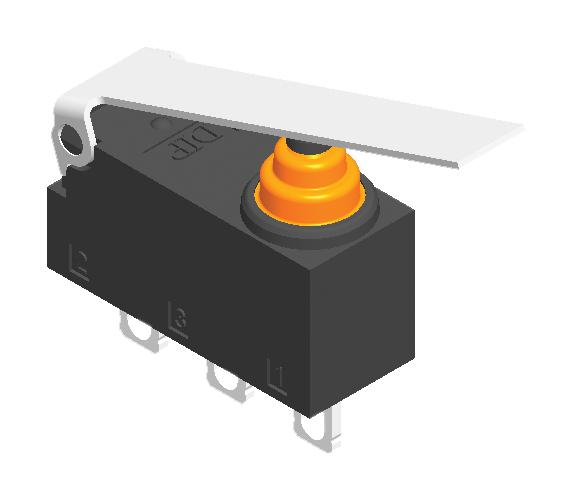

Buy the Buy multicomp Microswitch Part Number MP006220 Online
Purchase the versatile multicomp Snap Action Microswitch MP006220 online today to ensure reliable switching in industrial, automotive, and household applications. Designed with durable IP67 sealing, various actuator options, and rated for up to 2A at 12V DC, it offers long-lasting performance with over 1 million mechanical cycles. Its compact size and durable construction make it ideal for demanding environments, providing precise operation from -40°C to +85°C. Buy now for dependable, high-quality switching solutions that meet your automation and control requirements.
Buy multicomp MP006220 microswitch now and experience unmatched reliability, precise actuation, and durable performance for industrial and automation needs.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP006220?
You can click on the BUY or RFQ button to purchase MP006220 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP006220?
You can download the MP006220 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP006220?
MULTICOMP PRO
