MULTICOMP-PRO PP002596 Hook-Up Wire

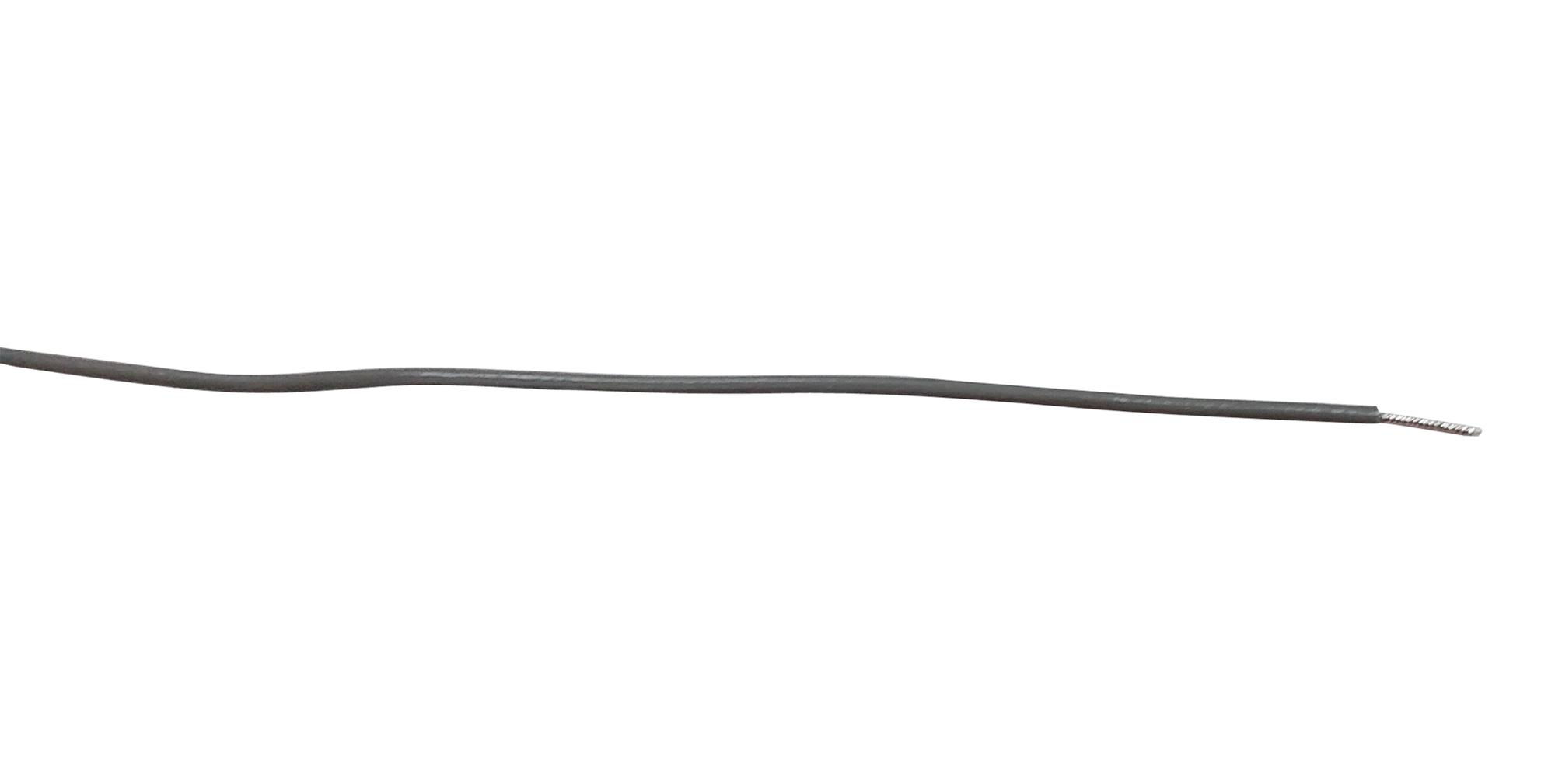

This UL1061 style stranded hook-up wire is designed for reliable electrical connections in various applications. Made from stranded tinned copper conductors and insulated with SR PVC, it offers high flexibility and durability. Rated at 280°C and 300V, it is suitable for environments requiring robust wiring solutions. Available in multiple colors and sizes, the wire comes in 305m reels or per metre lengths. Its construction ensures low resistance and excellent insulation properties, making it ideal for controlling circuits and electronic projects that demand safety and performance.
MULTICOMP-PRO PP002596 Hook-Up Wire Specifications:
- Conductor Material: Stranded Tinned Copper
- Insulator Material: SR PVC
- Rated Temperature: 280°C
- Rated Voltage: 300V
- Cable Length: Available in 305m Reel or in per metre length
- Wire Sizes: AWG 18, 20, 22, 24, 26 with varying strand counts
- Conductor Diameter: 1.21 mm (18 AWG), 0.95 mm (20 AWG), 0.76 mm (22 AWG), 0.61 mm (24 AWG), 0.49 mm (26 AWG)
- Resistance: 23.2 Ω/kM (18 AWG), 36.7 Ω/kM (20 AWG), 59.4 Ω/kM (22 AWG), 94.2 Ω/kM (24 AWG), 150 Ω/kM (26 AWG)
- Colors: Black, Brown, Red, Yellow, Green/Yellow, Blue, Grey, White, Orange
- Temperature Rating: 280°C
- Voltage Rating: 300V
Buy the Buy UL1061 Style Stranded Hook-Up Wire Part Number PP002596 Online
Enhance your electrical projects with high-quality UL1061 style stranded hook-up wire, featuring tinned copper conductors and SR PVC insulation. Rated at 280°C and 300V, available in multiple sizes and colors, this wire ensures reliable and safe connections. Whether for control panels, electronic devices, or complex wiring systems, its flexible stranded design provides easy installation. Choose from 305m reels or per metre lengths, equipped with certification for safety and durability. Order online today for fast delivery and trusted performance in all your electrical applications.
Order your UL1061 style stranded hook-up wire PP002596 today and ensure your electronic projects have dependable, high-quality wiring solutions.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO PP002596?
You can click on the BUY or RFQ button to purchase PP002596 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part PP002596?
You can download the PP002596 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of PP002596?
MULTICOMP-PRO
