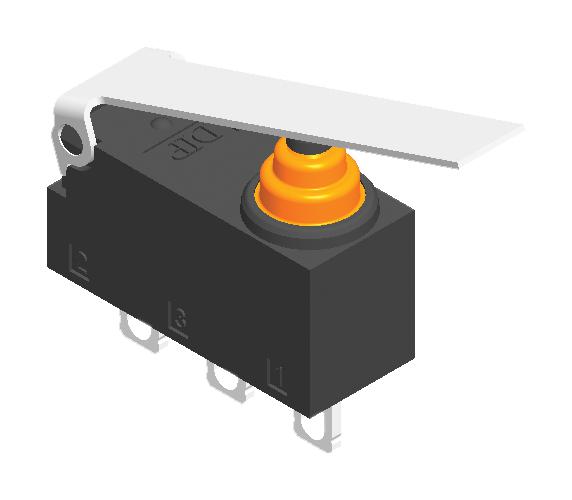

MULTICOMP PRO MP006223 Microswitch
These snap action microswitches are designed for reliable switching in various automation and control applications. Featuring SPDT contact form and multiple actuator options, they support high cycle durability with an operating force of 50gf to 122gf and operate at voltages up to 12V DC with resistive loads of 1A-2A. These IP67-sealed switches are suitable for automotive, household appliances, and vacuum cleaner controls, offering a wide temperature range from -40°C to +85°C. They come with through-hole terminals, long or short posts, and various lever types for flexible mounting and operation.
MULTICOMP PRO MP006223 Microswitch Specifications:
- Contact Rating: 2A at 12V DC, 1A at 24V DC
- Mechanical Durability: 1,000,000 cycles minimum
- Electrical Durability: 100,000 cycles minimum
- Contact Resistance: 150mΩ max
- Insulation Resistance: 100MΩ min at 500V DC
- Dielectric Strength: 600V AC between terminals, 1500V AC between terminals and ground
- Operating Temperature: -40°C to +85°C
- Actuators: Pin plunger, hinged lever, simulated roller lever
- Sealing: IP67
- Terminal Types: Solder, through-hole, PC board
- Size: Approximately 13.3mm x 5.3mm x 7.2mm
- Operating Force: 50gf to 122gf
- Total Travel: 5.1mm to 9.5mm depending on model
- Voltage Range: Up to 12V DC resistive load
- Cycle Life: Mechanical 1 million cycles, electrical 100,000 cycles
Buy the Multicomp Series Microswitches: MP006223
Purchase the Multicomp Series MP006223 microswitch online now and enhance your automation, automotive, or appliance projects. These high-quality IP67-sealed switches feature SPDT contact form, versatile actuators, and support voltages up to 12V DC with resistive loads of 1A or 2A. Designed for durability, they endure up to 1 million mechanical cycles and 100,000 electrical cycles, providing reliable performance in extreme temperatures from -40°C to +85°C. Ideal for varied applications, these switches come with solder or through-hole terminals, and multiple lever options for flexible installation.
Order your Multicomp Series MP006223 microswitch today and ensure reliable control in your automation and household applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP006223?
You can click on the BUY or RFQ button to purchase MP006223 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP006223?
You can download the MP006223 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP006223?
MULTICOMP PRO
