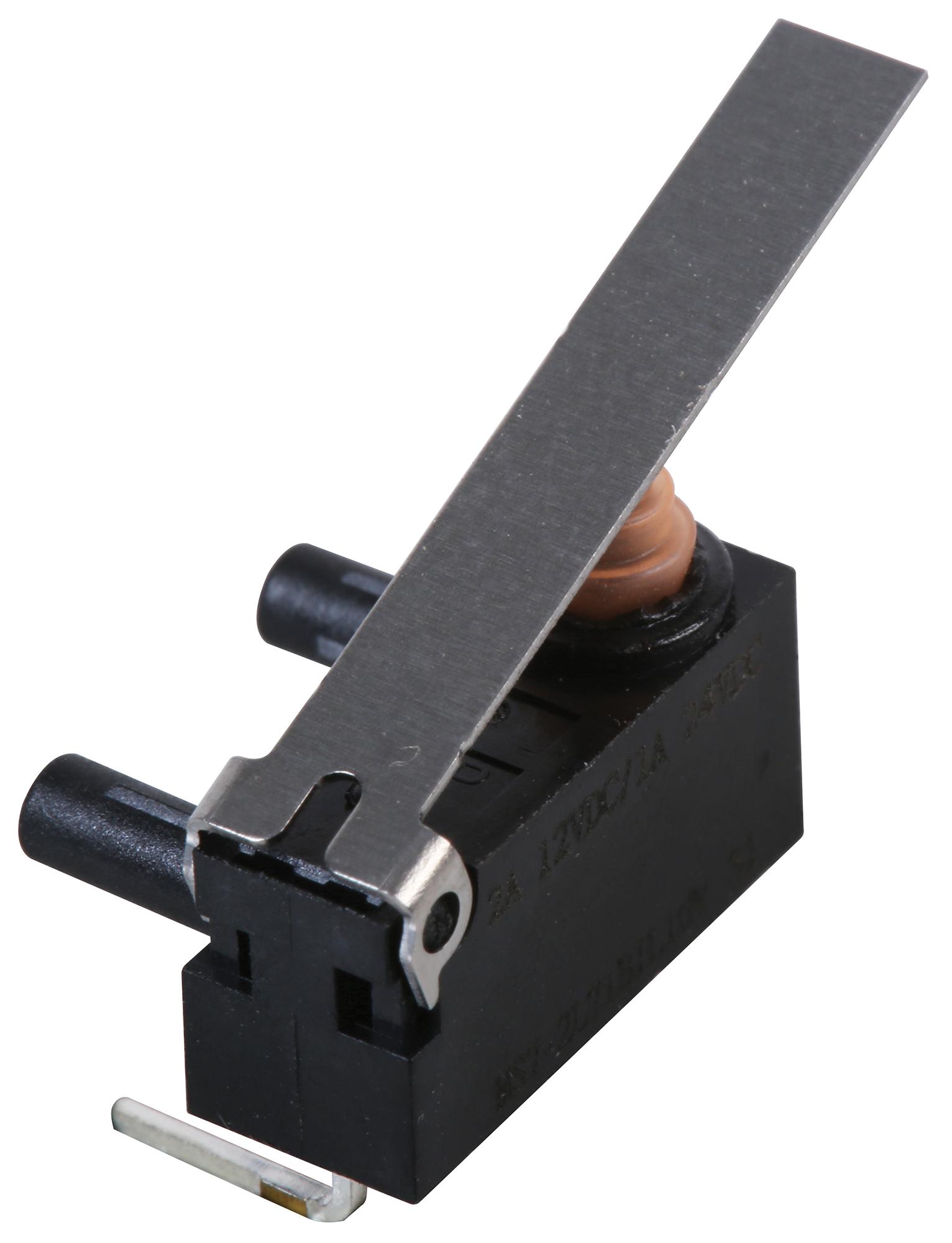

MULTICOMP PRO MP006232 snap action microswitch
This series of snap action microswitches offers reliable operation with various actuator options including pin plunger, long hinge lever, and simulated roller lever. Designed with a sealed IP67 rating, these switches are suitable for automotive, household appliances, and vacuum cleaner applications. They feature a contact rating of 2A at 12V DC, a mechanical durability of at least 1 million cycles, and an insulation resistance of 100MΩ. Operating temperature ranges from -40°C to +85°C, making them robust for demanding environments.
MULTICOMP PRO MP006232 snap action microswitch Specifications:
- Contact Rating: 2A at 12V DC / 1A at 24V DC
- Mechanical Durability: 1,000,000 Cycles Min.
- Electrical Durability: 100,000 cycles Min.
- Contact Resistance: 150mΩ Max.
- Insulation Resistance: 100MΩ Min. at 500V DC
- Dielectric Strength: 600V AC (between terminals of same polarity); 1500V AC (between terminals and ground or non-current parts)
- Operating Temp.: -40°C to +85°C
- Actuator Options: Pin Plunger, Long Hinge Lever, Simulated Roller Lever
- Sealing: IP67
- Rated Voltage and Load: 12V DC, 2A resistive load, 24V DC, 1A resistive load
- Overtravel: 1.4mm to 2.5mm depending on model
- Operating Force: 50g to 122g max.
- Release Force: 3g to 10g min.
- Total Travel: 5.1mm to 9.5mm depending on model
- Temperature Range: -40°C to +85°C
Buy the Buy multicomp snap action microswitches Part Number MP006232 Online
Order multicomp snap action microswitches Part Number MP006232 online today and enjoy fast delivery and competitive prices. These highly reliable switches feature IP67 sealing, various actuator options, and rated for 2A at 12V DC. Perfect for automotive, household, and industrial applications, they can withstand over 1 million actuation cycles. Operating from -40°C to +85°C, they provide excellent durability and dependability. Shop now to upgrade your equipment with premium quality, easy installation, and long-lasting performance.
Buy multicomp snap action microswitches Part Number MP006232 now and experience unmatched reliability and performance for automotive and household applications.
