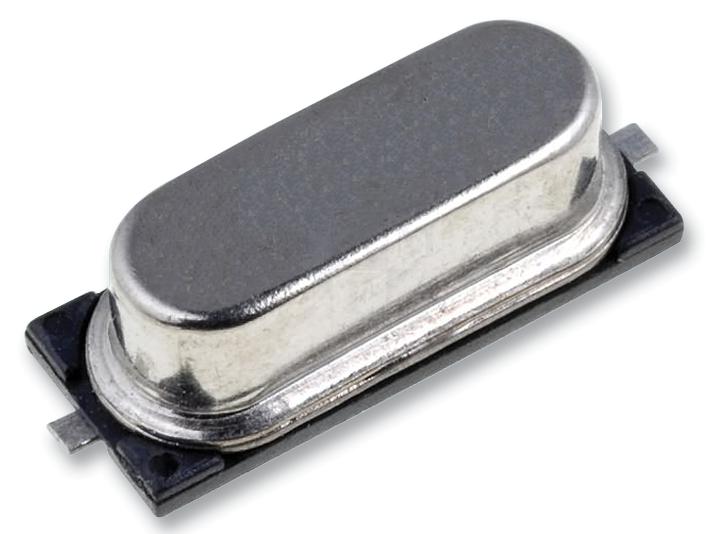

MULTICOMP PRO HC49SM2030506016ATF Crystal Oscillator
This high-performance crystal oscillator provides precise frequency stability across a wide temperature range, ideal for industrial, microcontrollers, and communication equipment. With low ESR and high Q factors, it ensures reliable timing signals in embedded systems. The ceramic package is ultra-thin, measuring only 1.4mm in height, making it perfect for space-constrained applications. It features a stable frequency tolerance of +20, +30, or +50ppm at 25°C, with an aging rate of +5ppm annually, ensuring long-term accuracy and durability in demanding environments.
MULTICOMP PRO HC49SM2030506016ATF Crystal Oscillator Specifications:
- Nominal Frequency Range: 10 to 30 MHz or 24 to 75 MHz
- Vibration Mode: Fundamental (AT) and 3rd/5th Overtone (AT)
- Frequency Tolerance at 25°C: +20, +30, or +50 ppm
- Temperature Stability: +30 or +50 ppm
- Operating Temperature Range: -10°C to +60°C, Option: -20°C to +70°C
- Storage Temperature Range: -20°C to +70°C, Option: -30°C to +80°C
- Load Capacitance: 8 pF to 32 pF or series
- Equivalent Series Resistance: Refer to ESR table
- Shunt Capacitance: 5 pF or 7 pF
- Drive Level: 200 μW maximum (<5 MHz), 100 μW maximum (>5 MHz)
- Insulation Resistance: 500 MΩ minimum at 100V DC
- Aging: +5 ppm per year
Buy the Multicomp HC49SM2030506016ATF – Reliable Crystals for Industrial Applications
Purchase the Multicomp crystal oscillator HC49SM2030506016ATF online today—designed for precision timing in industrial, microcontroller, and communication systems. Its ultra-thin, 1.4mm height ceramic package saves space, making it ideal for compact designs. Featuring a frequency range of 10 to 30 MHz and 50ppm stability, it ensures reliable operation even in harsh environments. Easy to install, robust, and cost-effective, this crystal is perfect for embedded applications, ensuring long-term accuracy and performance in demanding conditions.
Get Multicomp crystals HC49SM2030506016ATF today—built for precision and long-lasting durability.
Frequently Asked Questions
Where can I buy MULTICOMP PRO HC49SM2030506016ATF?
You can click on the BUY or RFQ button to purchase HC49SM2030506016ATF from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part HC49SM2030506016ATF?
You can download the HC49SM2030506016ATF datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of HC49SM2030506016ATF?
MULTICOMP PRO
