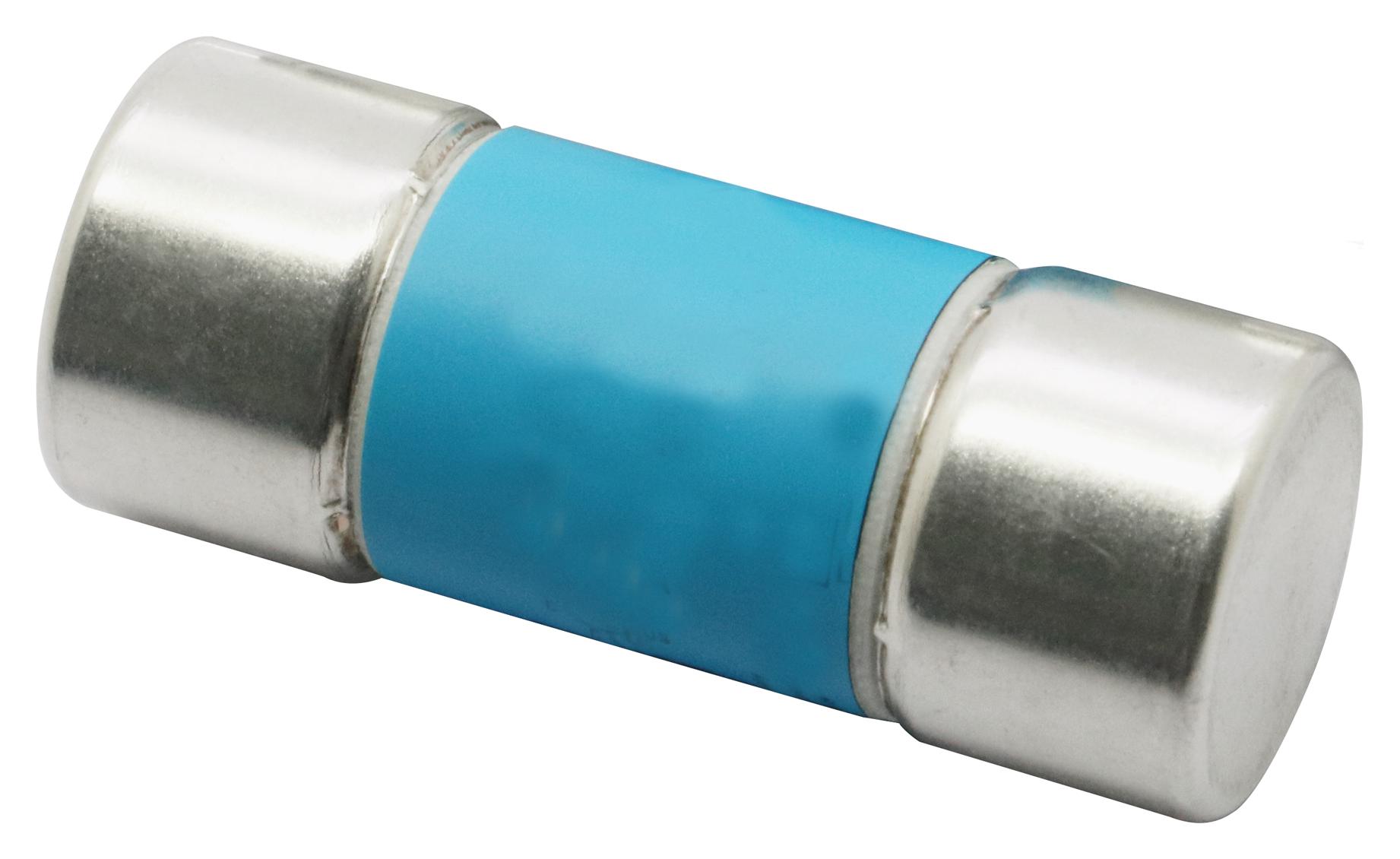

MULTICOMP PRO MP006257 Photovoltaic Fuse
The gPV Cartridge Fuse is designed for high-power photovoltaic applications, supporting DC voltages up to 1500V and currents from 20A to 45A. Featuring a glass-fiber body and silver-plated caps for enhanced conductivity, it provides reliable protection with a breaking capacity of up to 10 kA at 1500V DC. Suitable for DIN rail mounting with BH400 and BH401 holders, its compact size of 22mm x 58mm ensures quick installation and stability. Compliant with UL 248-19 and IEC 60269-6 standards, this fuse offers fast response times ranging from 1ms to 3ms, safeguarding solar power systems efficiently.
MULTICOMP PRO MP006257 Photovoltaic Fuse Specifications:
- Voltage Rating: 1500V DC
- Current Range: 20A to 45A
- Breaking Capacity: 10 kA at 1500V DC (1A to 65A)
- Body Material: Glass-fiber
- Cap Material: Silver-plated caps
- Dimensions: 22mm x 58mm
- Time Constant: 1ms to 3ms
- Standards: UL 248-19; IEC 60269-6
- Mounting: DIN rail with BH400, BH401 holders
- Approval: UL (File: E490190)
- Pre-Arcing Dissipation: 4.2W to 7.2W depending on current
- Fairly rapid response to overcurrent events
Buy the Buy Multicomp gPV Cartridge Fuse Part Number MP006257 Online
Secure your solar power system with the high-performance Multicomp photovoltaic fuse MP006257. This reliable fuse protects against overcurrent with a breaking capacity of 10 kA at 1500V DC, supporting 45A current ratings. Its compact 22mm x 58mm size, glass-fiber body, and silver-plated caps ensure durability and excellent conductivity. Easy to install on DIN rails using BH400 or BH401 holders, it adheres to UL and IEC standards, providing fast response times of 1ms to 3ms for efficient system protection. Buy now for peace of mind and optimal solar system safety.
Get Multicomp gPV Cartridge Fuse MP006257 today—designed for high-power PV systems with fast-acting protection and UL/IEC compliance.
