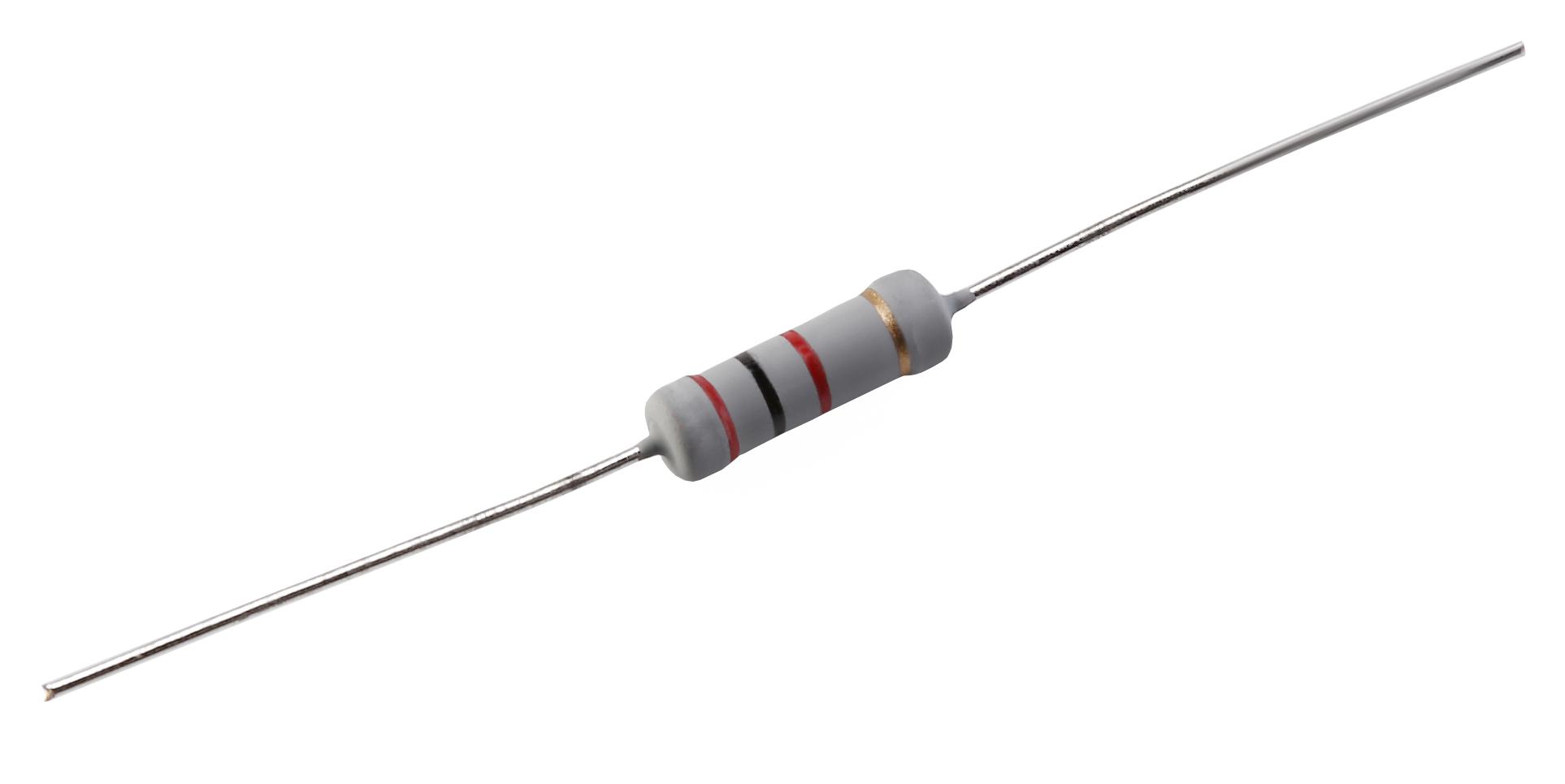

MULTICOMP PRO MP006434 Metal Oxide Film Resistor
This axial leaded metal oxide film resistor offers high stability, excellent overload capability, and resistance tolerance options of +2% and +5%. Suitable for telecommunications, medical equipment, and industrial applications, it features a ceramic rod body, tinned iron caps, and a durable metal oxide film. With a power rating of 1W and resistance values ranging from 1 ohm to 10 megaohms, it withstands high voltage surges, operates reliably across temperature ranges, and adheres to RoHS compliance standards, ensuring long-term stability and mechanical durability.
MULTICOMP PRO MP006434 Metal Oxide Film Resistor Specifications:
- Power Rating: 1W
- Resistance Range: 1Ω to 10MΩ (e.g., 1R, 2R, 3R, 2.2R, 220K, 10M)
- Resistance Tolerance: ±2% or ±5%
- Temperature Coefficient: Typically +200PPM/°C
- Dielectric Resistance: >10000MΩ
- Max Operating Voltage: 60V to 500V depending on resistance
- Overload Voltage: 2.5×(P×R) or max listed
- Environmental Testing: Endurance at 70°C, 1000hrs, ±1.5% change
- Insulation Resistance: >10,000MΩ
- Solderability: >95% coverage at 260°C for 0.5 sec
- Terminal Strength: 2-2.5kg tensile force
- RoHS Compliant
- Body Color: Grey, high power ratings available in Grey or Pink
- Dimensions: Length approx. 11.5mm, Diameter 1.0mm
- Leakage current minimal, resistant to solvents, suitable for high surge overloads.
Buy the Multicomp Metal Oxide Film Resistor – Reliable 1W for Industrial Applications
Enhance your electronic designs with our high-reliability metal oxide film resistors. With a 1W power rating and resistance options from 1 ohm to 10 megaohms, these resistors ensure excellent stability, overload capability, and precise tolerance standards of +2% or +5%. RoHS compliant, durable, and engineered for durability, they are ideal for telecommunications, medical equipment, and industrial automation. Purchase online today and benefit from fast delivery, competitive pricing, and premium quality components optimized for high-performance applications.
Buy Multicomp metal oxide film resistor MP006434 now and experience unmatched stability, overload capacity, and high reliability for your industrial and electronic projects.
