MULTICOMP-PRO HGBJ5008 Three-Phase Bridge Rectifier
The HGBJ5008 is a glass passivated three-phase bridge rectifier designed for power supply and input rectification in DC equipment and PWM converters. Featuring a high-reliability glass passivated chip, it offers low forward voltage drop, insulation voltage of 2,500V, small size, and high thermal conductivity for efficient heat dissipation. Its robust construction supports maximum repetitive voltage of 800V, and it can withstand surge currents up to 450A, making it suitable for high-power applications such as DC motor drives and AC/DC power supplies. The device operates within -55°C to +150°C temperature range and is ideal for industrial power conversion systems.
MULTICOMP-PRO HGBJ5008 Three-Phase Bridge Rectifier Specifications:
- Peak Repetitive Voltage VRRM: 800V
- Peak Non-Repetitive Reverse Voltage VrsM: 900V
- Maximum Average Forward Rectified Current Iw: 50A
- Peak Forward Surge Current Irsm: 450A
- Maximum Forward Voltage Drop at Vr: 14V
- Reverse Peak Current Vr: 5pA at 25°C, 3mA at 150°C
- Isolation Voltage Viso: 2,500V
- Thermal Resistance (junction to case): 0.8°C/W
- Operating Temperature Range: -55°C to +150°C
- Weight: 10g
- Dimensions (Inches): 1.874 x 0.829 x 0.126
- Dimensions (Millimeters): 47.6 x 21.0 x 3.2

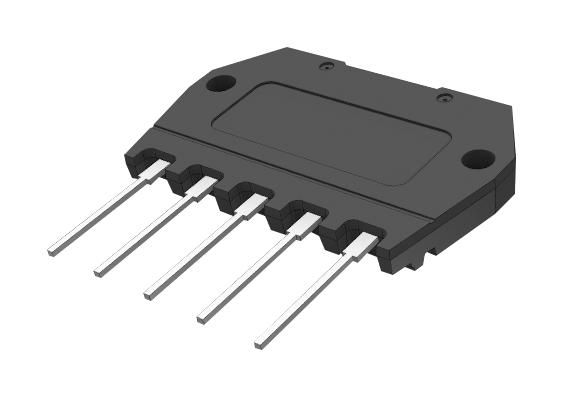

Buy the Multipicomp Series HGBJ Power Bridge Rectifier: HGBJ5008
Purchase the Multicomp Series HGBJ5008 three-phase bridge rectifier online today for high-performance power conversion solutions. This robust device features high reliability, a maximum repetitive voltage of 800V, surge current capability of 450A, and a compact design suitable for industrial applications such as power supplies, DC motor control, and rectification systems. With an insulation voltage of 2,500V and a wide temperature range of -55°C to +150°C, it ensures efficient operation and long-term durability in demanding environments. Get yours now and enhance your power systems with proven quality and efficiency.
Order your Multicomp Series HGBJ5008 three-phase bridge rectifier today and ensure reliable power conversion for your industrial projects.
