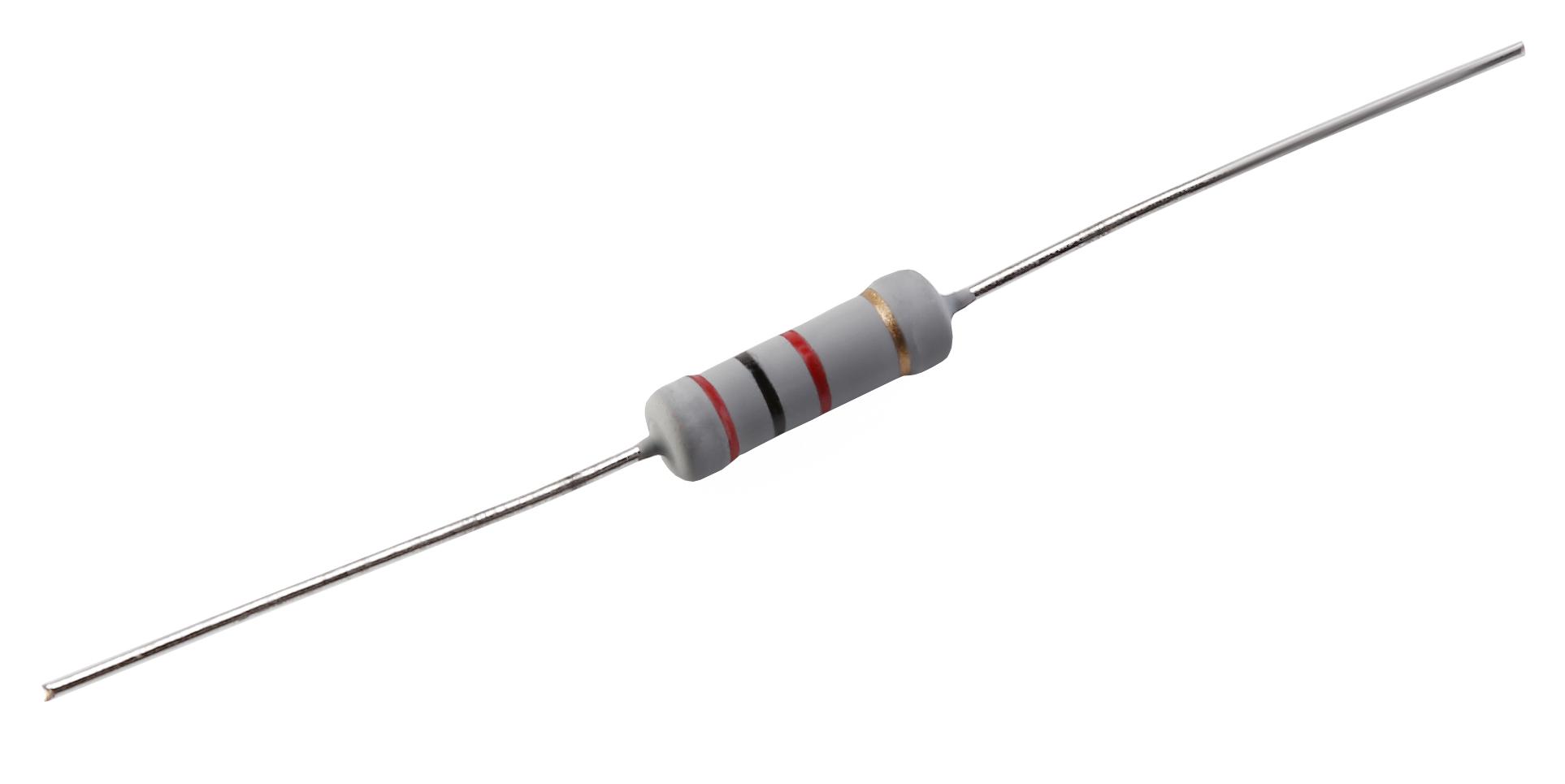

MULTICOMP PRO MP006470 metal oxide film resistor
High-reliability axial leaded metal oxide film resistor suitable for industrial and electronic applications. Offers stable resistance, high surge capability, and excellent long-term stability. Features a power rating of 1W, resistance value of 9.1K, and tolerance of ±2% with a temperature coefficient of +200PPM/°C. Constructed with a ceramic rod, tinned iron caps, and a non-flame paint coating for safety and durability. Ideal for telecommunication, medical equipment, and automation systems requiring precise and stable resistors.
MULTICOMP PRO MP006470 metal oxide film resistor Specifications:
- Power Rating: 1W
- Resistance: 9.1KΩ
- Tolerance: ±2%
- Temperature Coefficient: +200PPM/°C
- Operating Voltage: 60V
- Overload Voltage: 150V
- Resistance Range: 1Ω to 3.9MΩ
- Dielectric Resistance: >10000MΩ
- Solderability: 95% min. coverage at 260°C for 3-4 seconds
- Endurance: ±1.5% after 1000 hours at RCWV with 70±2°C
- Insulation Resistance: >10000MΩ
- Terminal Strength: Tensile 2.5kg
- Body Colour: Grey
- Construction: Ceramic rod with metal oxide film coating
- Environmental Tests: Damp heat with load, short-time overload, pulse overload
Buy the Multicomp Oxide Film Resistor – Reliable 9.1K for Industrial Applications
Purchase the high-quality metal oxide film resistor online now to ensure reliable performance in your electronic projects. Designed for stability, surge capability, and long-term durability, this 1W resistor with a resistance of 9.1K ohms and ±2% tolerance meets the demands of industrial, telecommunication, and medical applications. Its ceramic and metal oxide construction ensures excellent thermal stability and mechanical resilience. Easy to install and suitable for critical high-reliability circuits, this resistor is the ideal choice for engineers and technicians seeking dependable components for sophisticated electronic systems.
Get Multicomp MP006470 today—built for precision and long-lasting durability in electronic circuits and industrial systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP006470?
You can click on the BUY or RFQ button to purchase MP006470 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP006470?
You can download the MP006470 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP006470?
MULTICOMP PRO
