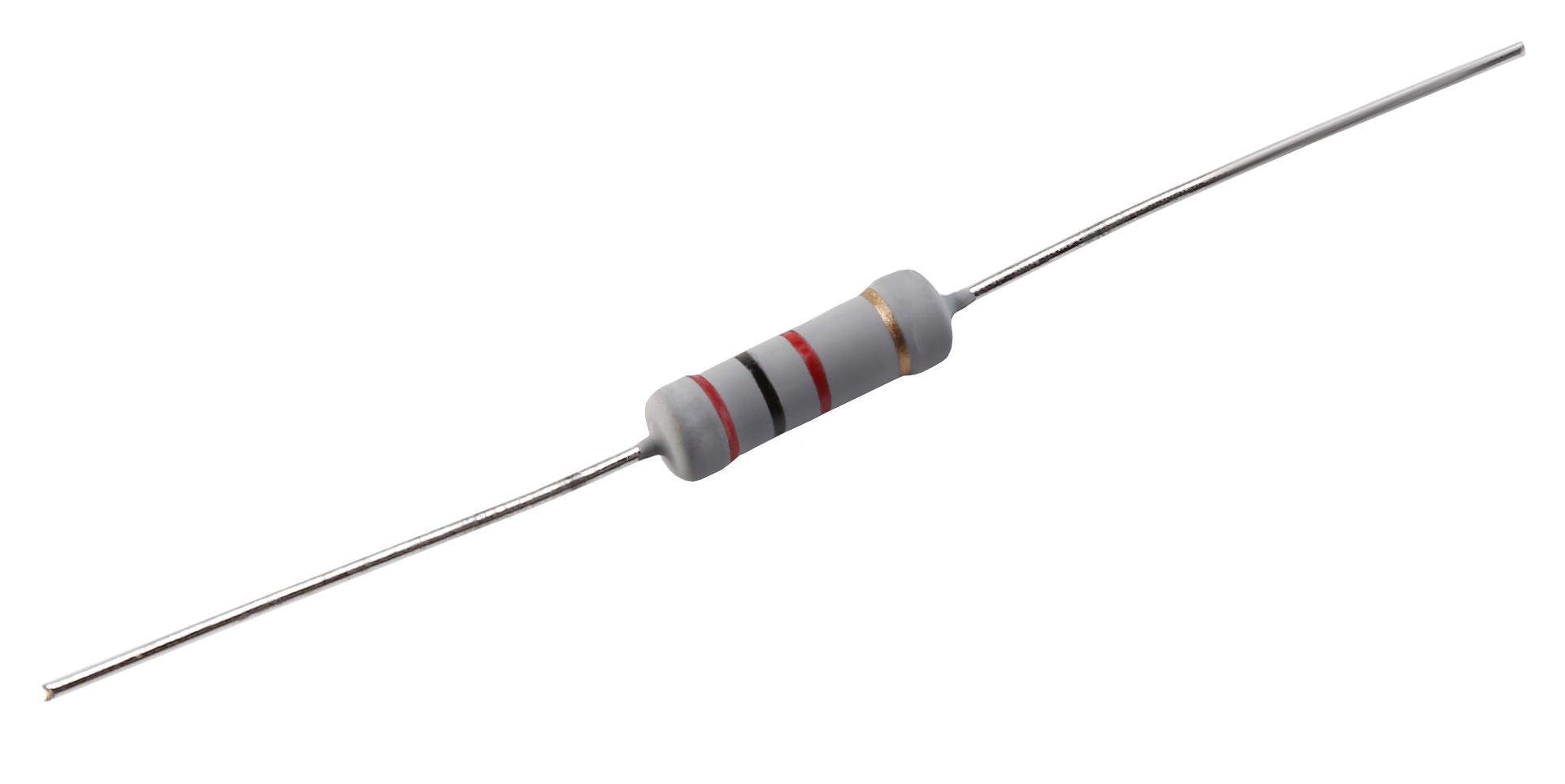

MULTICOMP PRO MP006471 Metal Oxide Film Resistor
The axial leaded metal oxide film resistor is a high-reliability electronic component designed for precision applications. With a power rating of 1 watt, it offers resistance options ranging from 1 ohm to 10 megaohms, with tolerance levels of ±2% and temperature coefficient of ±200PPM/°C. Features include excellent stability, overload and surge capacity, and adherence to RoHS compliance. Its robust construction with ceramic rod, tinned iron caps, and metal oxide film ensures long-term electrical and mechanical stability in various industrial and electronic circuits.
MULTICOMP PRO MP006471 Metal Oxide Film Resistor Specifications:
- Power Rating: 1W
- Resistance Range: 1Ω to 10MΩ (1000Ω to 10,000,000Ω)
- Tolerance: ±2%
- Temperature Coefficient: ±200PPM/°C
- Dielectric Resistance: >10000MQ
- Operating Voltage: 60V to 500V, depending on resistance
- Overload Voltage: 2.5×(P×R) or maximum listed voltage
- Endurance Testing: 70+2°C RCWV for 1000 hours
- Damp Heat Resistance: 4022°C, 90-95% R.H. for 1000 hours
- Solderability: 95% min. coverage at 260±5°C for 3.4±0.5 seconds
- Temperature Coefficient: ±200PPM/°C
- Insulation Resistance: >10,000MQ
- Terminal Strength: Tensile 2-2.5kg
Buy the Multicomp Series Metal Oxide Film Resistor: MP006471
Secure your electrical projects with the reliable and precision-engineered Metal Oxide Film Resistor. Designed for stability and overload capacity, this 1W resistor offers resistance options from 1Ω to 10MΩ, ideal for industrial, telecommunication, and medical applications. With tolerance levels of ±2% and a temperature coefficient of ±200PPM/°C, it ensures consistent performance over time. Its high dielectric resistance and endurance withstand demanding conditions, making it perfect for long-term use. Purchase online today to benefit from fast delivery and competitive prices, ensuring your project’s success.
Order your Multicomp Series Metal Oxide Film Resistor MP006471 today and ensure your circuits have reliable, precise, and durable resistance performance.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP006471?
You can click on the BUY or RFQ button to purchase MP006471 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP006471?
You can download the MP006471 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP006471?
MULTICOMP PRO
