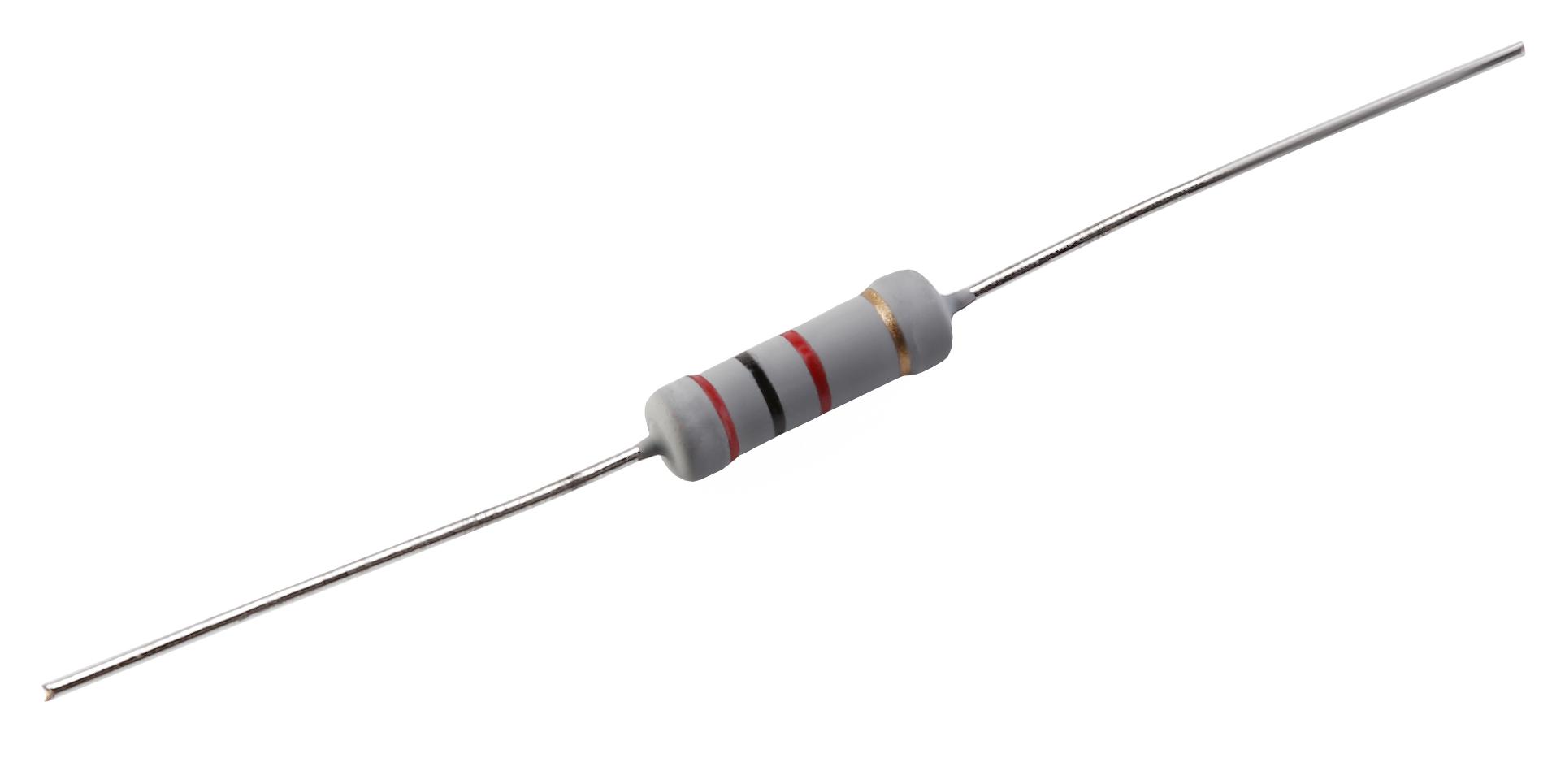

MULTICOMP PRO MP006477 metal oxide film resistor
These high-reliability axial leaded metal oxide film resistors are rated at 1 watt and are suitable for various industrial and electronic applications. They feature excellent long-term stability, high surge capability, and controlled temperature coefficients, making them ideal for telecommunication, medical equipment, and other demanding environments. Available in a range of resistance values from 1 ohm to 10 megaohms, these resistors comply with RoHS standards. They are designed for electrical and mechanical stability, with robust construction including ceramic rods, tinned iron caps, and color codes for easy identification.
MULTICOMP PRO MP006477 metal oxide film resistor Specifications:
- Power Rating: 1W
- Resistance Range: 1Ω to 10MΩ (see specific part numbers for details)
- Tolerance: +2% or +5%
- Temperature Coefficient: +200PPM/°C
- Dielectric Resistance: >10000MΩ
- Endurance: +1.5% after 1000 hours at RCWV
- Overload Voltage: 2.5× RCWV
- Operating Voltage: P×R or max listed voltage, whichever is lower
- Body Color: Grey (standard), Grey or Pink (high power)
- Body Material: Ceramic with metal caps and lead wire
- Solderability: 95% min. coverage at 260°C for 3.4 seconds
- Insulation Resistance: >10000MΩ
- Temperature Range: -55°C to +200°C
- Tensile Terminal Strength: 2-2.5kg
Buy the Multicomp Metal Oxide Film Resistor – Reliable Resistance Components for Industrial Applications
Enhance your electronic projects or industrial systems with our high-quality metal oxide film resistors. Rated at 1W, with resistance values from 1Ω to 10MΩ, they offer excellent long-term stability, high surge capacity, and controlled temperature coefficients. RoHS compliant, these resistors are perfect for telecommunication, medical equipment, and high-reliability applications. Designed for electrical and mechanical stability, they feature robust ceramic construction, tinned caps, and color codes for easy identification. Order online today for fast delivery and reliable performance in demanding environments.
Get Multicomp Metal Oxide Film Resistors today—built for precision, high stability, and durability in industrial environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP006477?
You can click on the BUY or RFQ button to purchase MP006477 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP006477?
You can download the MP006477 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP006477?
MULTICOMP PRO
