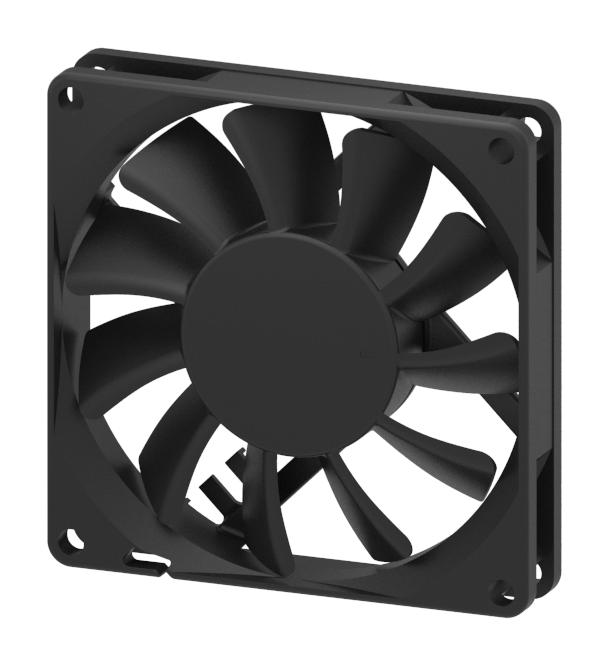

MULTICOMP PRO MP006484 Cooling Fan
This 24V DC brushless fan features a Vapo bearing system and an 80mm x 80mm x 15mm plastic frame, designed for reliable cooling in industrial applications. It operates within a voltage range of 8V to 27.6V DC, with a rated speed of around 2700 RPM and an airflow of 33.6 CFM. The fan provides low noise levels of 32 dB(A) and includes safety features like automatic restart and polarity protection. Its durable construction suits ventilation, cooling, and electronic equipment cooling needs, offering a lifespan of approximately 60,000 hours under optimal conditions.
MULTICOMP PRO MP006484 Cooling Fan Specifications:
- Motor Design: 2 phases, 4-poles Brushless DC motor
- Bearing System: Vapo bearing system
- Materials of Frame: Thermoplastic PBT of UL 94V-0
- Materials of Fan Blade: Thermoplastic PBT of UL 94V-0
- Direction of Rotation: Counter-Clockwise viewed from front
- Mounting Holes Diameter: 4.3 mm in 8 holes
- Weight: 68g
- Rated Voltage: 24V DC
- Rated Current: 65 mA / Max. 75 mA
- Rated Power Consumption: 1.56 Watts / Max. 1.8 Watts
- Operating Voltage Range: 8V DC to 27.6V DC
- Starting Voltage: 8V DC (25°C Power on/off)
- Operating Temperature Range: -10°C to +70°C
- Storage Temperature Range: -40°C to +70°C
- Rated Speed: 2700 RPM ±10%
- Air Flow: 33.6 CFM
- Static Pressure: 0.11 Inch-H2O
- Acoustic Noise: 32 dB(A)
- Insulation Class: UL Class A
- Dielectric Strength: AC 500V for 1 min between Housing and Lead Wire
- Life Expectancy: 60,000 hours at 40°C, 65% humidity, 90% CL.
- Protection: Automatic restart and polarity protection
Buy the Multicomp Vapo Bearing 80mm Fan – Reliable Cooling for Industrial Applications
Purchase the Multicomp Vapo Bearing 80mm fan online today for dependable cooling in your industrial projects. With a durable thermoplastic frame, reliable Vapo bearing system, and a lifespan of 60,000 hours, this fan ensures efficient airflow of 33.6 CFM and operates smoothly between 8V and 27.6V. Its low noise level of 32 dB(A) and safety features like automatic restart and polarity protection make it ideal for electronic equipment cooling, ventilation, and industrial systems. Buy now for quick delivery and trusted quality.
Order your Multicomp Vapo Bearing 80mm fan today and ensure efficient, low-noise cooling for your electronic and industrial systems.
