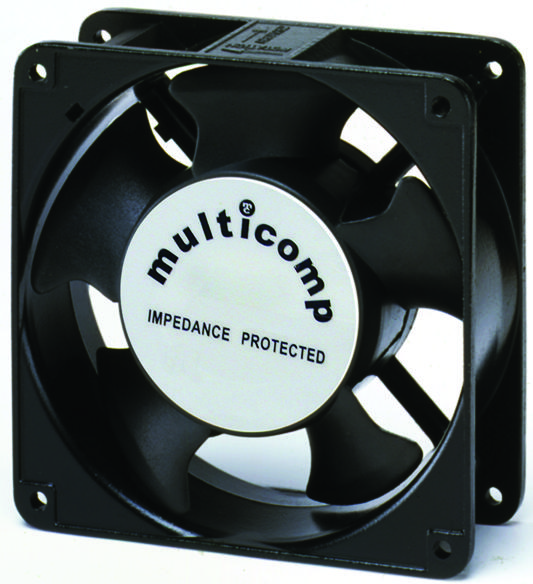

MULTICOMP-PRO MP006508 Axial Fan
The axial AC fan with ball bearing features a reliable shaded-pole motor design, operating at 115V AC with a power consumption of 20W. Its durable construction includes a die-cast aluminum frame and a thermoplastic impeller rated UL 94V-0. With a rated speed of approximately 2750/3050 RPM, it delivers an airflow of 87 to 107 CFM and static pressure up to 0.32 Inch-H2O. Capable of operating in temperatures from -40°C to +70°C, it is suitable for demanding cooling applications requiring high reliability and RoHS compliance.
MULTICOMP-PRO MP006508 Axial Fan Specifications:
- Rated Voltage: 115V AC 50/60 Hz
- Operating Voltage Range: 85-125V AC
- Rated Speed: 2750/3050 RPM + 7%
- Air Delivery: 87.0/107.0 CFM
- Static Pressure: 0.26/0.32 Inch-H20
- Rated Current: 0.21/0.18 AMP
- Rated Power: 20.00/18.00 Watts
- Noise Level: 45.0/50.0 dB(A)
- Bearing System: Precision ball bearing
- Material: Frame die-cast aluminum, impeller thermoplastic PBT UL 94V-0
- Dimensions: 120mm x 120mm x 38mm
- Operating Temperature: -40°C to +70°C
- Storage Temperature: -40°C to +70°C
- Vibration: 1.5G acceleration, 5-50 Hz in X, Y, Z axes
- IP Rating: IP55 according to IEC 60529
- Safety Certifications: UL, TUV, CE
Buy the Buy Multicomp Pro Axial AC Fan Part Number MP006508 Online
Securely purchase the high-performance axial fan with ball bearing systems online. Featuring 115V operation, 120mm size, and durable aluminum and thermoplastic construction, this fan is ideal for reliable cooling in industrial environments. Its high airflow rate of up to 107 CFM, static pressure of 0.32 Inch-H2O, and safety certifications ensure optimal performance and safety. Perfect for demanding applications, the fan operates efficiently at temperatures from -40°C to +70°C. Buy now for fast delivery and trusted quality.
Order your Multicomp Pro Series MP006508 axial ball bearing fan today and enhance your cooling solutions with dependable air flow and high durability.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MP006508?
You can click on the BUY or RFQ button to purchase MP006508 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MP006508?
You can download the MP006508 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MP006508?
MULTICOMP-PRO
