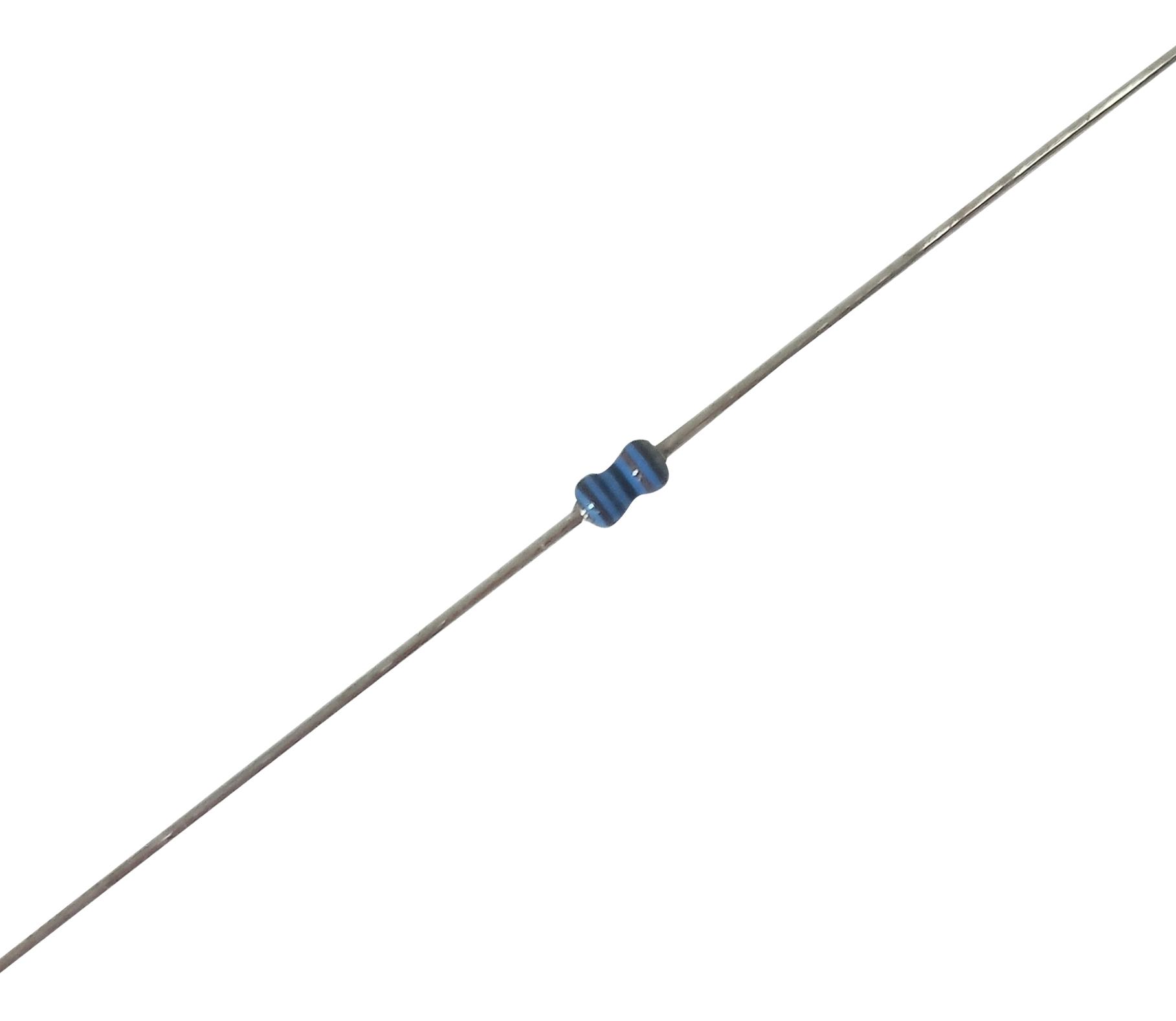

MULTICOMP-PRO MP006662 metal film resistor
These axial leaded metal film resistors are ideal for precise electronic circuits and industrial applications. With a power rating of 1/8W, they feature excellent stability, low noise, and high accuracy with resistance tolerances of ±2%. Constructed with metal film technology, they offer high insulation resistance and temperature stability from -55°C to +155°C. Suitable for whole-range voltage applications up to 200V, these resistors are robust, flame-resistant, and designed for reliable performance in demanding environments.
MULTICOMP-PRO MP006662 metal film resistor Specifications:
- Type: Metal Flim
- Rated Power: 1/8W (0.125W)
- Max. Working Voltage: 200V or VPxR whichever lesser
- Max. Overload Voltage: 400V or 2.5VPxR whichever lesser
- Dielectric Withstanding Voltage: 200V
- Operating Temp. Range: -55°C to +155°C
- Resistance Range: 12.2Ω to 1MΩ
- Resistance Tolerance: ±2%
- Temperature Coefficient: +50 PPM/°C Max.
- Insulation Resistance: ≥10,000 Moות
- Dimensions: Diameter 2.2mm to 4mm, Length 28mm
- Construction: Ceramic rod body, metal film resistor, tin-plated steel end caps
- Solderability: ≥95% coverage at 245°C for 2-3 seconds
- Mechanical: Resistance to overload, twist, and load life
Buy the Multicomp Metal Film Resistor – Reliable Resistance Components for Industrial Applications
Upgrade your electronic projects with our high-quality axial metal film resistors. Designed for durability and precision, these resistors support up to 200V and operate from -55°C to +155°C. With a power rating of 1/8W and resistance tolerances of ±2%, they are ideal for industrial automation, control systems, and electronics manufacturing. Easy to solder, flame-resistant, and built with reliable materials, these resistors ensure stable performance under demanding conditions. Purchase online now for quick delivery and consistent quality.
Order your Multicomp series MP006662 axial metal film resistor today and enhance your circuits with dependable, high-precision performance.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MP006662?
You can click on the BUY or RFQ button to purchase MP006662 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MP006662?
You can download the MP006662 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MP006662?
MULTICOMP-PRO
