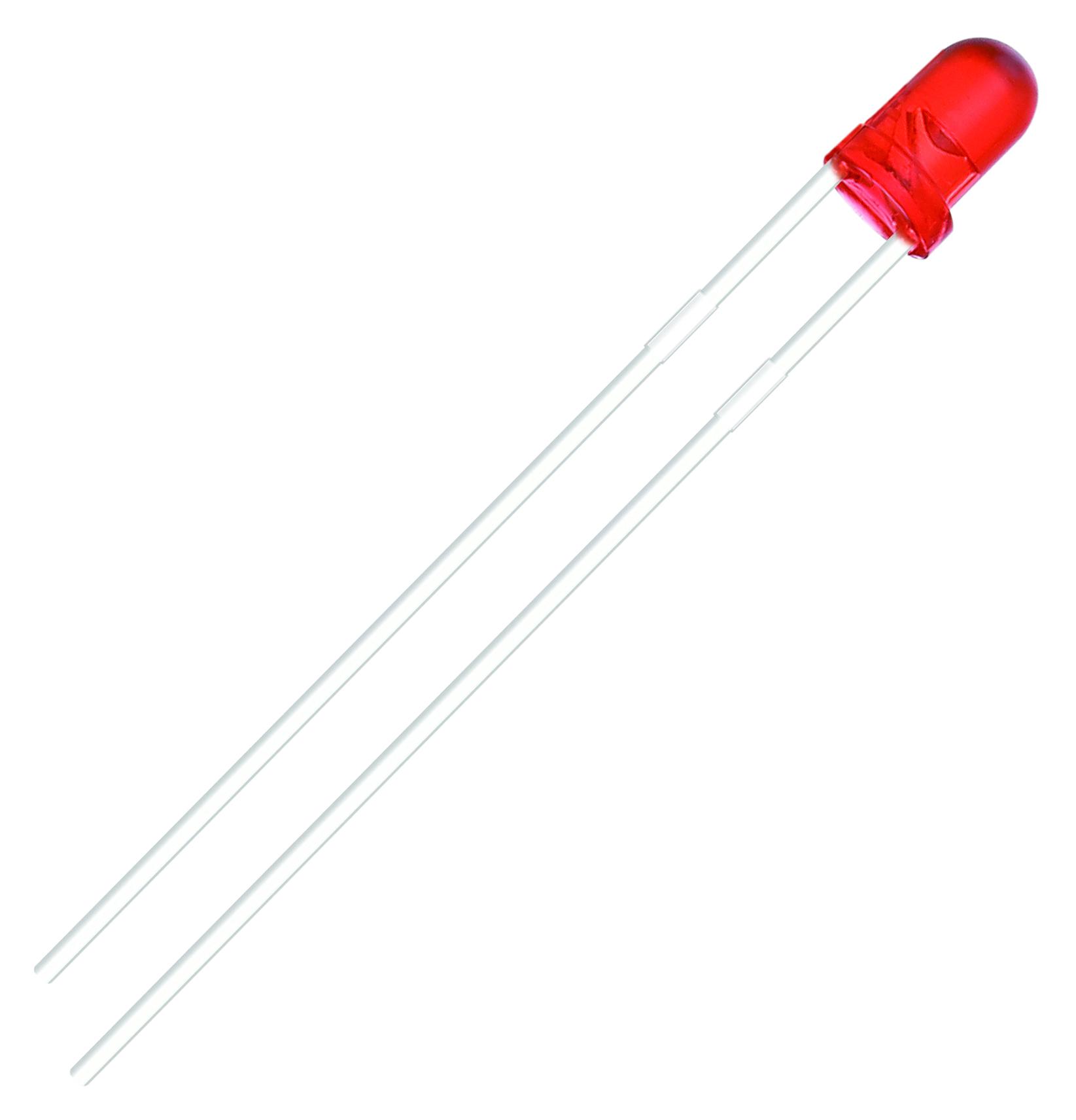

MULTICOMP PRO MP006835 Red Indicator LED
This 3mm round red LED features a super red emission at 650 nm with a 30° viewing angle, ideal for indicator and display applications. It has a luminous intensity of 400 mcd and a typical forward voltage of 1.9 V at 20 mA. The LED operates within a temperature range of -40°C to +85°C and a storage range of -40°C to +100°C. It supports high reliability, RoHS compliance, and is suitable for applications requiring durable, bright, stable illumination, and efficient performance. Soldering should follow specified conditions for best results.
MULTICOMP PRO MP006835 Red Indicator LED Specifications:
- Package Size: 3mm round LED lamp
- Peak Wavelength: 650 nm
- Emitted Colour: Super Red
- Viewing Angle: 30 degrees
- Luminous Intensity: 400 mcd
- Forward Voltage: 1.8 - 2.2 V
- Peak Emission Wavelength: 650 nm
- Dominant Wavelength: 635-645 nm
- Spectral Half-Width: 20 nm
- Forward Current: 30 mA (recommended), 100 mA (peak)
- Power Dissipation: 85 mW
- Operating Temp Range: -40°C to +85°C
- Storage Temp Range: -40°C to +100°C
- ESD: 2000 V
- Soldering: Reflow 260°C for 5 sec, Hand 350°C for 3 sec
Buy the Multicomp Red 650nm – Reliable Indicator LEDs for Industrial Applications
Order the multicomp red indicator LED now to upgrade your electronic projects with a bright, reliable, and efficient 650 nm emission LED. Designed for durability and high performance, this 3mm round LED with a 30° viewing angle ensures excellent visibility in indicator and display applications. It features a peak luminous intensity of 400 mcd, a forward voltage of about 1.9 V at 20 mA, and operates across a temperature range from -40°C to +85°C. Perfect for industrial, consumer, and control systems, this RoHS-compliant LED guarantees long-lasting performance, easy installation, and consistent brightness. Enhance your projects by purchasing online today.
Buy multicomp red 650nm indicator LED now and experience unmatched reliability and performance for your industrial and display applications.
