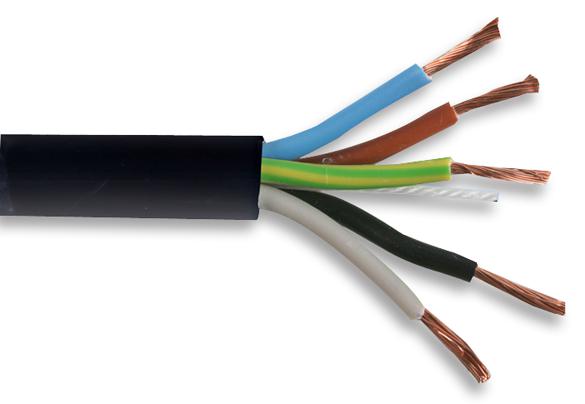

MULTICOMP PRO 3185Y150MMBLK PVC Insulated Mains Cable
The MULTICOMP PRO 3185Y series PVC insulated mains cable is a versatile solution for power supply wiring in a variety of applications. Constructed with plain annealed copper wire, PVC insulation, and a PVC sheath, this cable provides excellent electrical insulation and durability. It is ideal for indoor use in small electrical instruments, portable tools, and other general-purpose applications. The cable's flexible design and robust construction ensure reliable performance and ease of installation. With a voltage rating of 300/500V and an operating temperature range of -15°C to +70°C, this cable is suitable for a wide range of environments.
MULTICOMP PRO 3185Y150MMBLK PVC Insulated Mains Cable Specifications:
- insulation_sheath_material: PVC
- insulation_colour: Blue, Brown, Yellow/Green Stripe, Black & Grey
- sheath_colour: Black
- voltage_test: Core to Core: 1,500V AC / 1min
- voltage_rating: 300/500V
- operating_temperature: -15°C to +70°C
- inner_diameter: 2.9mm
- outer_diameter: 7.4mm
- min_bend_radius: 74mm
- nominal_dc_resistance: 13.3Ω/km
- current_rating: 15A
- stranding: 30/0.25mm
- filler_material: PVC
