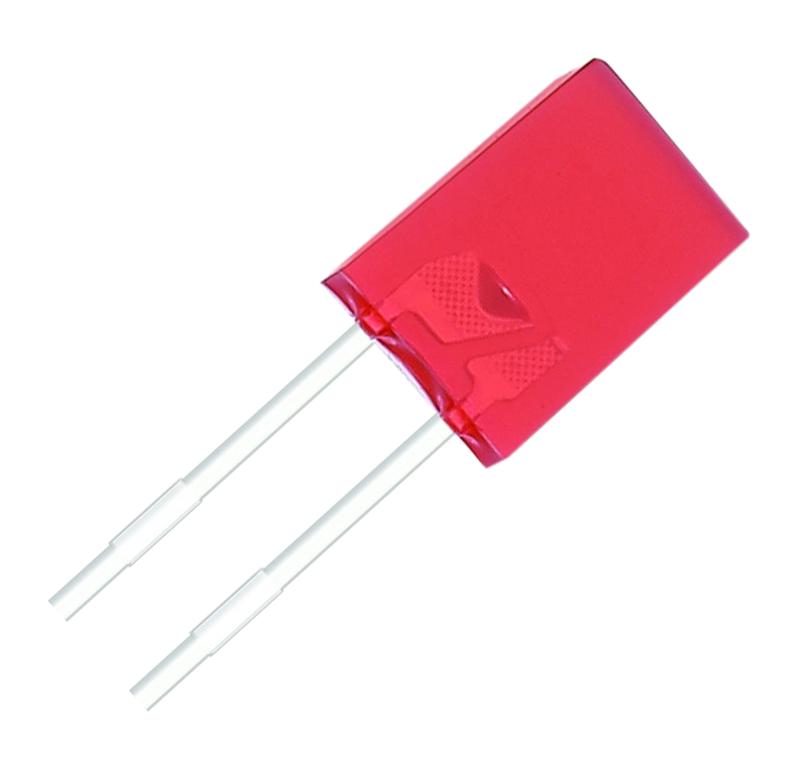

MULTICOMP PRO MP006839 Rectangular LED
This 2mm x 5mm flangeless rectangular LED emits a vibrant red light at 650nm with a 120-degree viewing angle, designed for industrial and electronic applications. It features AllnGaP dice material, RoHS compliance, and offers high reliability with a power dissipation of 85mW, a recommended operating current of 30mA, and an operating temperature range from -40°C to +85°C. Suitable for various electronic circuits, it ensures uniform luminance and color, with protection against ESD and over-current damage. Easy to solder with specified reflow and hand soldering conditions, making it ideal for indicator and display uses.
MULTICOMP PRO MP006839 Rectangular LED Specifications:
- Package Size: 2mm x 5mm flangeless rectangular LED lamp
- Peak Wavelength: 650 nm
- Viewing Angle: 120 degrees
- Luminous Intensity: 45 mcd (typical)
- Forward Voltage: 1.8 - 2.2 V
- Recommended Operating Current: 30 mA
- Power Dissipation: 85 mW
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +100°C
- Maximum Peak Forward Current: 100 mA (duty 1/10 @ 1kHz)
- Electrostatic Discharge (ESD) withstand: 2000 V
- Lead Soldering Temperature: 260°C for 5 sec (reflow), 350°C for 3 sec (hand solder)
- RoHS Compliant, AllnGaP dice material, UL94V-0 flammability rating
- Designed for indicator lighting, displays, and electronic signaling
Buy the Multicomp PRO MP006839 – Reliable Red Rectangular LED for Industrial Applications
Order the Multicomp PRO rectangular LED with 2mm x 5mm flangeless design in vibrant red. Excellent for indicator lights and electronic displays, this RoHS-compliant LED offers high reliability with a luminous intensity of 45mcd, a peak wavelength of 650nm, and a wide viewing angle of 120°. It features a low forward voltage of 1.8V, supports currents up to 30mA, and withstands harsh conditions from -40°C to +85°C. Perfect for industrial and electronic integration, it ensures stability, brightness, and durability for your projects.
Get Multicomp PRO MP006839 today—built for precision, high reliability, and long-lasting durability in electronic displays.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP006839?
You can click on the BUY or RFQ button to purchase MP006839 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP006839?
You can download the MP006839 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP006839?
MULTICOMP PRO
