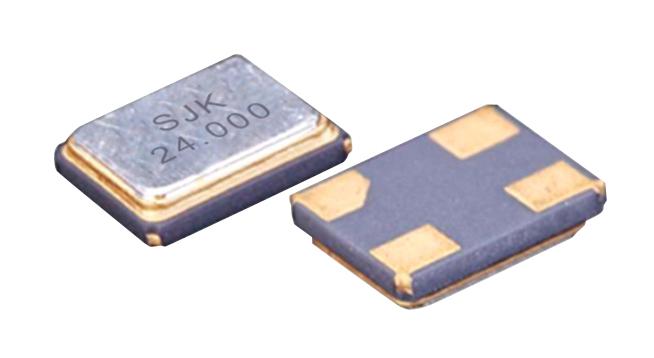

MULTICOMP PRO MP007037 SMD Crystal
This SMD crystal offers a high-precision, reliable solution for wireless communication devices, smartphones, and wearable technology. With dimensions of 1.6mm x 1.2mm x 0.35mm and a frequency range from 24MHz to 32MHz, it ensures high frequency stability over temperature and aging. Its RoHS compliance and suitability for automatic reflow soldering make it ideal for compact electronic assemblies, demanding low profile and accurate oscillation components.
MULTICOMP PRO MP007037 SMD Crystal Specifications:
- Dimensions: 1.6mm x 1.2mm x 0.35mm
- Frequency Range: 24 MHz to 32 MHz
- Frequency Tolerance: ±10ppm at 25°C
- Frequency Stability: +10ppm over operating temperature
- Operating Temperature Range: 1-20°C to +70°C
- Shunt Capacitance: 5pF Max
- Load Capacitance: 8pF to 12pF
- Aging: ±3ppm/year Max
- Equivalent Series Resistance: 24MHz-27MHz ~ 1000Ω Max; 32MHz ~ 800Ω Max
- RoHS Compliant
- Suitable for automatic mounting and reflow soldering
Buy the Multicomp Series SMD Crystal: MP007037
Enhance your electronic projects with the high-precision SMD Crystal MP007037. Featuring a compact 1.6mm x 1.2mm x 0.35mm size, it delivers stable frequency performance from 24MHz to 32MHz. Its RoHS compliance and suitability for automatic mounting make it perfect for wireless, smartphone, and wearable applications. Offering excellent temperature stability, low aging, and reliable environmental resistance, this crystal ensures durability and accurate oscillation in challenging conditions. Purchase online today for dependable performance in your latest designs.
Order your Multicomp Series SMD Crystal MP007037 today and ensure precise oscillation for your compact electronic devices.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP007037?
You can click on the BUY or RFQ button to purchase MP007037 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP007037?
You can download the MP007037 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP007037?
MULTICOMP PRO
